LAS/VAS Auxiliary Section Removal and Disassembly | Service Procedures TRSM0940

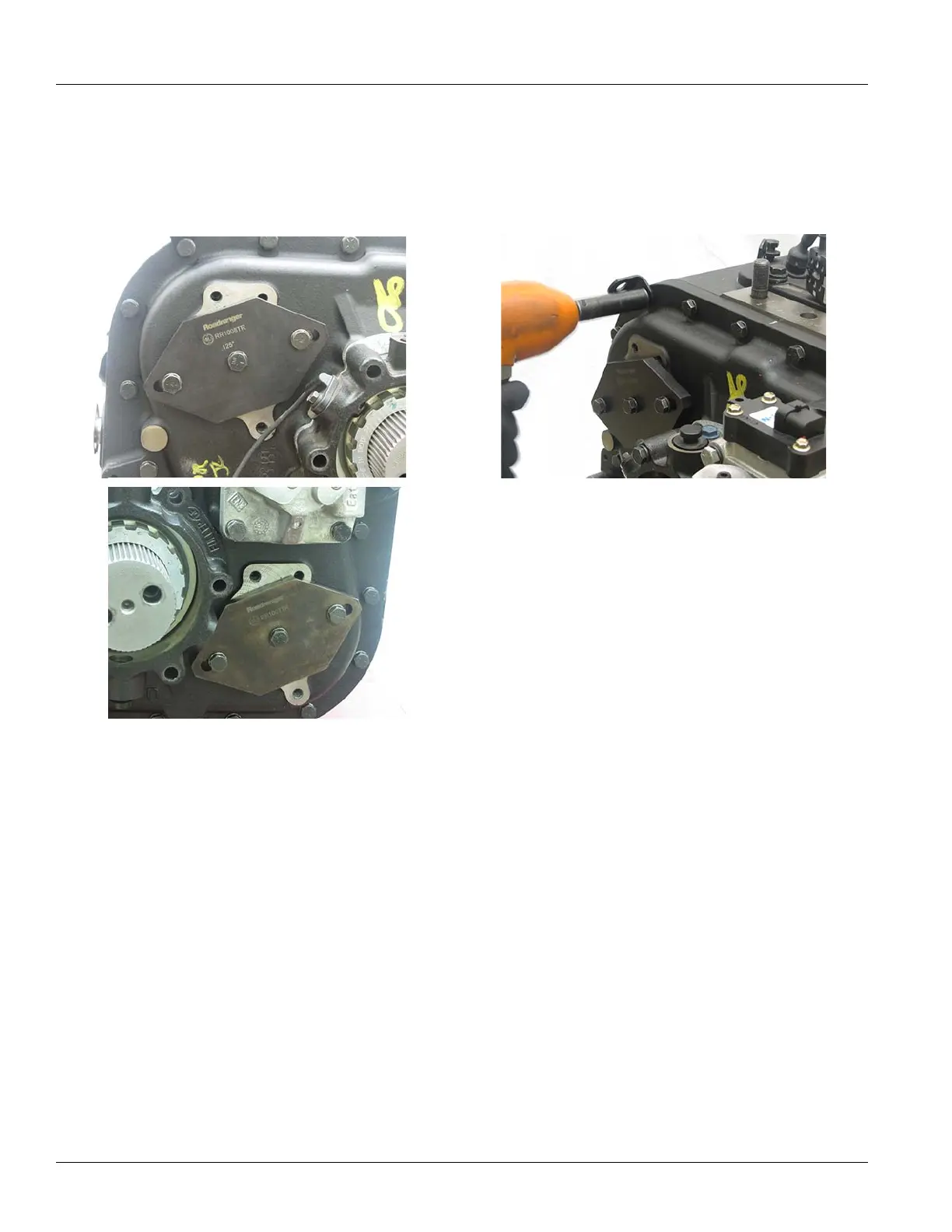

2. Install Auxiliary Counter Shaft Support Straps using
bolts 3 out of the 4 bolts for the Auxiliary Counter Shaft
Bearing Covers. Use the longer bolts to secure the cen-
ter of each strap as this will
ensure the Auxiliary
Counter Shafts will remain in time.
3. Remo
ve the 19 bolts that fasten the Auxiliary Section
to the Transmission Main Case.
Note: Remove the Range Cylinder Assembly, if needed,
in order to
remove all Auxiliary Case bolts.
