TRSM0940 Service Procedures | LAS/VAS Auxiliary Section Removal and Disassembly

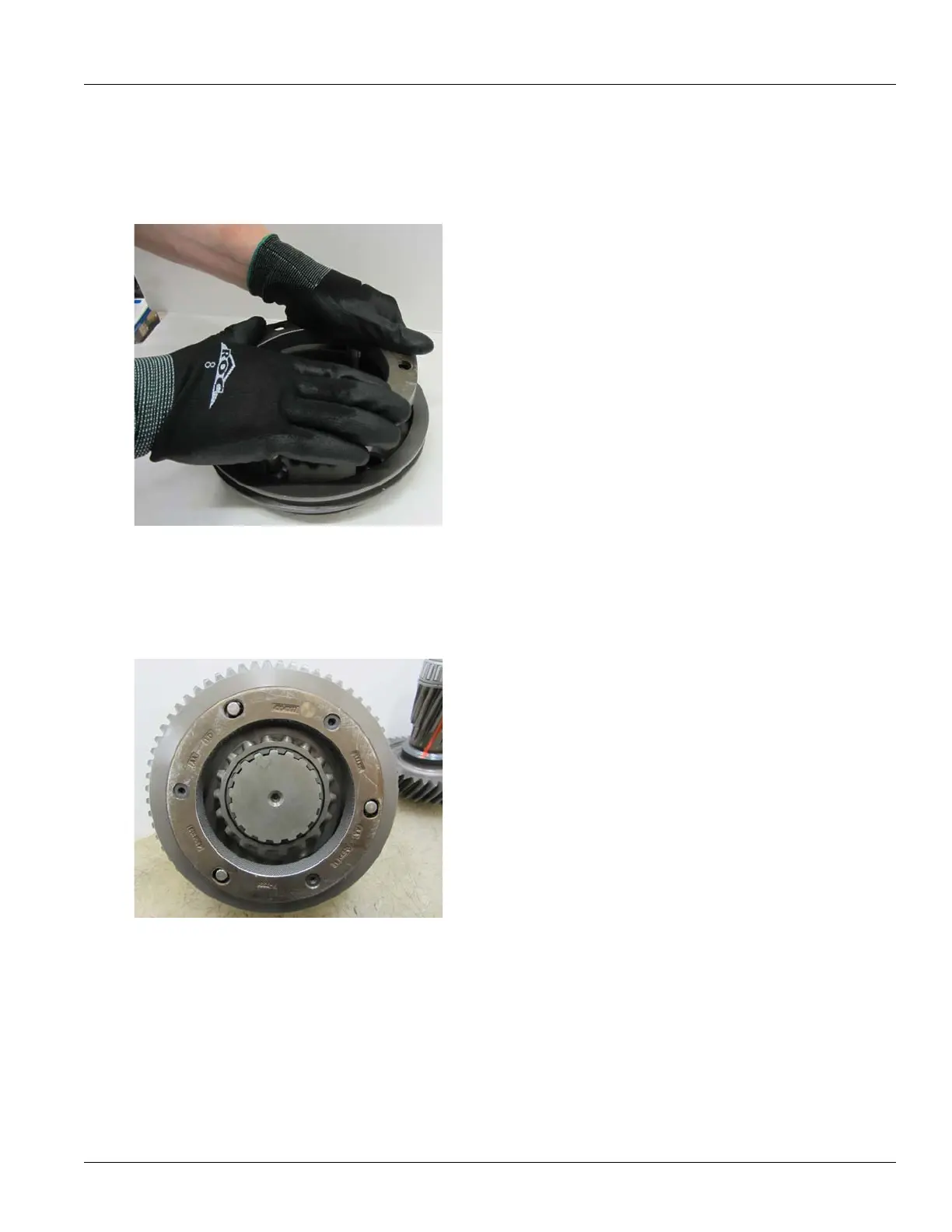

4. Apply downward pressure to the High Range Synchro-
nizer Ring while twisting counterclockwise to com-
press the springs and fully seat the ring on the Blocker
Pin
s of the Low Range Synchronizer.
5. Install the
Synchronizer assembly on the splines of the
Auxiliary Main Shaft with the Synchronizer seated
against the Range Reduction Gear.
