LAS/VAS Auxiliary Section Assembly and Installation | Service Procedures TRSM0940

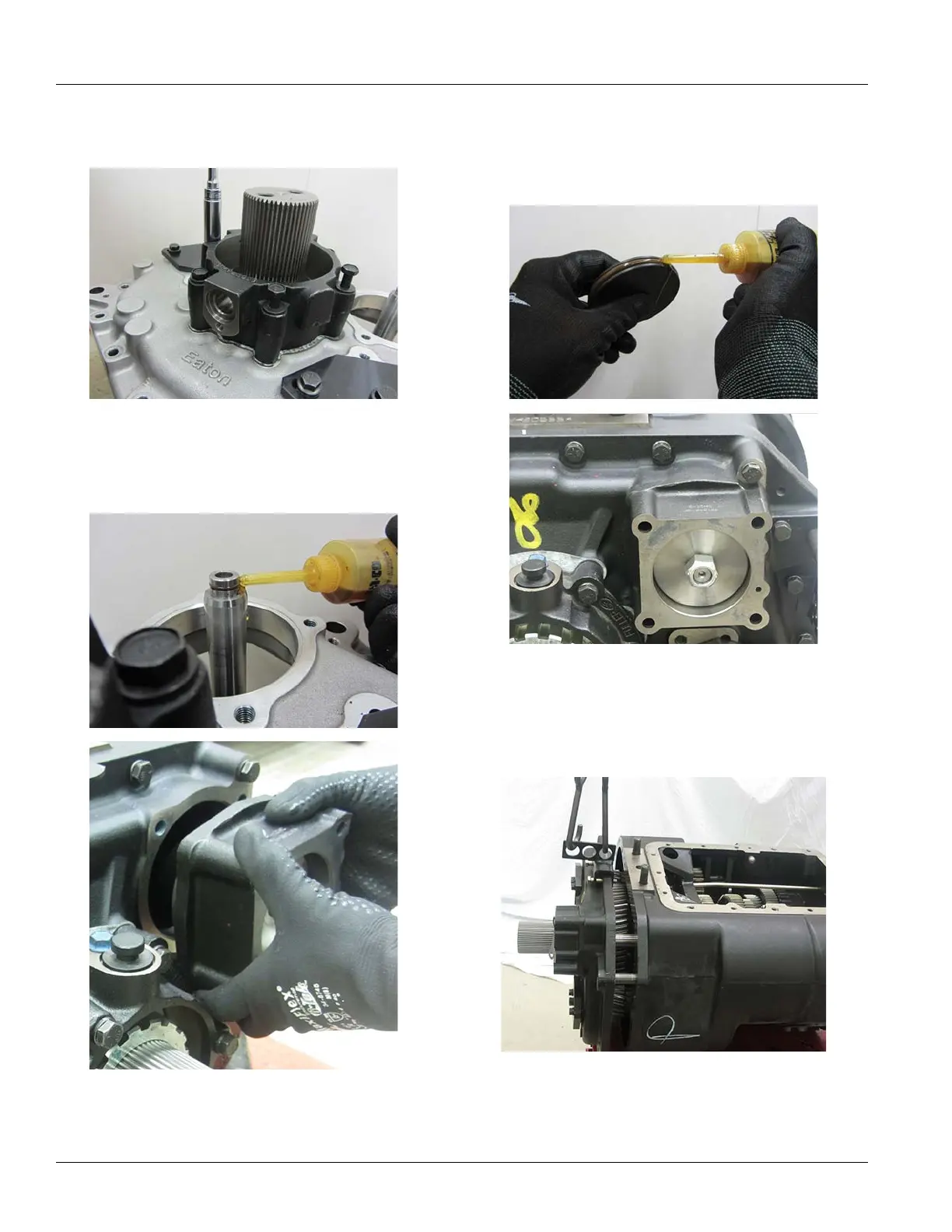

12. Install the Output Shaft Bearing Cover and gasket.
13. Ap
ply lube to the o-ring on the Range Shift Fork Shaft
and Range Cylinder O-ring, install the Range Cylinder.
14. Apply
lube to the Range Piston O-ring, install piston
into the Range Cylinder. Install the Range Piston cap
screw and torque to 20–25 lb-ft.
15. If
the Main Case gearing does not need to be serviced,
attach the Auxiliary Section Lifting Bracket to the top of
the Auxiliary Case.
