TRSM0940 Service Procedures | Range Cylinder LAS/VAS Model Rebuild – In Chassis

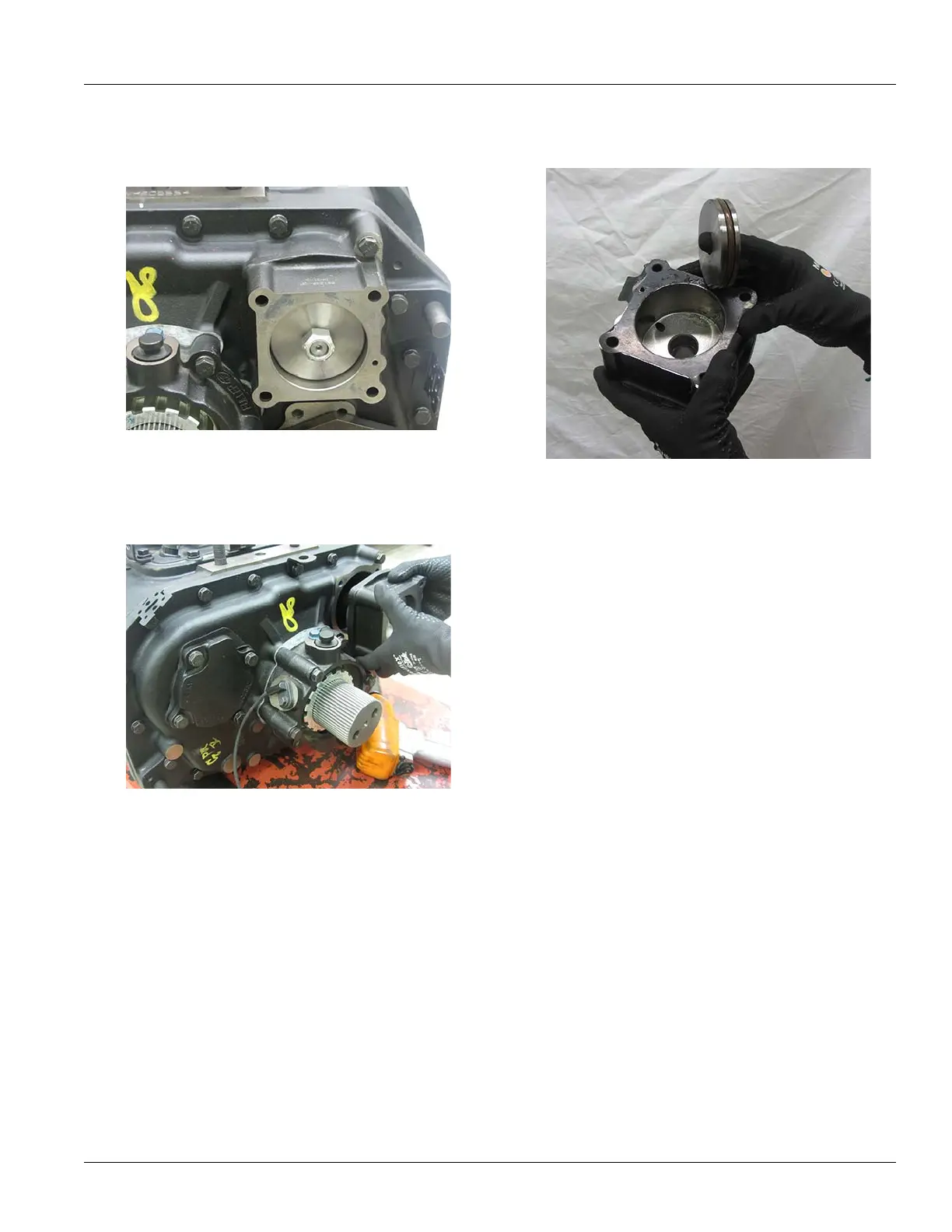

6. Remove the retaining bolt for the Range Cylinder Pis-
ton.
7. Remove
the Range Cylinder and piston from the Auxil-
iary Case.
8. Remove the piston from the
Range Cylinder.
9. Inspect for
cut O-rings, rust or debris in the cylinder,
scoring, and blocked air passages.
