Ecoray HF-525Plus - Page 152

152
Technical Publication Document NO: SYSTEM-007-ENG (Ver.1.1)
HF-525Plus Installation, Operation and Service Manual
●The indication of “No 2” is only used in the manufacturing process (see No 2of the above fig).
●The “Slice” indicates the number of X-ray exposures (see No 3of the above fig).
●The “HV, BC” indicates the DAC values of kV and mA (see No 4of the above fig). HV means kV of the
DAC and BC means mA of the DAC.
●The “kV, mA” indicates the detected values of kV and mA on a high voltage Tans former (see No 5of
the above fig). It is detected by a detection circuit.
●The indication of “No 6” indicates the fixed 4.1 for calibration (see No 6of the above fig).
●The “Reset” is only used in the manufacturing process (see No 7of the above fig).
●The indication of “No 8” indicates the firmware version of MiO board (see No 8of the above fig)
● MiO board means a “Main Input & Output Board” of generator
NOTE▶
The “Store” indicates the function for saving data (see No 9of the above fig).

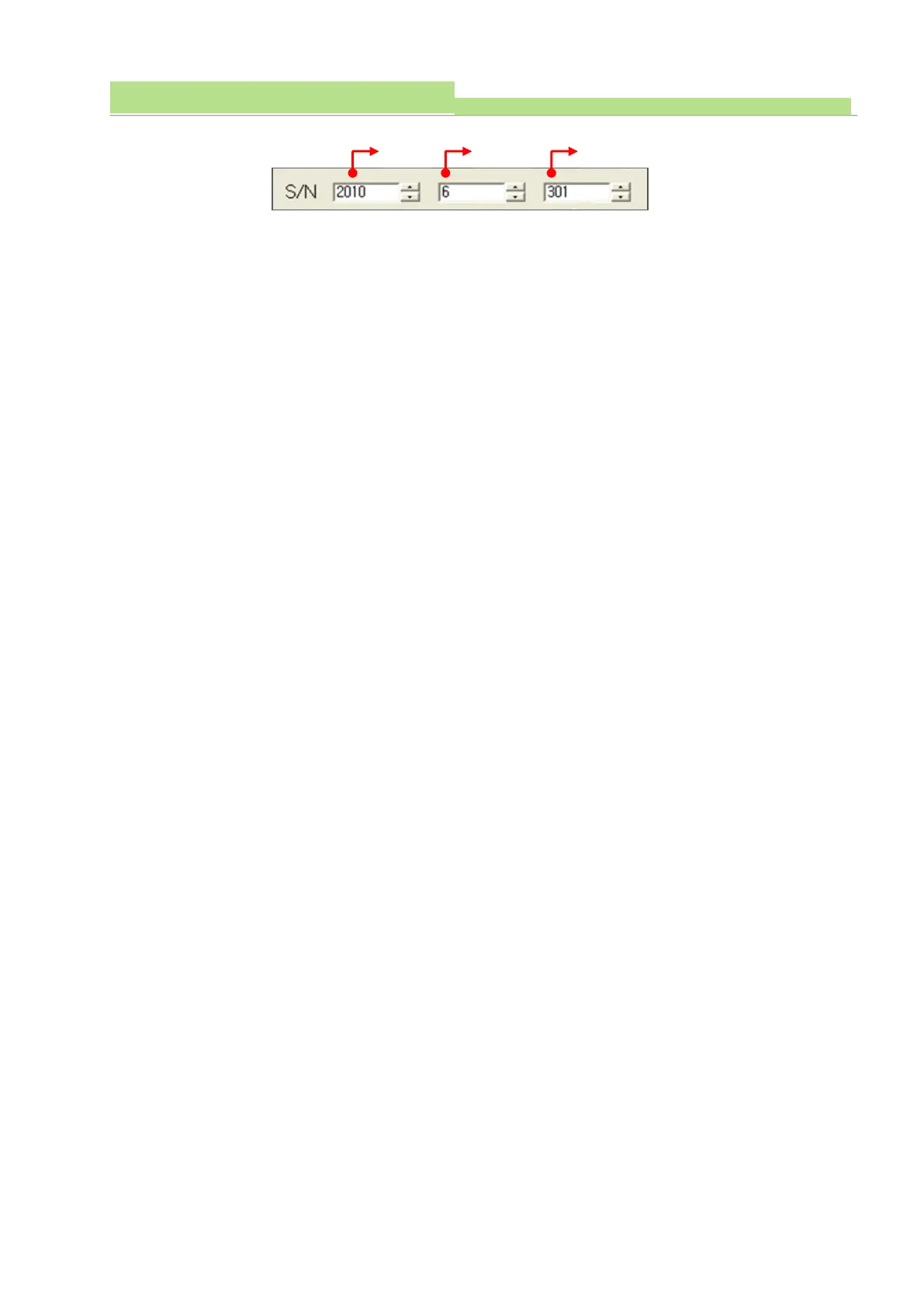

Year
Mont
h
Identification
