Technical Publication Document NO: SYSTEM-007-ENG (Ver.1.1)
HF-525Plus Installation, Operation and Service Manual
12

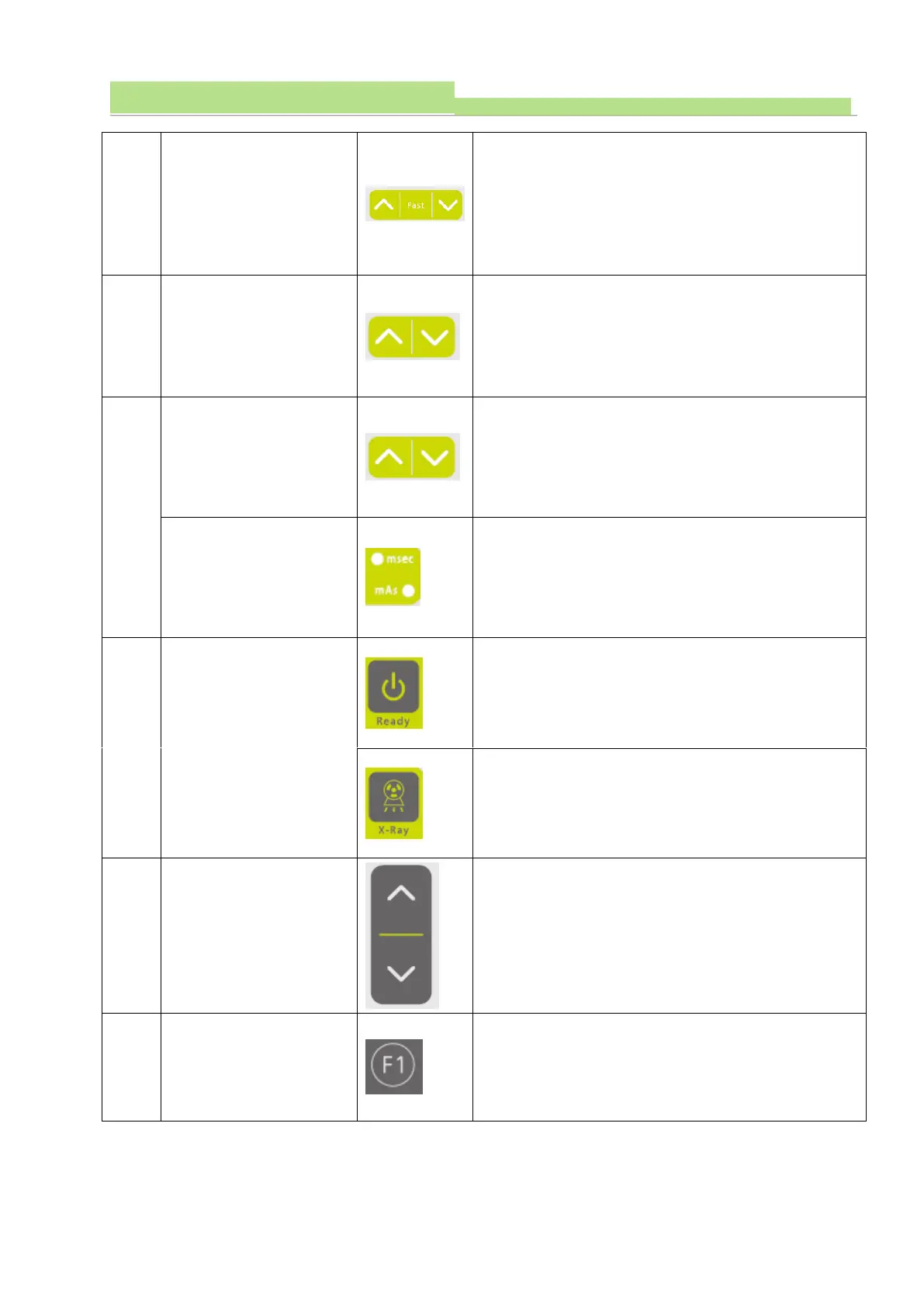

KV control
Adjust kV value here. (from 40 to 125) changing fast
with FAST key together.
13
mA control
Adjust mA value here (from 10 to max. 1000mA) Max.
mA is different from generator specification.
14
Time/mAs control
Adjust Time or mAs value to increase/decrease.
Time / mAs display
(selectable button)
Determine the display of time (msec) or mAs value.
15
Ready, X-Ray button
Making X-ray Ready (Prep) – this makes the Tube
filament ready and anode rotating.
The LED turns green when it is completely ready for
EXP..
Making X-Ray shoot (EXP) as long as you hold the
button. The yellow LED light goes on during radiation.
16
Setup menu selection
Can select each menu (function) in Console setup.
17
Function keys
Body size selectable (S, M, L, Aux) in APR.
