HF-525Plus Installation, Operation and Service Manual
Extra selection (if required, please program it)
● No.3
(1) Sub body part selection.
(2) Main body part should be selected first.
(3) F3 can change to select, and icons are appearing on the screen.
● No.4
(1) Direction for exam.
(2) This will define the radiation direction for making proper images. The selectable directions are AP,
PA, LAT, OBL.
(3) F4 key can change for selection. (as below table)

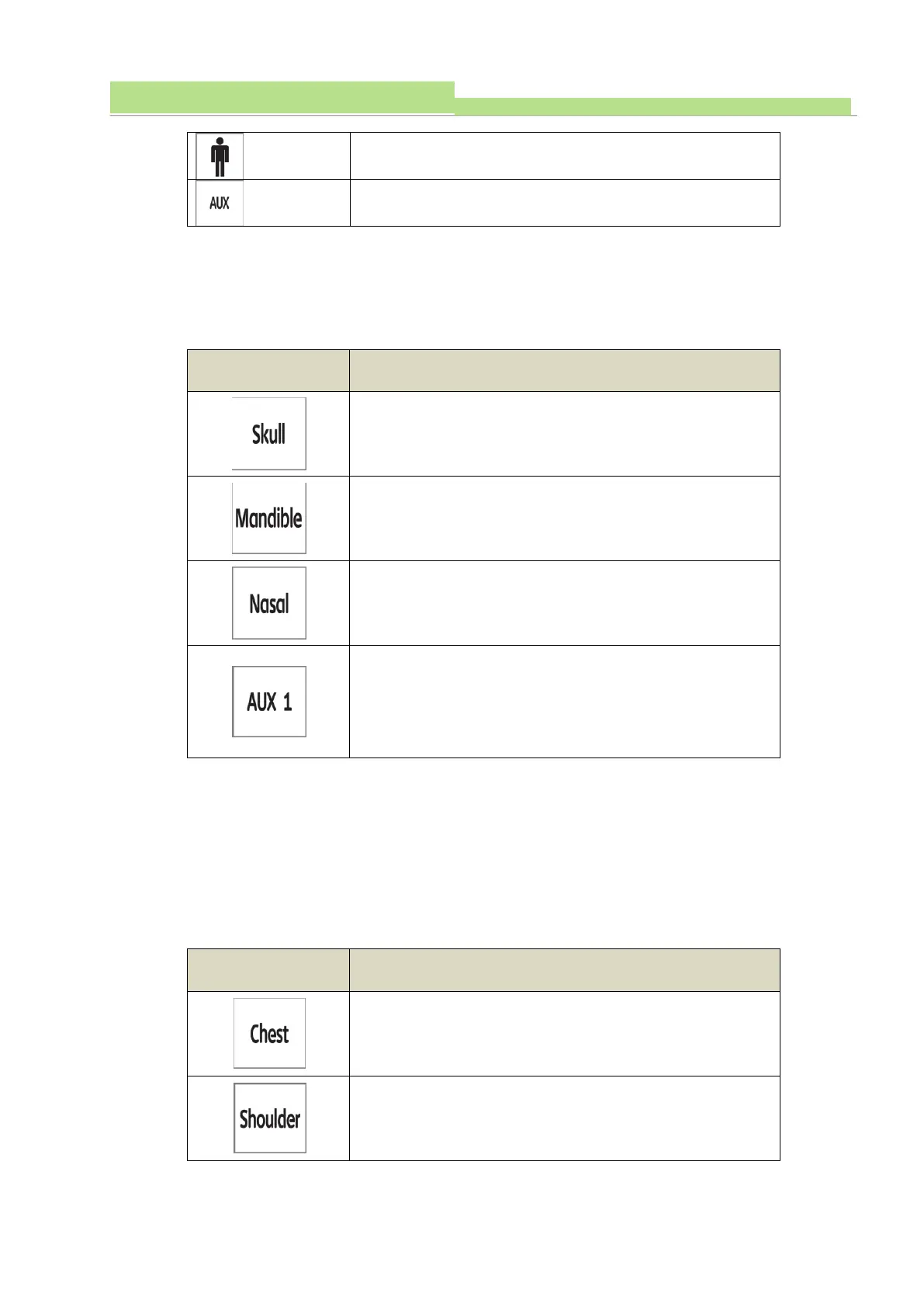

Select ‘Skull’ in top menu, and press F3 to fix it at Skull then
the selected body part appears on LCD screen.
When the main body part (Skull) is selected, press F3 to
find ‘Mandible’ and the icon appears on LCD screen.
When the main body part (Skull) is selected, press F3 to
find ‘Nasal’ and the icon appears on LCD screen.
Select ‘Skull’ in top menu, and press F3 to fix it at ‘AUX1’
then the selected body part appears on LCD screen.
AUX1 is the category that users can program additional
desired parameters for APR.
Select ‘Chest’ in top menu, and press F3 to fix it at Chest
then the selected body part appears on LCD screen.
When the main body part (Chest) is selected, press F3 to
find ‘Shoulder’ and the icon appears on LCD screen.
To Next Page
