Technical Publication Document NO: SYSTEM-007-ENG (Ver.1.1)
HF-525Plus Installation, Operation and Service Manual
7.2.7 How to save desired X-Ray value set
The X-ray value set can be saved to each Bucky (Table Bucky, Stand Bucky).
X-Ray set is composed of kV, mA, sec and the values are appearing on LCD screen.

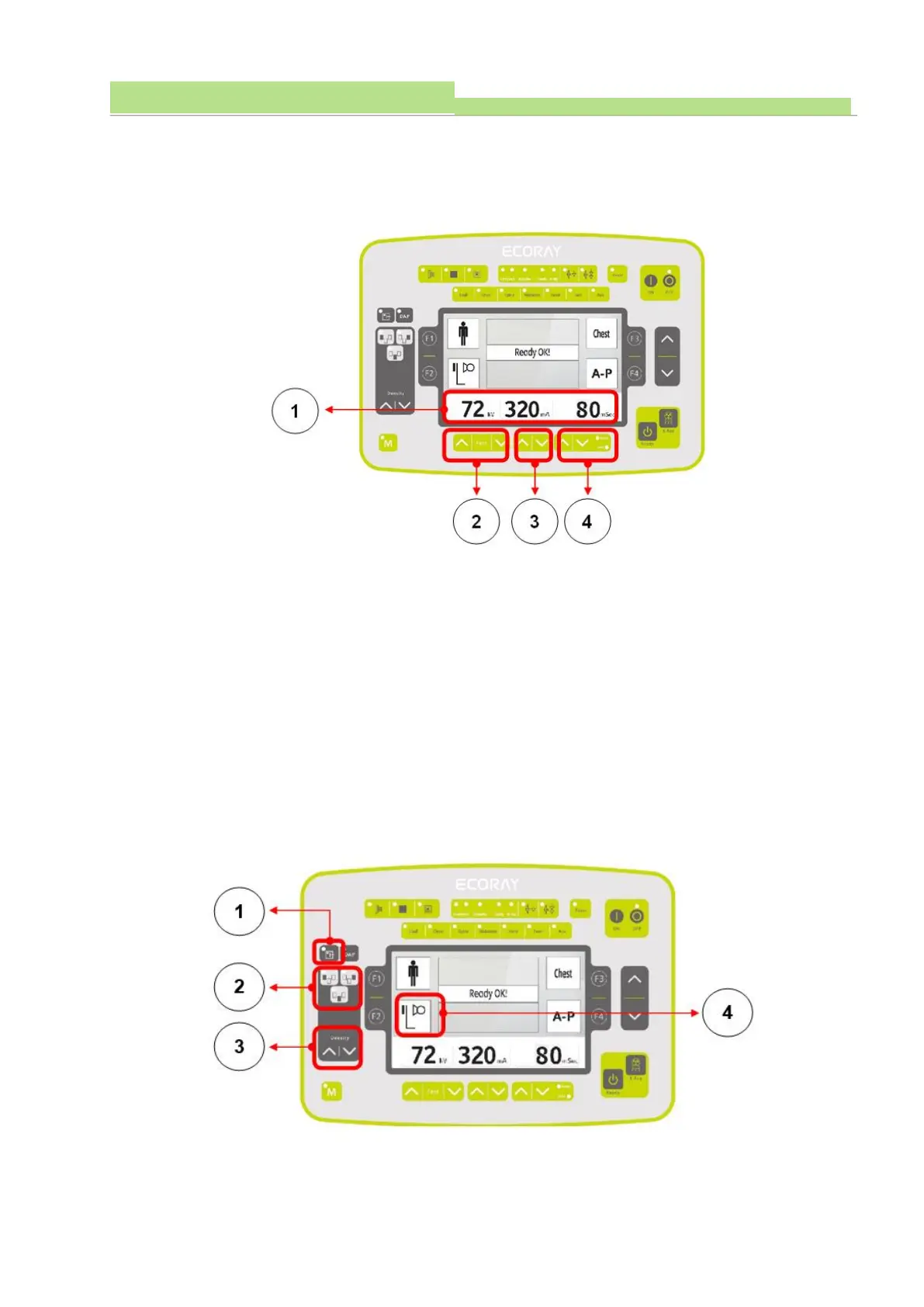

■ How to make it. (see pic)
● No.1
(1) Adjust kV (from 40 to 125).
(2) Up/down button can change it.
● No.2
(1) mA changeable from 10~500mA and up/down buttons are for adjustment. (No.3).
● No.4
(1) X-Ray Exposure Time adjustment available from 1~6300msec.
(2) mAs or msec display mode is selectable.
7.2.8 AEC function (Optional)
AEC (Automatic Exposure Control) controls the length of exposure time automatically and the AEC
chamber is connected to Generator AEC board..
■ Buttons to operate.
NOTE▶
