Technical Publication Document NO: SYSTEM-007-ENG (Ver.1.1)
HF-525Plus Installation, Operation and Service Manual

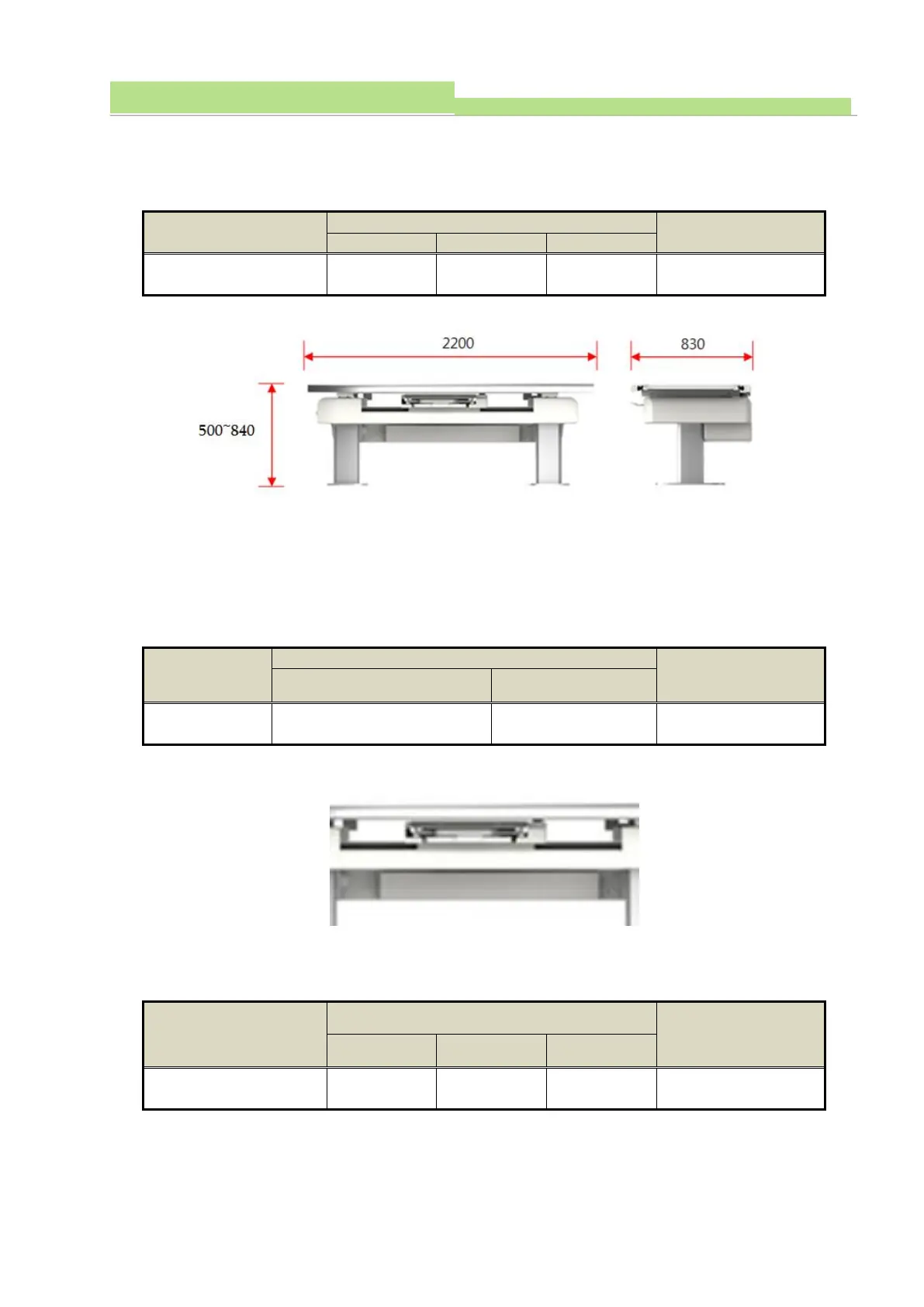

5.2.4 Table Bucky (6-Way)
■ Table (6-way)
√ Physical characteristics
Composition
Size (Unit: mm) deviation ±10%
Weight (Unit: Kg)
Deviation ±5 Kg
Length
Width
Height
Table Bucky
2,200
800
500~840
240
√ Dimension (unit: mm)
√ From Floor to Table Top Minimum SID: 500mm or Less.
√ From Floor to Table Top Maximum SID: 840mm or Less.
√ Table Bucky’s upward and downward moving distance: 340mm or Less.
■ Bucky device
√ Physical characteristics
Composition
Size (Unit: mm) deviation ±10%
Weight (Unit: Kg)
Deviation ±5 Kg
Distance From Table top and
Detector
Moving Distance from
Left to Right
Bucky device
Max. 80 or Less
600
60
√ Dimension (unit: mm)
5.2.5 Wall Bucky stand
■ Wall stand
√ Physical characteristics
Composition
Size (Unit: mm) deviation ±10%
Weight (Unit: Kg)
Deviation ±5 Kg
Min. SID
Max. SID
Height
Wall Bucky stand
400
1900
2100
240
√ Dimension (unit: mm)
