Serinus 44 User Manual 3.0

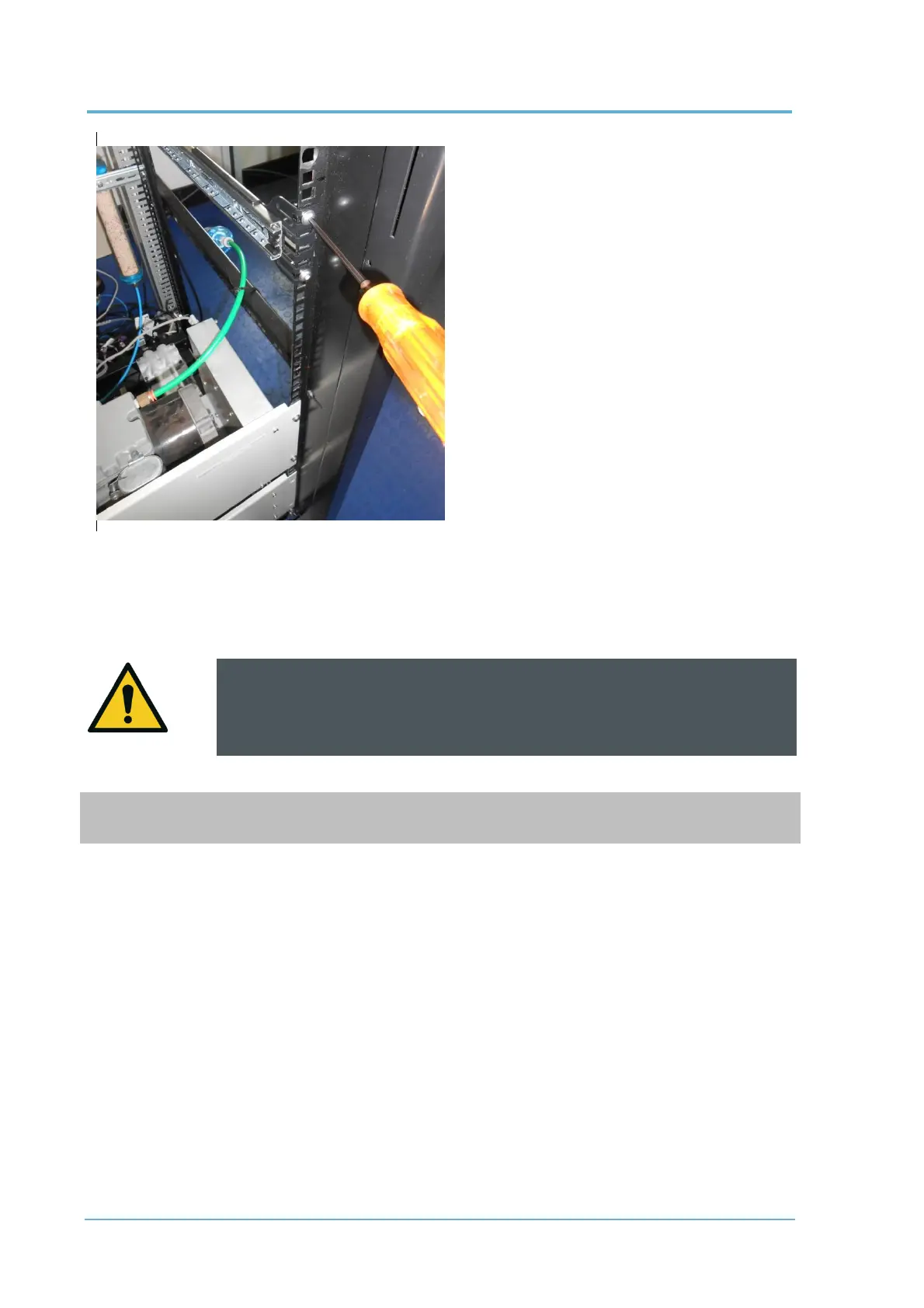

Figure 78 – Attach Slides to Front of Rack
8. Now carefully insert the instrument into the rack by fitting the instrument slides into the
mounted rails. Ensuring that the rack slide locks engage on each side.
CAUTION
When installing this instrument ensure that appropriate lifting equipment and
procedures are followed. It is recommended that two people lift the instrument
into the rack due to the weight, unless proper lifting equipment is available.
Note: Ensure both sides of the inner slide are attached to the outer slides before pushing into the
rack fully.
9. Push the instrument into the rack. Adjust and tighten the screws as required to achieve a smooth
and secure slide.
To Remove the Instrument
1. To remove the instrument first pull instrument forward of rack giving access to the slides.
2. Find the rack slide lock labelled Push and push it in whilst sliding the instrument out of the rack,
complete this for both sides while carefully removing instrument.
