Acclarix AX8/Acclarix AX7 Diagnostic Ultrasound System User Manual Measurements and Reports
- 115 -

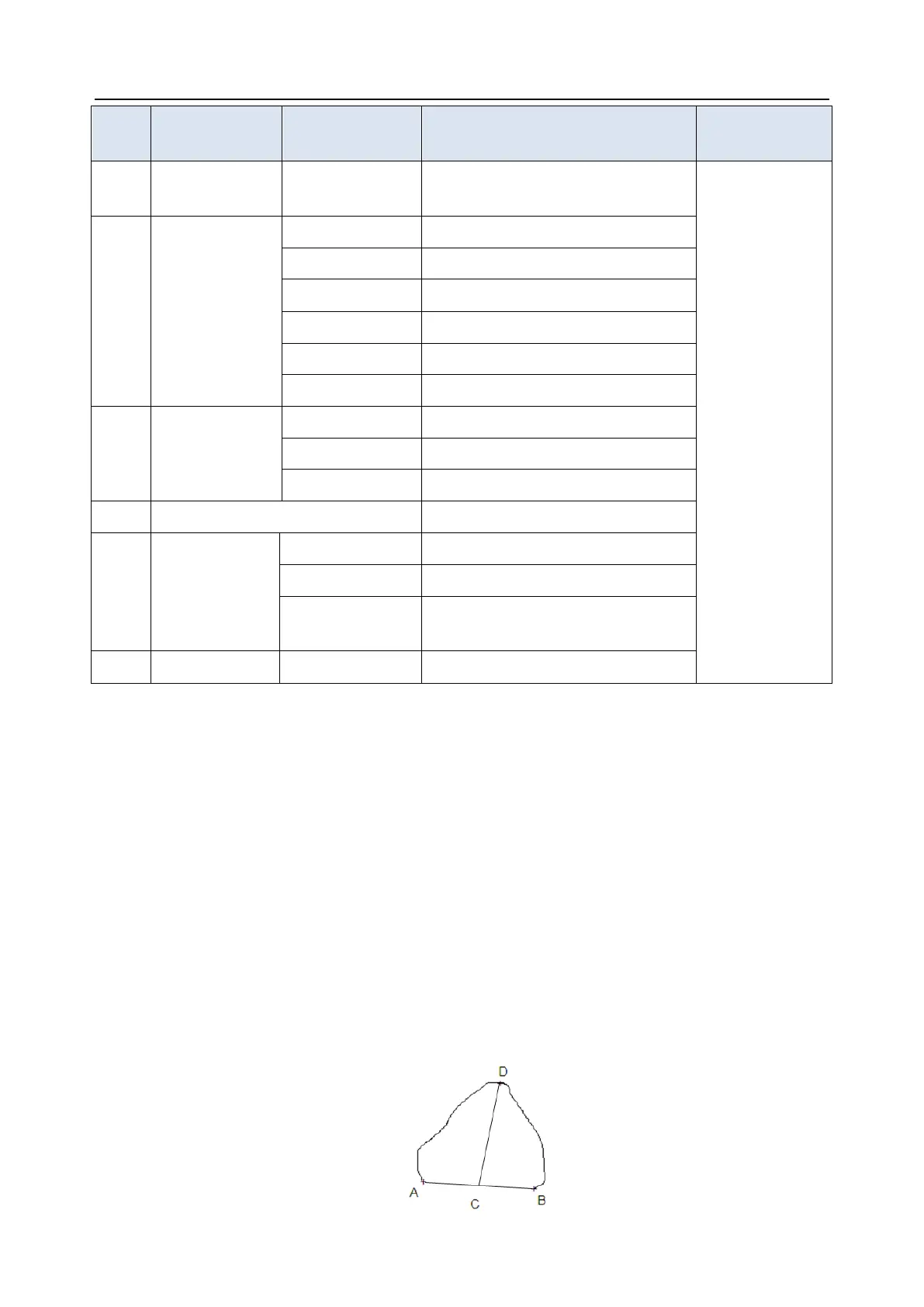

No.
Measurement
Group
Measurement
Item
Description
Method
LVPWs
Left Ventricular Posterior Wall
Thickness at End-systole
3.2
MV
E-F Slope
Mitral Valve E-F slope
EPSS
E point septal separation
MV D-E Exc
Mitral Valve DE Wave Amplitude
MV D-E Slope
Mitral Valve D-E Slope
MV E-E SEP
Mitral Valve E-E Separation
MV A-C Interval
Mitral Valve A-C Interval time
3.3
LA/Ao
LA Diam
Left atrial diameter
AoR Diam
Aortic root diameter
RVOT Diam
Right Ventricular outflow tract
3.4
HR
Heart rate
3.5
Time
LVET
Left Ventricular Ejection Time
LV PEP
Left Ventricular Pre-ejection Period
RV PEP
Right Ventricular Pre-ejection
Period
3.6
AV
AV Cusp Sep
Aortic Valve Cusp Separation
8.2.4.1. Simpson’s Method of Disks (MOD)
Simpson’s MOD is a method used to calculate LV diastolic and systolic volumes and ejection fraction.
Simpson’s MOD is available in the Cardiac presets.
To use the Simpson’s MOD measurement:
1. Invoke the B-mode application measurement function.
2. Select a measurement which could be done by Simpson’s method of disks. A single caliper will be
displayed on the image field.
3. Move the caliper and press <Set> key to position the start point A at one end of left ventricular
long axis.
4. Draw the trace along the endocardium of the left ventricular.
5. Press <Set> key to fix the end point B and complete the trace. A new caliper positions
automatically at the apex (Point D) of the trace, connecting the Point C (Midpoint of point A and B).
This distance between point C and D is the longest detected by the system, as shown below:
