2.1.1 Mounting Plate
The 6205s Mounting Plate is made of stainless steel and was designed with a variable bolt pattern to
secure the system to several different deployment mechanisms, thereby cutting back on installation and
mobilization time. The variable bolt pattern is shown in F
IGURE 2-3.
EdgeTech advises mounting the 6205s Sonar Head to the bow of a survey vessel. By placing the system at
the bow, the sonar should be far enough away from most interference, such as hull echoes, propeller
noise, and wake.

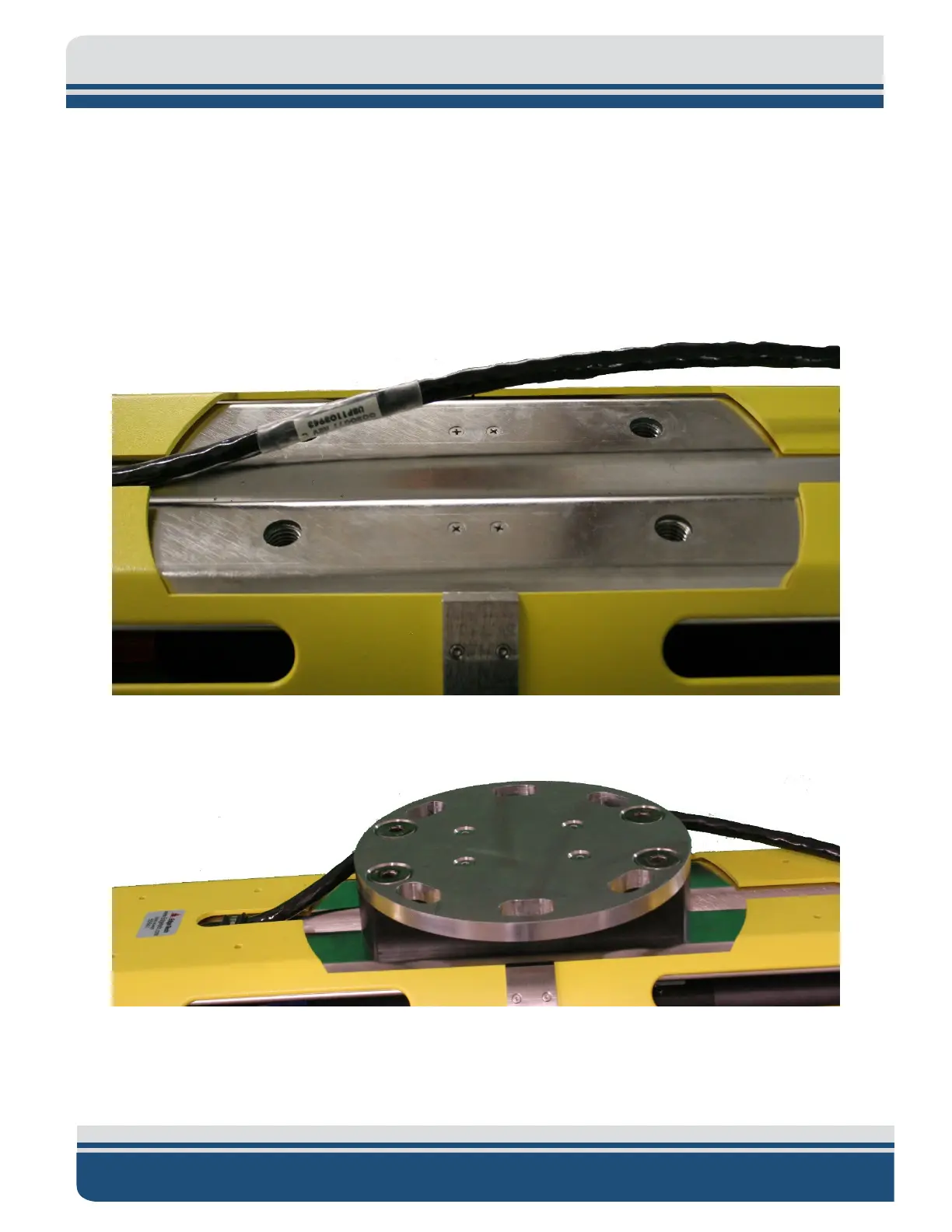

Figure 2-2: The Mounting Plate
Refer to
FIGURE 2-5 and FIGURE 2-6 for a comparison of bolt patterns.
Figure 2-3: The Optional Adaptor Flange Installed onto the Mounting Plate
