Edgetech 6205S - Over-The-Bow Deployment; Figure 5-1: 6205 S Deployment, Option 1 - Over-The-Bow

5-35
5.2.1 Over-the-Bow Deployment
Edgetech’s recommended option is to mount the 6205s sonar head to the bow of the survey vessel. An
example of an over-the-bow deployment is depicted in the photographs in
FIGURE 5-1. If help is needed
with this type of installation, do not hesitate to contact E
DGETECH CUSTOMER SERVICE.

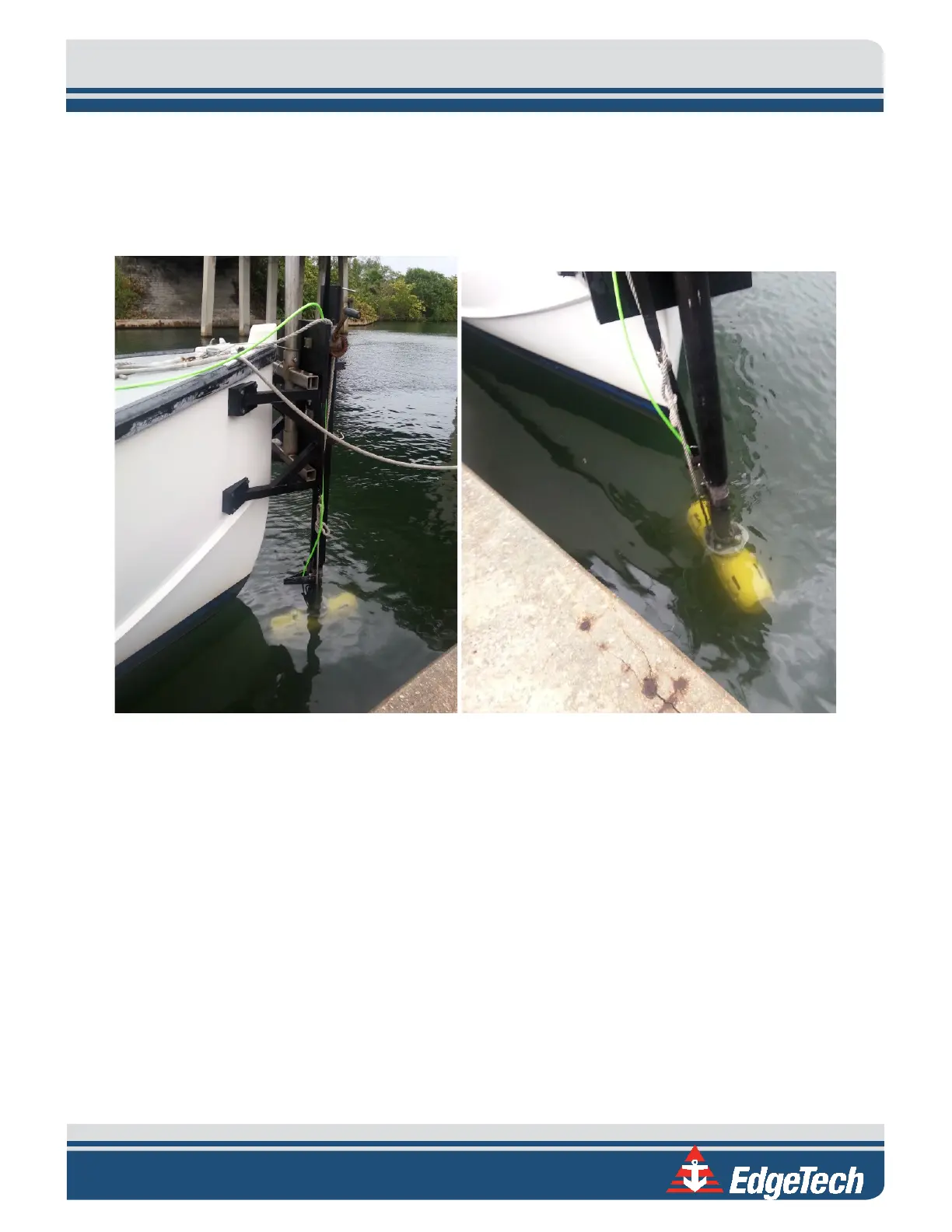

Figure 5-1: 6205s Deployment, Option 1 – Over-the-Bow
