Edgetech 6205S - Sonar Data Flow; Figure 4-3: Figure 4 3: 6205 S System Is Optimized to Work with a Falling Edge 1 PPS Signal

4-30
6205s BATHYMETRIC AND SIDE SCAN SONAR 0020300_REV_E

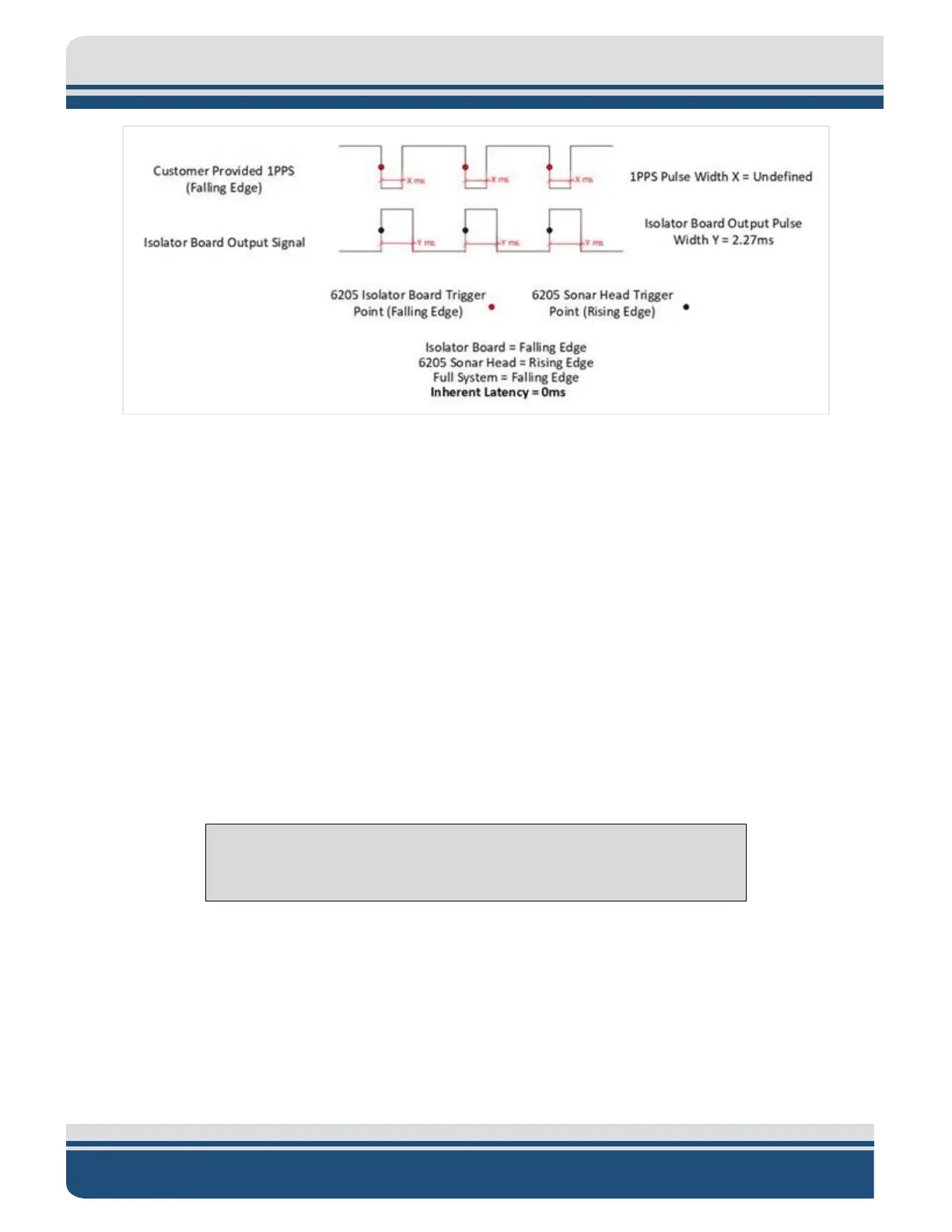

Figure 4-3: Figure 4 3: 6205S System Is Optimized To Work With A Falling Edge 1PPS Signal
If a falling edge trigger is not available, a rising edge trigger can be used. There are no software or
hardware adjustments required. However, a latency equivalent to the input trigger’s pulse width will be
generated. As a result, we recommend using a pulse width of 1ms or less if a rising edge trigger must be
used. Static latency correction occurs during the patch test process in third party software packages.
4.2.4 Sonar Data Flow
The Discover Bathymetric software acquisition package provides a way to control, store, and display the
bathymetry and side-scan sonar data. Discover Bathymetric contains two sub-modules. This first is the
Bathymetric Processor that processes the bathymetry solutions. The second is the Discover application
that processes and displays the dual-frequency side-scan data. If third-party software is utilized, it would
be added to the data flow. The Sonar Data Flow Chart below (F
IGURE 4-3) illustrates the data flow between
Discover, the Bathymetric Processor, and any third-party software.
NOTE: The 6205s Sonar Interface Box flow chart can be used in either the
6205s-R Rack Mount Interface Box or 6205s-P Portable Interface Box.
