Edgetech 6205S - UDP Connections; Figure 8-23: UDP Configuration Example

8-70
6205s BATHYMETRIC AND SIDE SCAN SONAR 0020300_REV_E
CAUTION!
EdgeTech recommended performing the process described in the section
below through Discover, but the process below provides an alternative.
Please refer to the DISCOVER BATHYMETRY MANUAL for information on how
to complete this process in Discover.
8.3.4 UDP Connections
The 6205s is compatible with data sent over the Ethernet connection via UDP. The SonarSerial.ini is
utilized to configure the system to accept these messages. Note that 1PPS functionality must be utilized
when operating with attitude / NAV being transferred with UDP messages.
All messages detailed in Section 3.1 can also be sent to the 6205s over the Ethernet connection via UDP.
The below example shows the same configuration detailed in
FIGURE 8-23 but with UDP functionality.

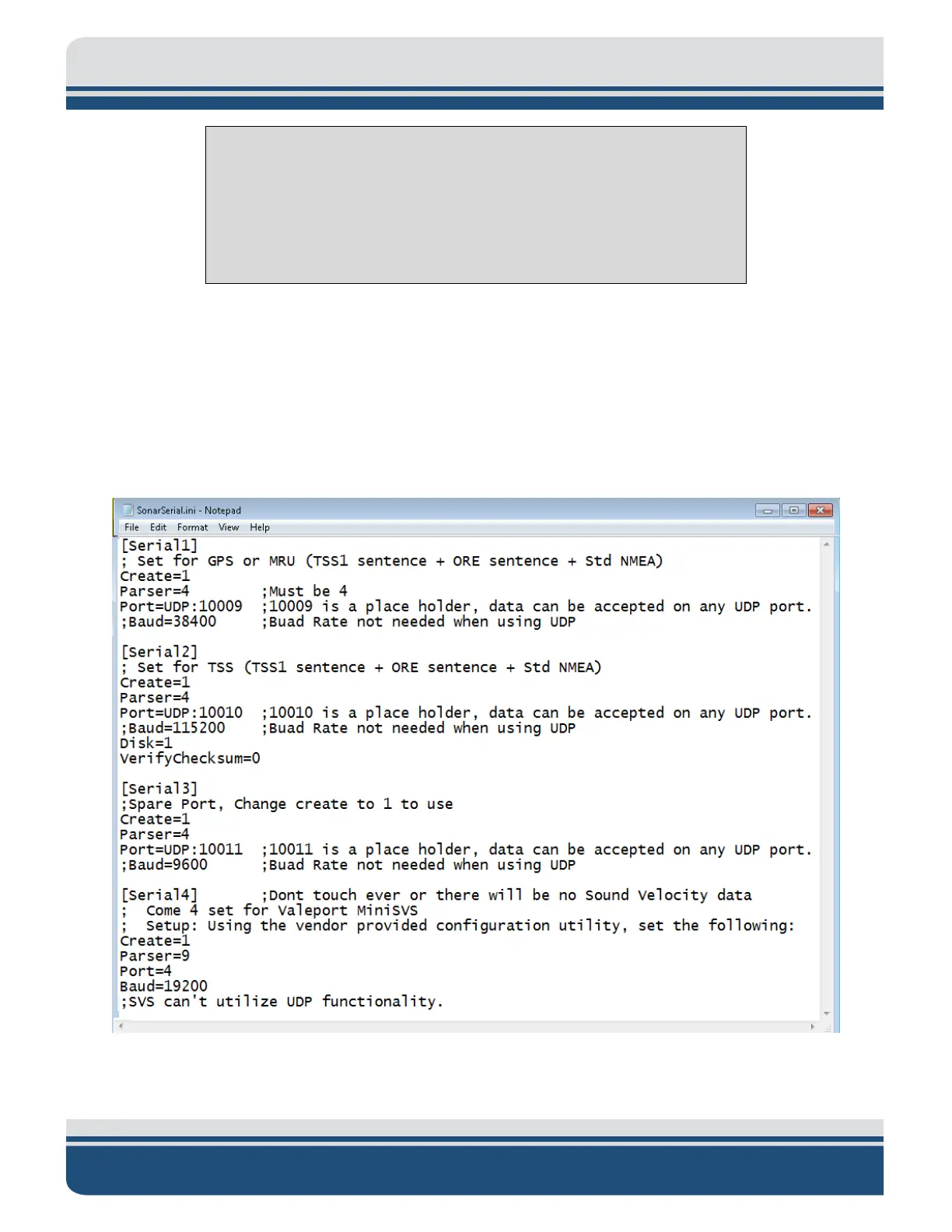

Figure 8-23: UDP Configuration Example
