Edgetech 6205S - Figure 8-16: Checking Serial Port Information; Figure 8-17: Checking Sensor Status

8-62
6205s BATHYMETRIC AND SIDE SCAN SONAR 0020300_REV_E

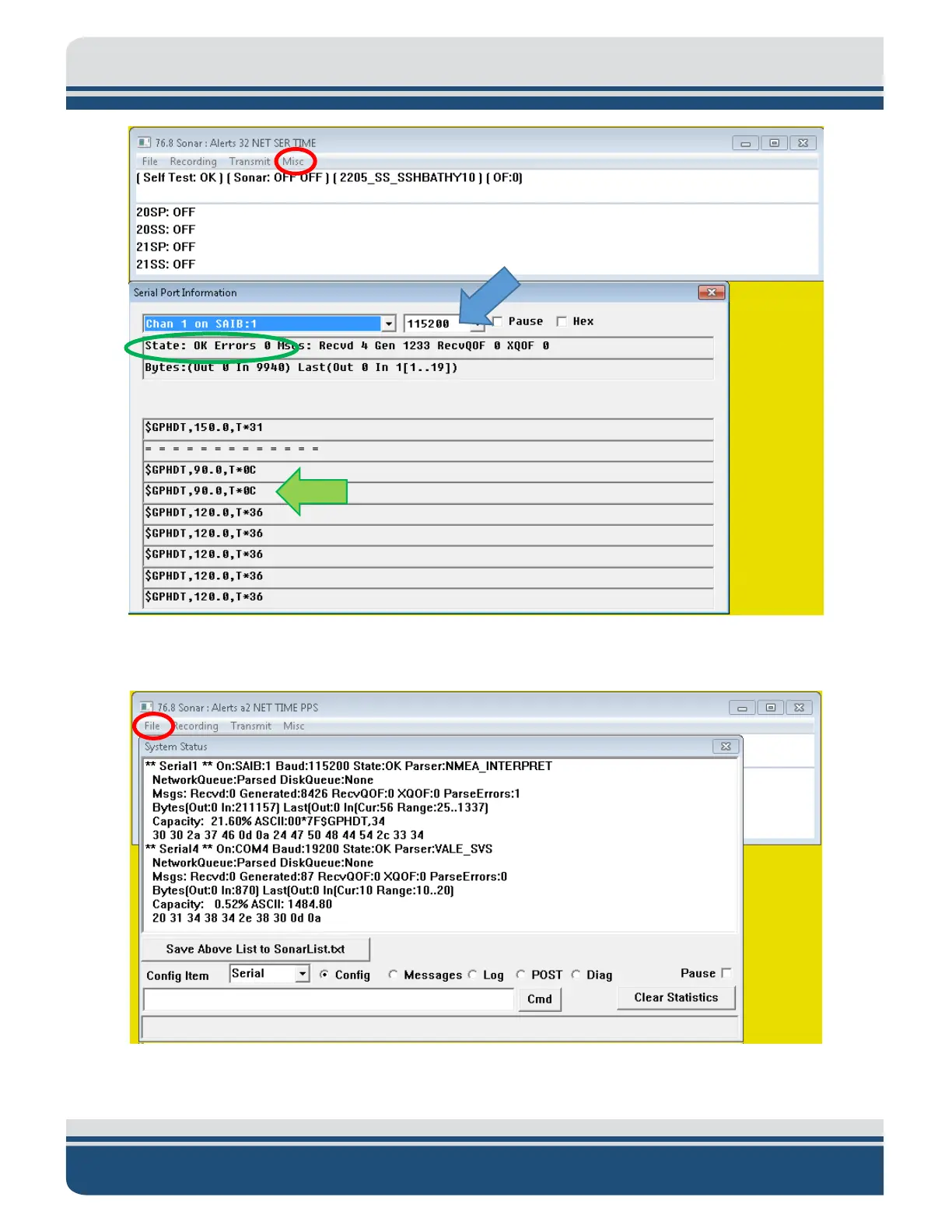

Figure 8-16: Checking Serial Port Information
11. Click File > Show Status in the sonar window, as shown circled in red in
FIGURE 8-17.
Figure 8-17: Checking Sensor Status
