6205s BATHYMETRIC AND SIDE SCAN SONAR 0020300_REV_E

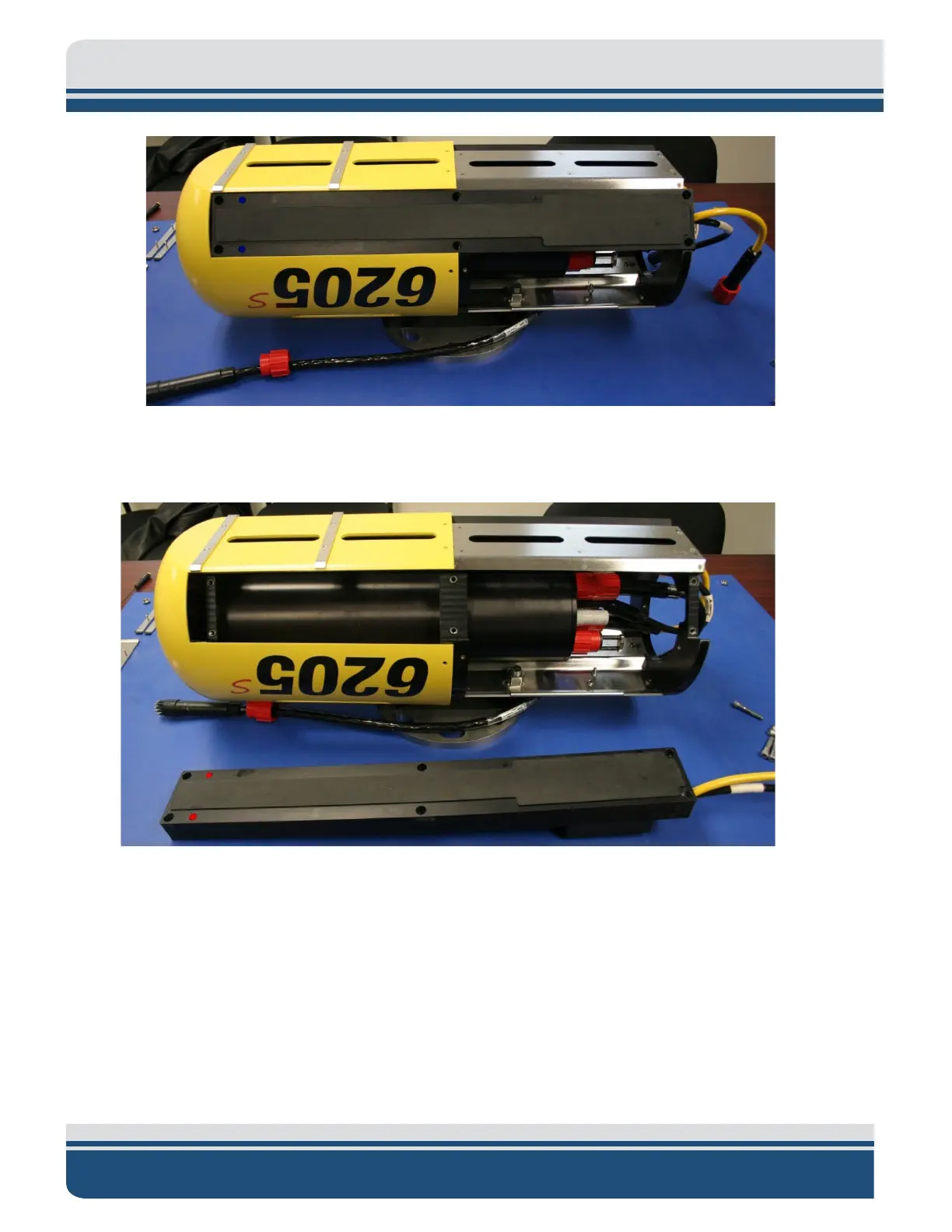

Figure 5-11: All Cap Screws Removed
9. To remove the transducer, slide it away from the Housing and pull it straight out of the frame.
Take care not to damage the side scan and bathymetry cables out of the frame.
Figure 5-12: Remove the Existing Transducer
10. To mount the new transducer, insert the side scan and bathymetry cables into the housing and
through the frame.
