5-36
6205s BATHYMETRIC AND SIDE SCAN SONAR 0020300_REV_E
5.2.2 Over-the-Side Deployment
An alternative to the bow mount is to secure the 6205s sonar head over the survey vessel's side via a pole.
An example of an over-the-side deployment is illustrated in the images in F
IGURE 5-2. If help is needed
with this type of installation, contact E
DGETECH CUSTOMER SERVICE.

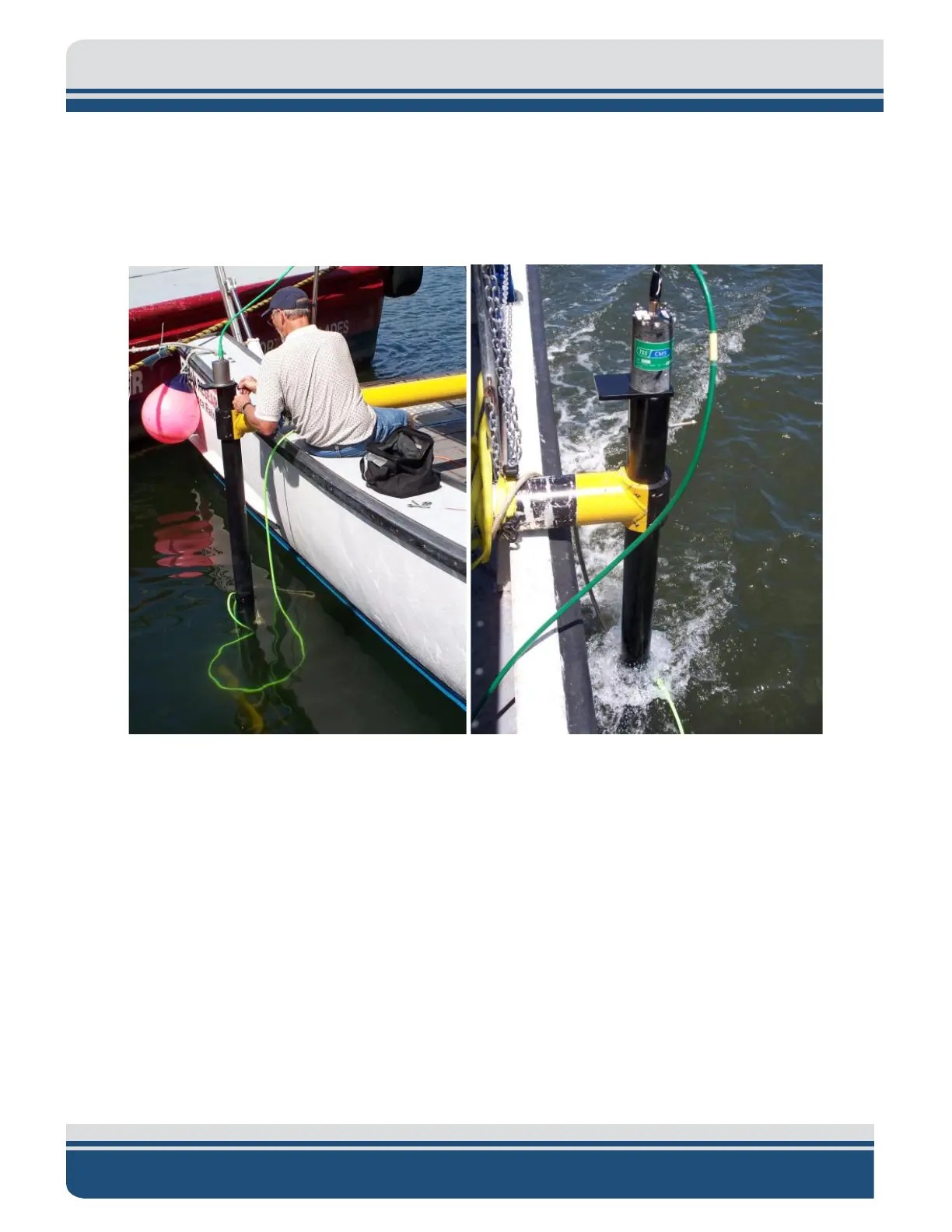

Figure 5-2: 6205s Deployment, Option 2 – Over-the-Side
5.2.3 USV Deployment
An alternative to the ship-mounted is to secure the 6205s sonar head to an unmanned survey vessel. An
example of an Unmanned Surface Vehicle (USV) deployment is illustrated in the images in F
IGURE 5-3.
Contact E
DGETECH CUSTOMER SERVICE for assistance with any USV installation.
