STP-iXR1606 Turbomolecular Pump
MT-79E-001-D
Page 26
INSTALLATION
3
When installing the STP pump to the vacuum equipment in upside-down position, the STP-iXR1606
can be loft with the eyebolts (M8) attached to the screw holes for securing the base. (see Figure 14)
A crane and eyebolts due to lifting operations should withstand the load of five times or more the
weight of the STP pump, and rope should be seven time or more. Use an eyebolt which confirms to
ISO03266. When lifting the pump, use 2 or more ropes.

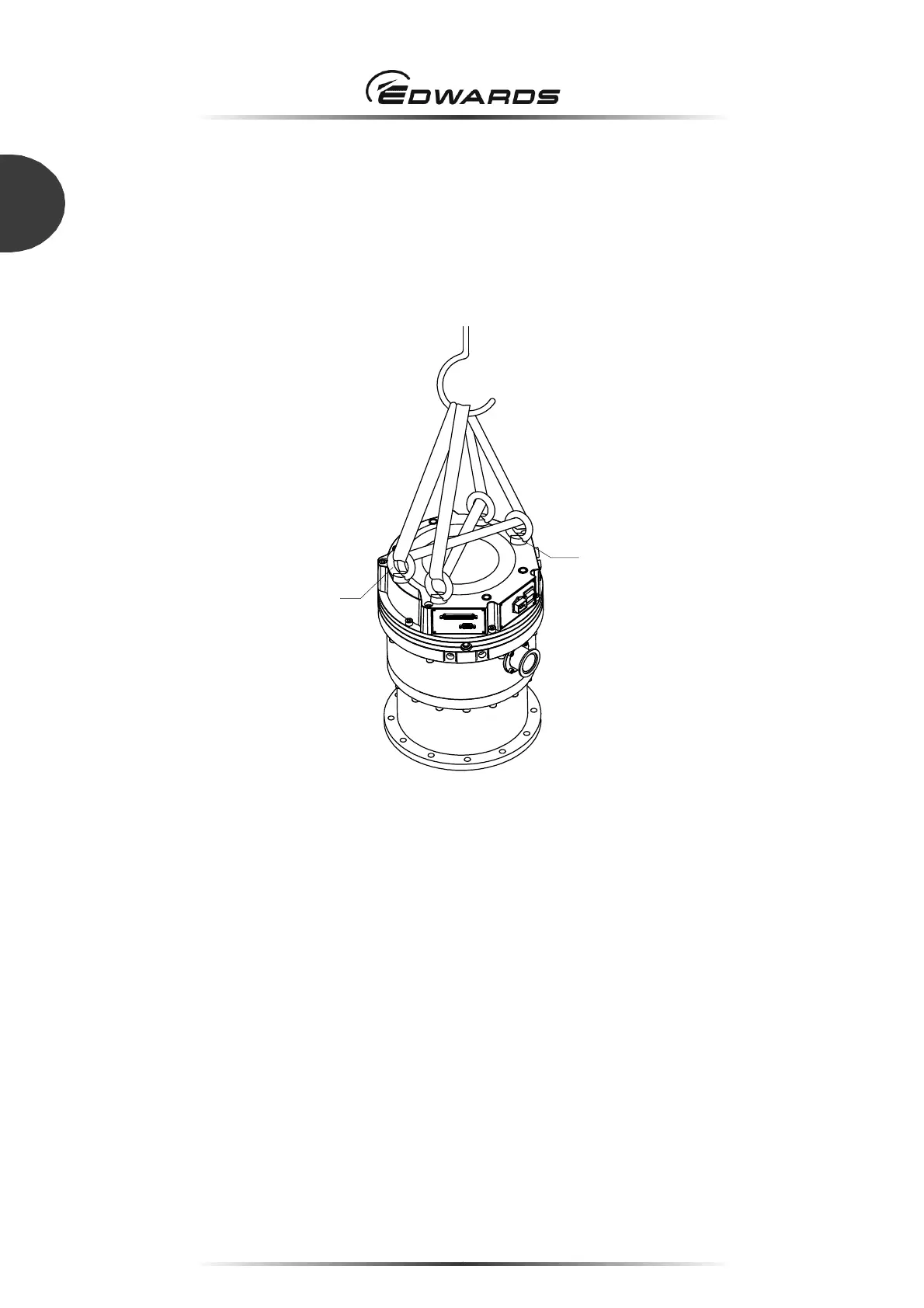

Figure 14 - STP pump with eyebolts
Screw holes for
the base
