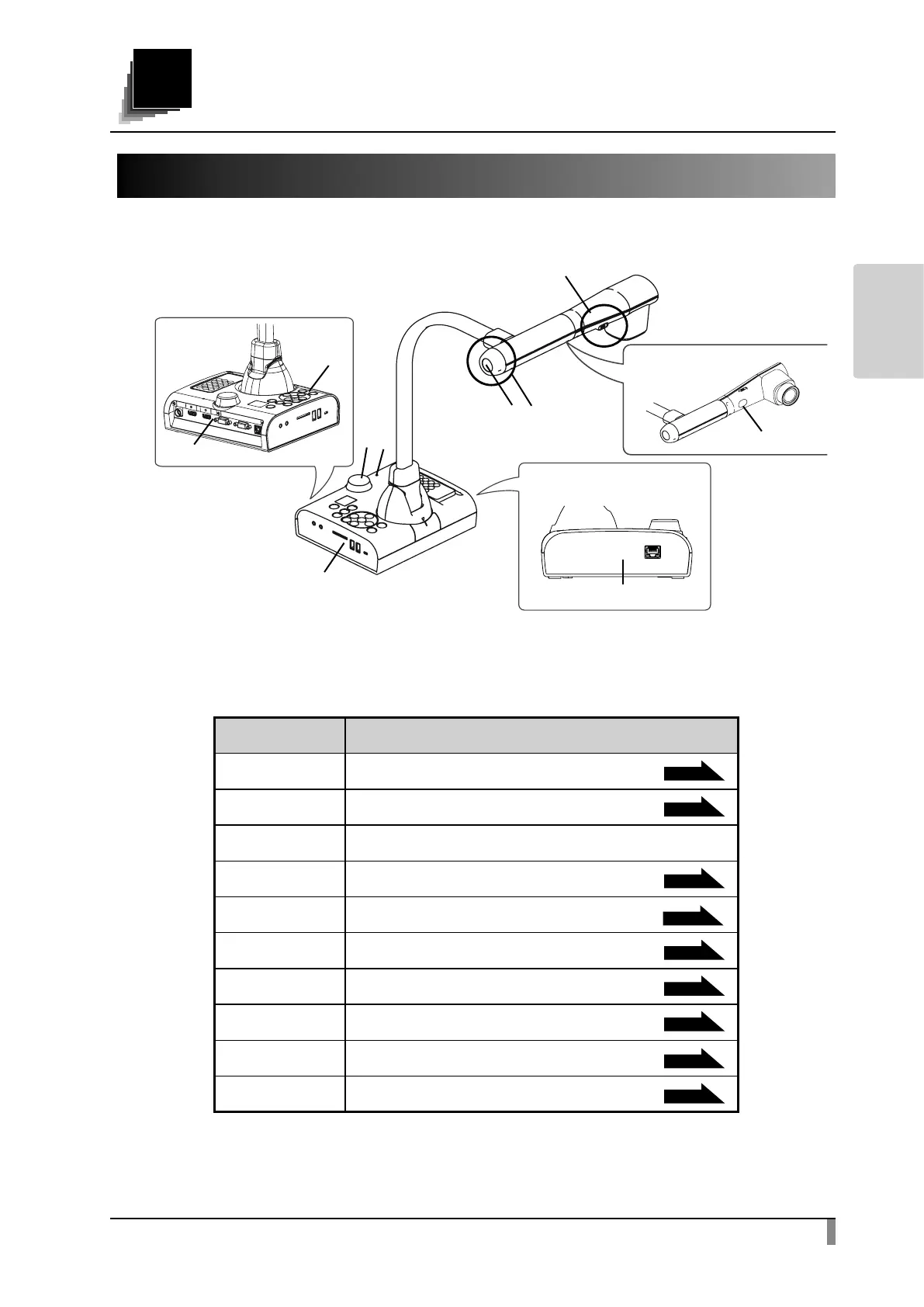

2-1 Document Camera

Part names
No. Name
① LED lighting switch
P.23
② LED lighting
P.23
③ Built-in mic
④ Zoom dial
P.21
⑤ AF button
⑥ Operating panel
P.6
⑦ IR receiver
P.11
⑧ Side panel (Left)
P.9
⑨ Side panel (Right)
⑩ Rear panel
P.7
BASIC OPERATIONS
2
①
②
⑦
③
④⑤
⑥
⑧
⑩
P.21
⑨
P.9
