Elmo L-12W User Manual

4
BUNDLED
ITEMS
BUNDLED ITEMS
1

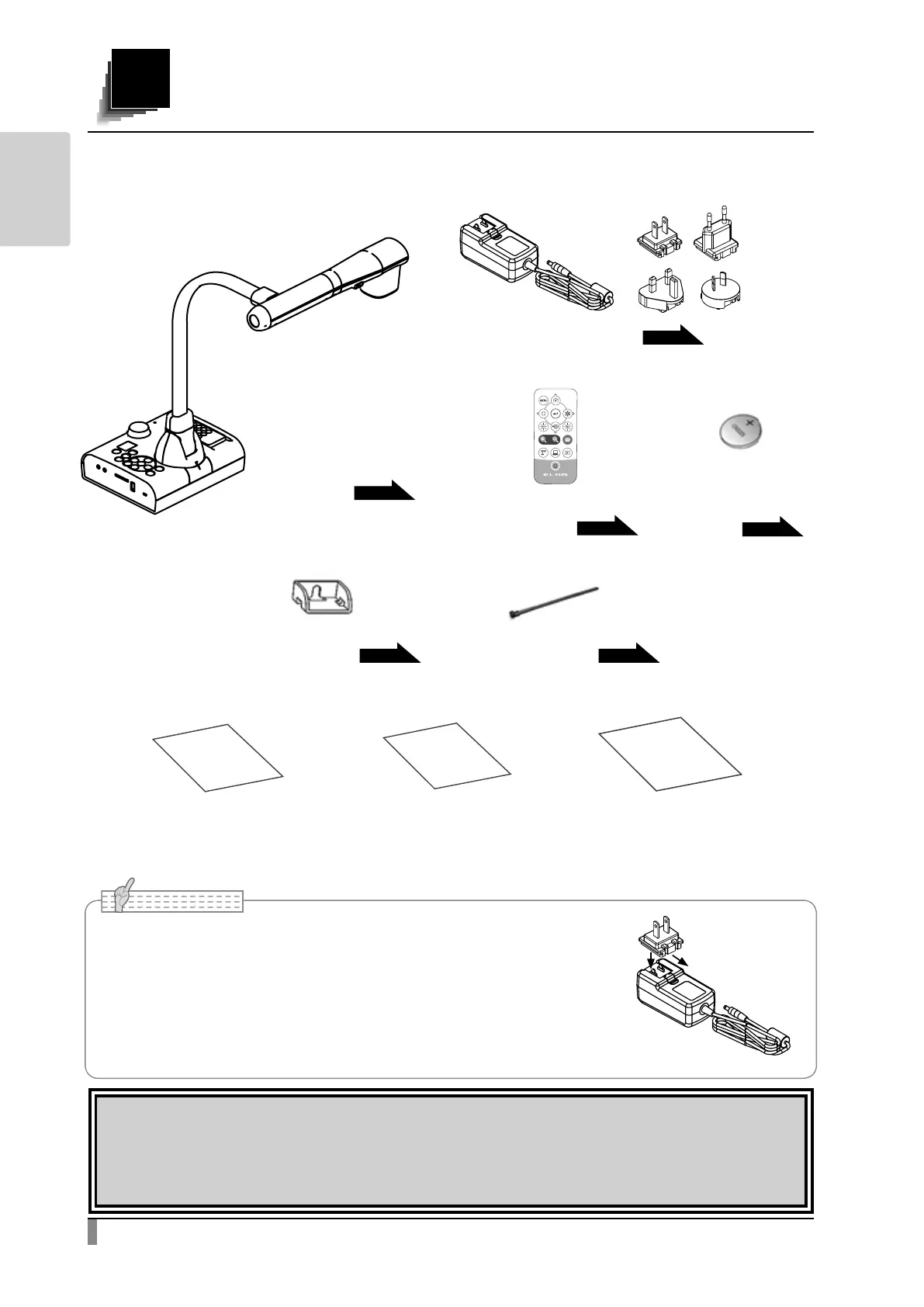

The items below are included with the product. If any item is missing, contact the
dealer from whom you purchased the product.
Document camera
P.5
4XLFN
6WDUW*XLGH
Quick Start Guide
Important Safeguards
:DUUDQW\
5HJLVWUDWLRQ
&DUG
Remote
control
P.11
Coin battery
(for remote control)
P.11
HDMI cable xture ×2
Warranty Registration Card
(North America only)
AC adapter
P.14
Cable tie × 2
RC
-
VL
,PSRUWDQW
6DIHJXDUGV
● About AC adapter
Press and slide the plug into the groove of the AC adapter as shown in the drawing.
※ Slide it until it clicks.
※ Choose the correct plug according to the outlet.
When removing the plug from the AC adapter, slide and pull the plug in the
opposite direction while pressing the lock button.
The type of plug may di󱐯er depending on the shipping destination.
Note
Caution
• Do not wrap the power cable tightly around the AC adapter. The cable could be damaged
(disconnected) or the inside of the cable could be exposed and result in an accident. Do not
bundle the cable when using the product.
P.12 P.12

Elmo L-12W Specifications

General

AC input voltage	100 - 240 V
Operating voltage	12 V
Power supply type	DC
Power consumption (typical)	5 W
Interface	USB 2.0
DC-in jack	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
USB connector type	USB Type-A, USB Type-B
VGA (D-Sub) input ports	1
Lamp type	LED
Product color	White
Image formats supported	JPG
Maximum operating distance	0.2 m
Compatible memory cards	SD
Sensor type	CMOS
Maximum frame rate	30 fps
Effective sensor resolution	6.7 MP
Supported graphics resolutions	2992 x 2244, 3264 x 2448
Digital zoom	16 x
Optical zoom	12 x
Shooting area (WxD)	470 x 260 mm
Maximum focal length (f)	3.6 mm
Quantity per pack	1 pc(s)

Weight and Dimensions

Depth	377 mm
Width	349 mm
Height	432 mm
Weight	3000 g
Dimensions folded (WxDxH)	195 x 294 x 475 mm
