Connecting a CLARiiON CX300 or CX500 array

253

Cable Connections from Fibre Channel Switch to Storage

EMC CONFIDENTIAL

If you are using a single switch to connect a CLARiiON CX300 or CX500 array,

connect the cables (Figure 160):

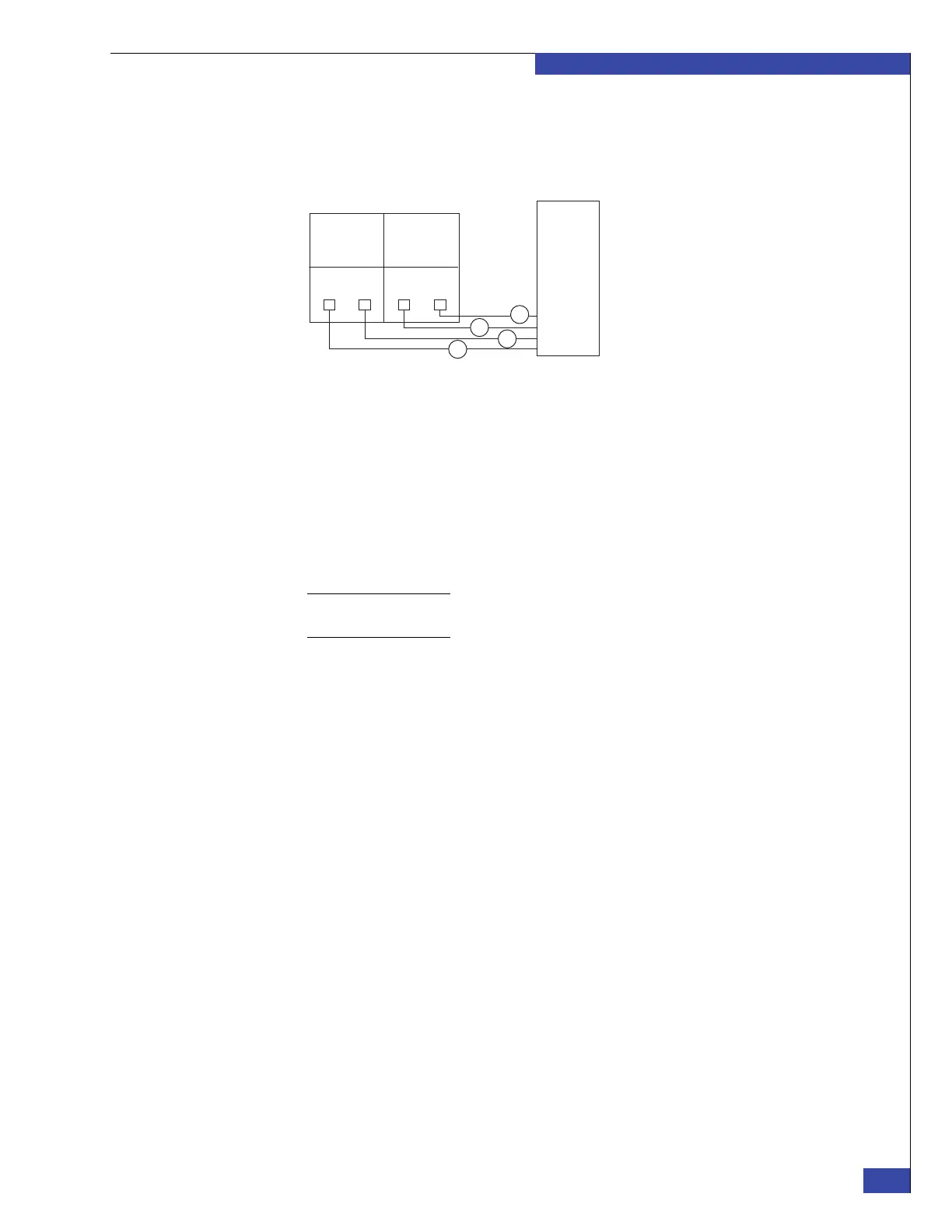

Figure 160 CLARiiON CX300 or CX500 connected to a single switch

1. Connect SP A port FE 0 to the switch.

2. Connect SP B port FE 0 to the switch.

3. Connect SP A port FE 1 to the switch.

4. Connect SP B port FE 1 to the switch.

5. Record which SP ports you connected to which switch ports using the “FC/FCoE

cabling worksheet” on page 273.

Note: If you did not use the default SP and FC switch cabling, you must manually select the FC

switch ports the array will use in “Step 2: Install latest File OE on CS 0” on page 139.
