Connecting a CLARiiON CX700 array

255

Cable Connections from Fibre Channel Switch to Storage

EMC CONFIDENTIAL

If you are using one switch to connect a CLARiiON CX700 array, connect the cables

(Figure 162). This example uses CLARiiON array SAN ports 0 and 1, but you can use

any two ports on each SP:

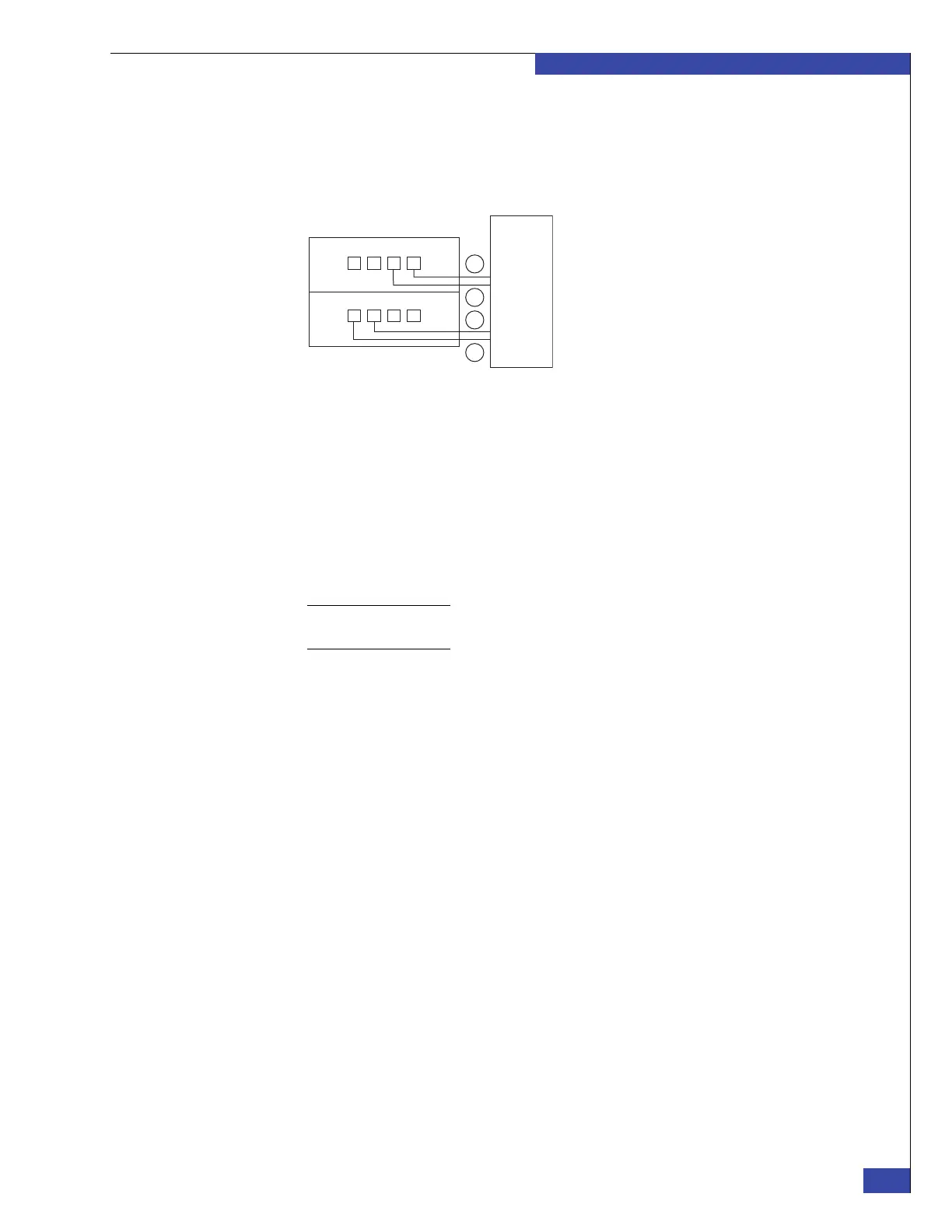

Figure 162 CLARiiON CX700 connected to a single switch

1. Connect SP A port 0 to the switch.

2. Connect SP B port 0 to the switch.

3. Connect SP A port 1 to the switch.

4. Connect SP B port 1 to the switch.

5. Record which SP ports you connected to which switch ports using the “FC/FCoE

cabling worksheet” on page 273.

Note: If you did not use the default SP and FC switch cabling, you must manually select the FC

switch ports the array will use in “Step 2: Install latest File OE on CS 0” on page 139.

CIP-000130

Switch

3 2 1 0

0 1 2 3

SP B

SP A
