Connecting a CLARiiON CX3-20 or CX3-40 array

259

Cable Connections from Fibre Channel Switch to Storage

EMC CONFIDENTIAL

If you are using a single switch to connect a CLARiiON CX3-20 or CX3-40 array,

connect the cables as shown in Figure 166:

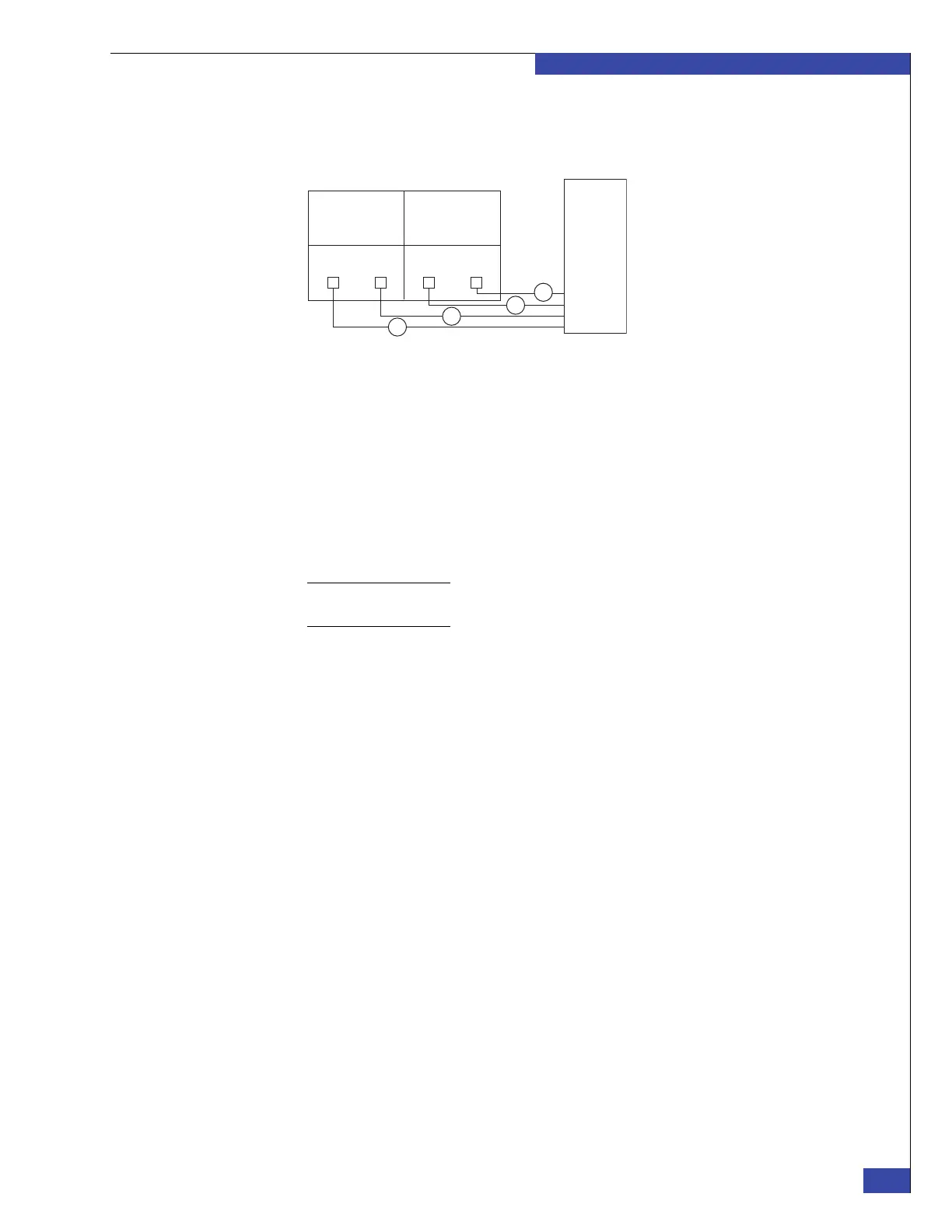

Figure 166 CLARiiON CX3-20 or CX3-40 connected to a single switch

1. Connect SP A port 0 Fibre to the switch.

2. Connect SP B port 0 Fibre to the switch.

3. Connect SP A port 1 Fibre to the switch.

4. Connect SP B port 1 Fibre to the switch.

5. Record which SP ports you connected to which switch ports using the “FC/FCoE

cabling worksheet” on page 273.

Note: If you did not use the default SP and FC switch cabling, you must manually select the FC

switch ports the array will use in “Step 2: Install latest File OE on CS 0” on page 139.

CIP-000725

Switch

SP B SP A

0 Fibre 1 Fibre 0 Fibre 1 Fibre
