Connecting a CLARiiON CX3-80 array

261

Cable Connections from Fibre Channel Switch to Storage

EMC CONFIDENTIAL

If you are using one switch to connect a CLARiiON CX3-80 array, connect the cables

as shown in Figure 168. The CLARiiON array SAN ports 0 and 1 are used in this

example, but you can use any two ports on each SP:

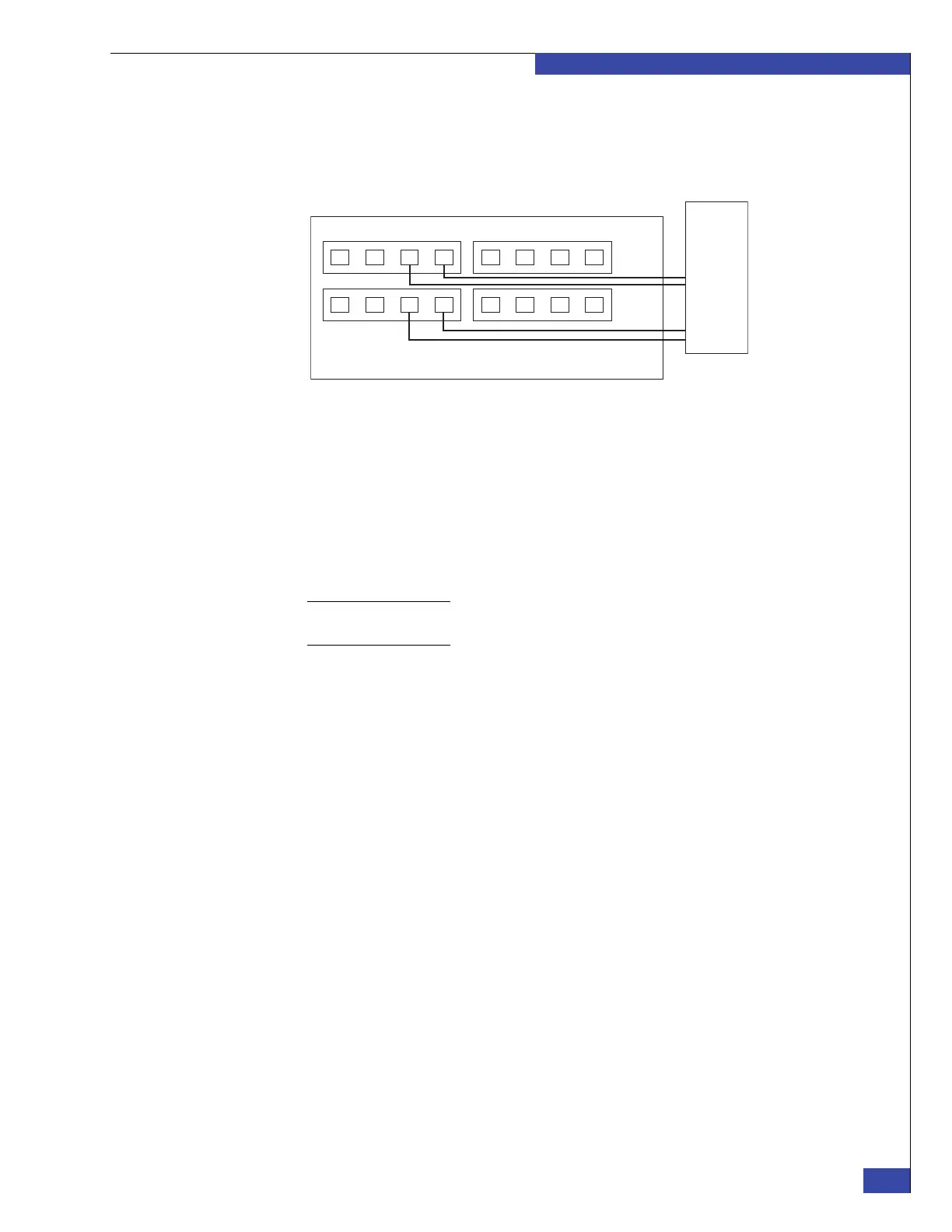

Figure 168 CLARiiON CX3-80 connected to a single switch

1. Connect SP A port 0 Fibre to the switch.

2. Connect SP B port 0 Fibre to the switch.

3. Connect SP A port 1 Fibre to the switch.

4. Connect SP B port 1 Fibre to the switch.

5. Record which SP ports you connected to which switch ports using the “FC/FCoE

cabling worksheet” on page 273.

Note: If you did not use the default SP and FC switch cabling, you must manually select the FC

switch ports the array will use in “Step 2: Install latest File OE on CS 0” on page 139.

CIP-000728

SP B

SP A

Switch

0 Fibre 1 Fibre
