EMC VNX VG2/VG8 Gateway Configuration Setup Guide
94
Connect Cables for a Fabric-connected VG8
EMC CONFIDENTIAL

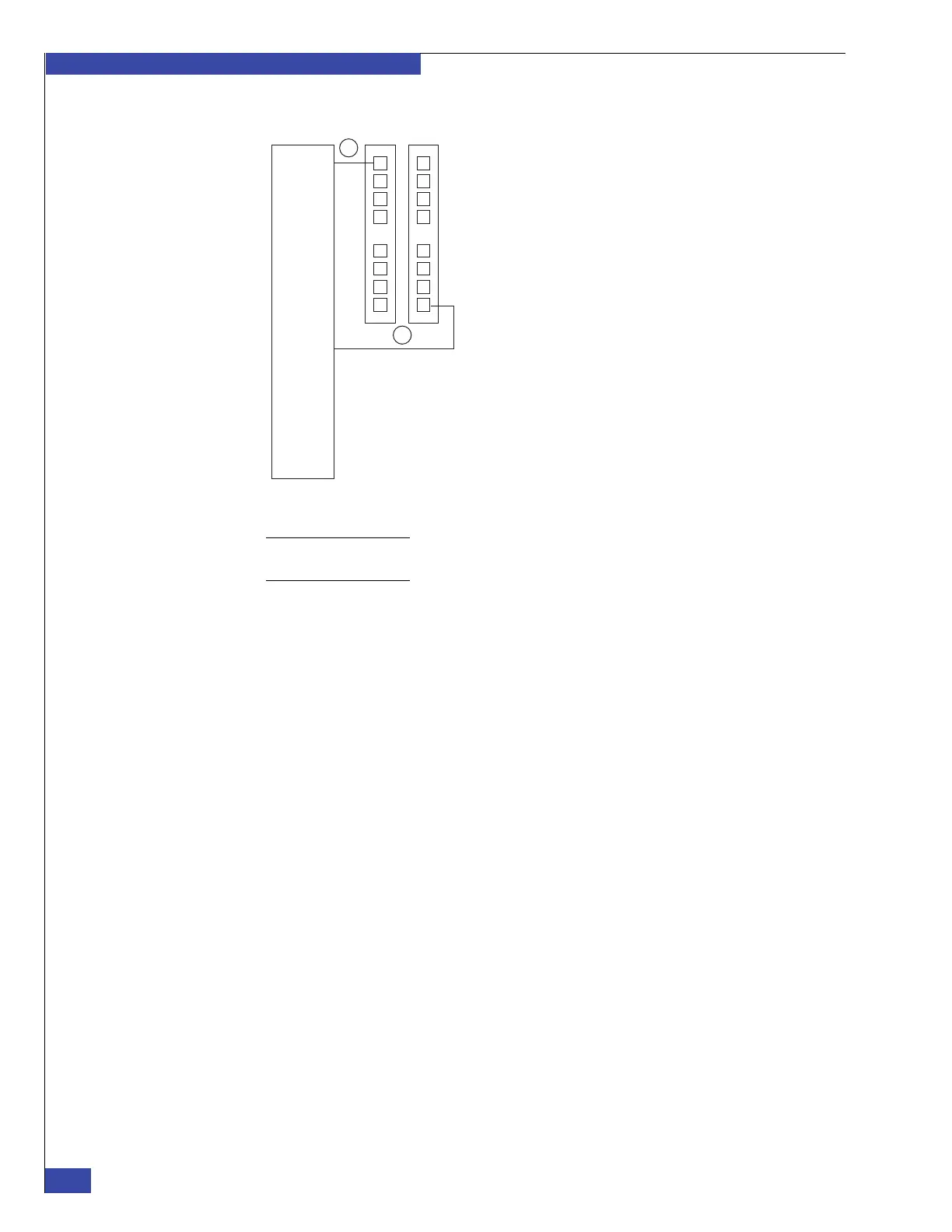

Figure 58 Example of Symmetrix DMX channel directors connected to a single switch
Note: The Symmetrix VMAX and VMAXe channel directors have fewer ports than shown in
Figure 58.
To make connections to one switch as illustrated in the example in Figure 58:
1. Verify the channel director ports to use from the CCA activity or the Symmetrix
administrator for the VNX gateway system.
2. Connect one specified channel director port to the switch.
3. Connect the specified port on another channel director to the switch.
4. Record the channel director ports you connected to the switch ports by using the
“FC/FCoE cabling worksheet” on page 273.
CIP-000411
Switch Channel Directors
1
2
