156 Options CG Drives & Automation 01-7318-01r1
The brake chopper option is built-in by the manufacturer
and must be specified when the AC drive is ordered.
13.5 EmoSoftCom
EmoSoftCom is an optional software that runs on a personal
computer. It can also be used to load parameter settings
from the AC drive to the PC for backup and printing.
Recording can be made in oscilloscope mode. Please contact
CG Drives & Automation sales for further information.
13.6 Control panel
Control panel with a 4-line display.

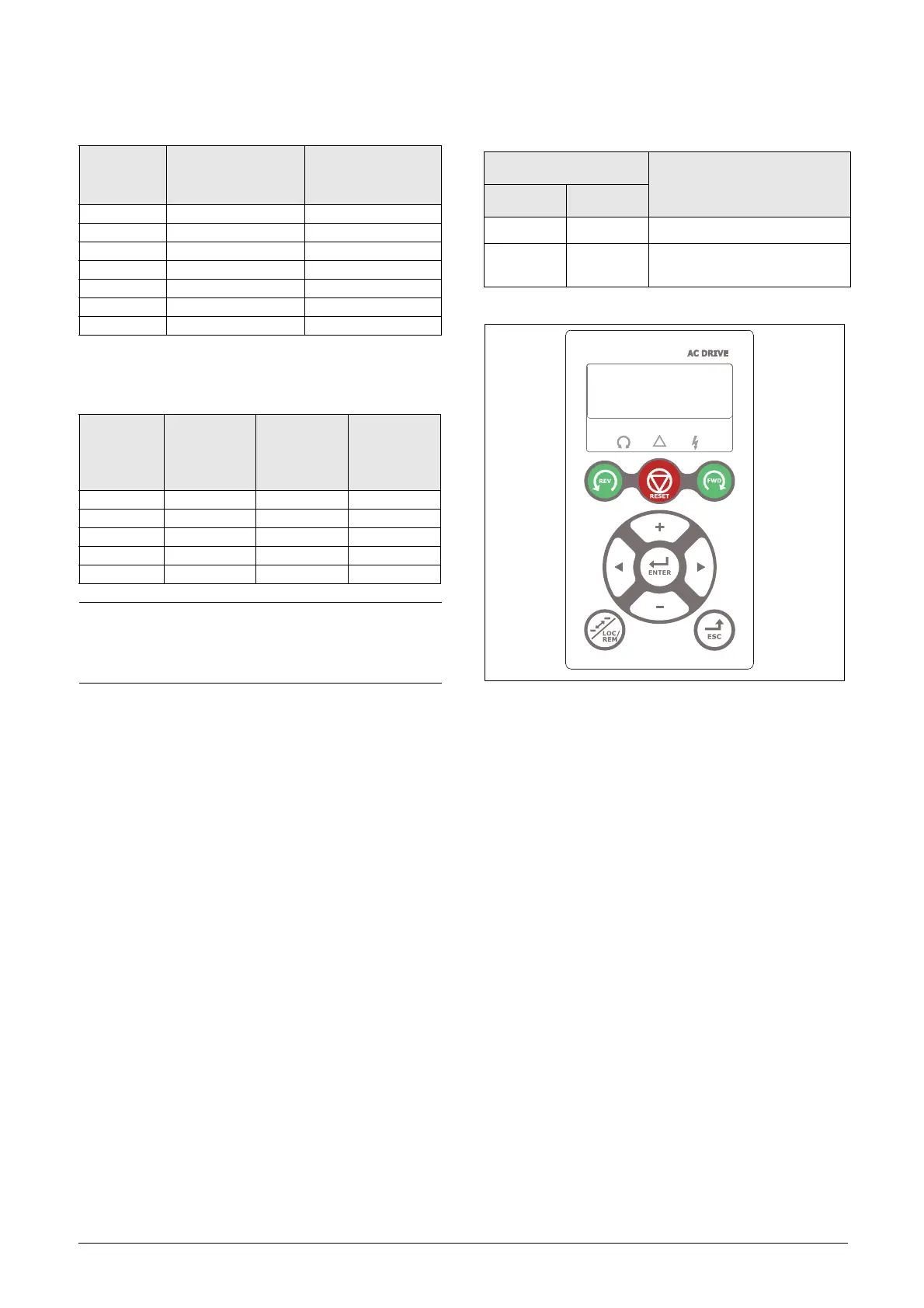

Fig. 95 Control panel with 4-line display.
The display is back lit and consists of 4 rows, each with
space for 20 characters. The Control panel is equipped with
real time clock function. This means that actual date and
time will be shown at e.g. a trip condition.
There is also an optional Control panel with Bluetooth
communication available for connection with cellphone or
tablet.
Table 31 Brake resistor AFR/AFG46 V types
Type
Rmin [ohm] if
supply 380–415
V
AC
Rmin [ohm] if
supply 440–480
V
AC
-175 3.8 4.4
-250 2.7 3.1
-375 2 x 3.8 2 x 4.4
-500 2 x 2.7 2 x 3.1
-750 3 x 2.7 3 x 3.1
-1K0 4 x 2.7 4 x 3.1
-1K5 6 x 2.7 6 x 3.1
Table 32 Brake resistor AFR/AFG69 V types
Type
Rmin [ohm]
if supply
500–525
V
AC
Rmin [ohm]
if supply
550–600
V
AC
Rmin [ohm]
if supply
660–690
V
AC
-175 4.9 5.7 6.5
-350 2 x 4.9 2 x 5.7 2 x 6.5
-525 3 x 4.9 3 x 5.7 3 x 6.5
-700 4 x 4.9 4 x 5.7 4 x 6.5
-1K05 6 x 4.9 6 x 5.7 6 x 6.5
NOTE: Although the AC drive will detect a failure in the
brake electronics, the use of resistors with a thermal
overload which will cut off the power at overload is
strongly recommended.
Part number
Description
IP54 IP20/21
01-6520-00 01-6521-00 4-line PPU (standard)
01-6520-10 01-6521-10
4-line PPU with Bluetooth
(optional)
