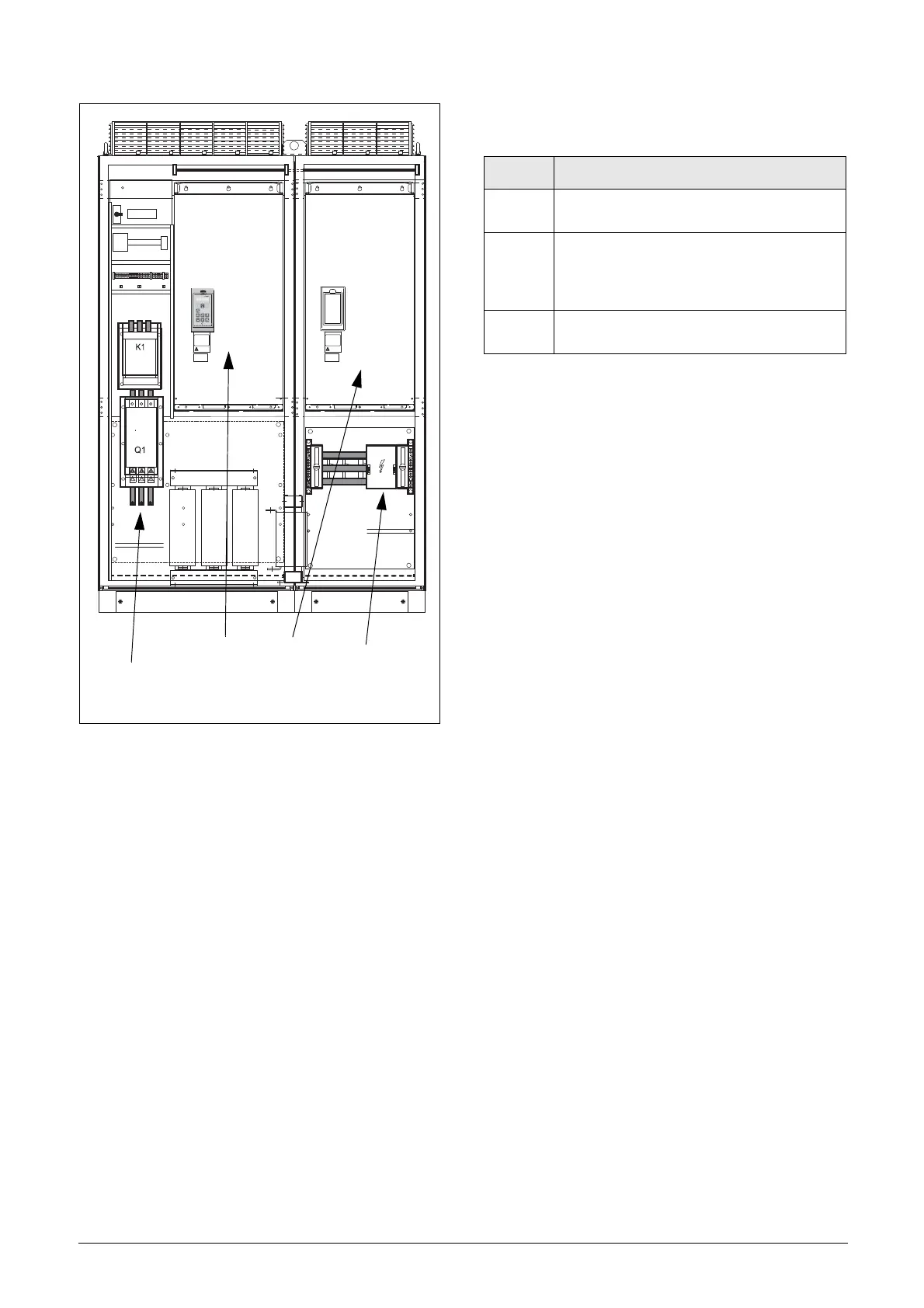

Fig. 18 Connecting motor and mains cables for FDUL/VFXR46-
375 to 500 and FDUG/VFXG46-350-500
4.2.2 Common DC-bus
For common DC-bus applications, the cabinet will contain
only the AFR/AFG part.
4.2.3 AFR/AFG
For the AFR/AFG deliveries, the cabinet only contains AFR/
AFG parts.
4.3 Cable specifications
L2L2
L1L1
RITTALRITTALRITTALRITTAL
RITTALRITTAL
RITTALRITTALRITTALRITTALRITTALRITTALRITTALRITTAL
RITTALRITTAL
MotorMotor
MotorMotor
Mains connection
Remove cover
AFR/AFG
VSI
to connect
Motor cables
L1, L2, L3
U, V, W
Table 6 Cable specifications
Cable Cable specification
Mains
Power cable suitable for fixed installation for the
voltage used.
Motor
Symmetrical three conductor cable with
concentric protection (PE) wire or a four
conductor cable with compact low-impedance
concentric shield for the voltage used.
Control
Control cable with low-impedance shield,
screened.
