Emotron AFR 2.0 Series User Manual

20 Mounting CG Drives & Automation 01-7318-01r1
3.3 Mounting AFR/AFG/VSI
power modules (inside the
cabinet)

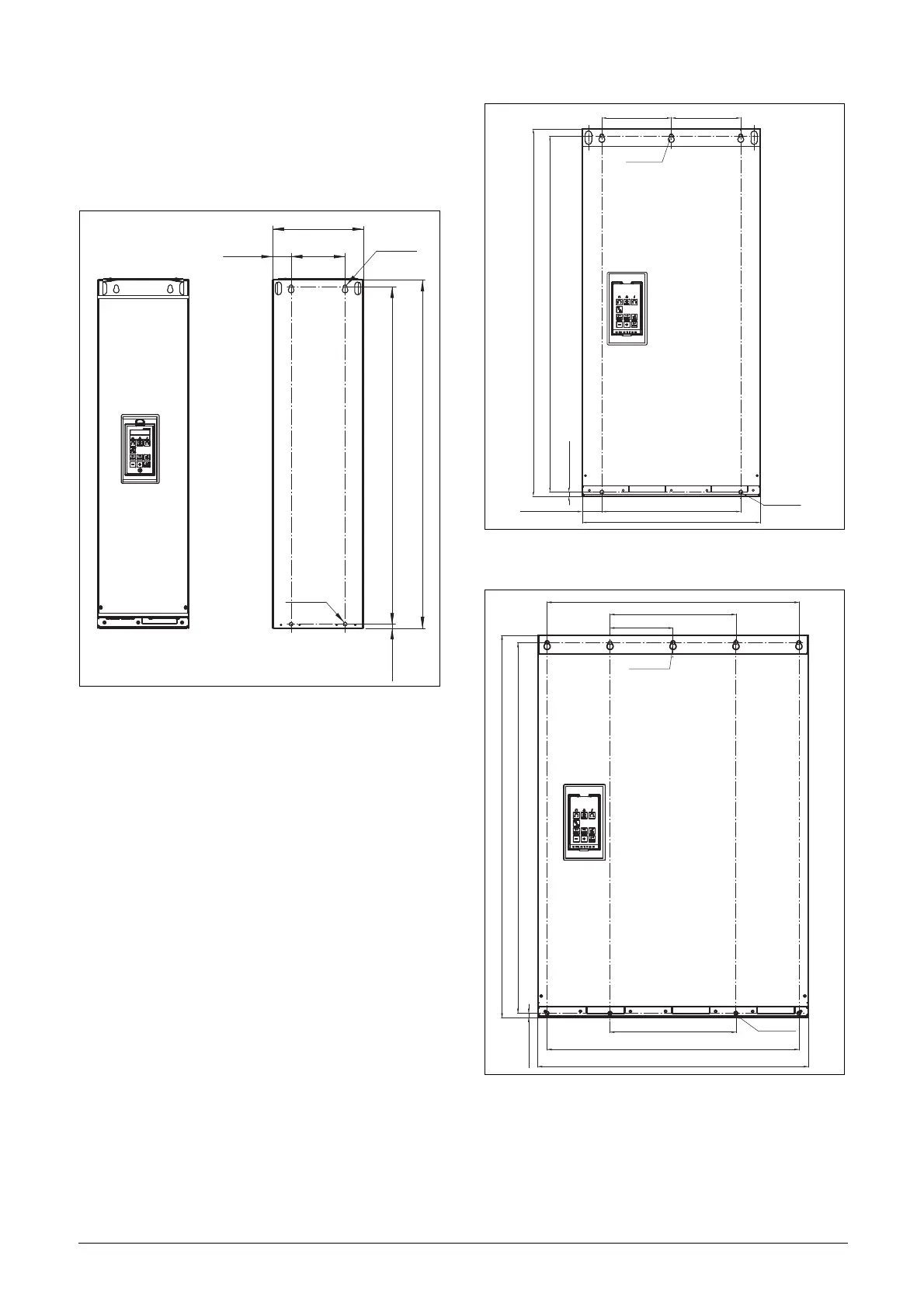

Following figures provide mounting guidelines when
mounting AFR/AFG/VSI power modules inside the cabinet.
Fig. 14 Single PEBB frame (frame size FS), models
AFR/AFG46-175 to AFR/AFG46-250
Fig. 15 Dual PEBB frame (frame size H), models
AFR/AFG46-275 to AFR/AFG46-500
Fig. 16 Three PEBB frame (frame size I), models
AFR/AFG46-750
For the higher model dimensions, contact your supplier for
more information or visit www.cgglobal.com or
www.emotron.com.
160(6.3 in)
55(2.2 in)
M10(2x)
12(0.47 in)
1000(39.4 in)
1032(40.6 in)
270(10.6 in)
M10(2x)
195(7.7 in) 195(7.7 in)
M10(3x)
12(0.47 in)
1032(40.6 in)
1000(39.4 in)
390(15.3 in)
500(19.7 in)
55(2.2 in)
M10(2x)
1032(40.6 in) 1000(39.4 in)
12(0.47 in)
M10(4x)
M10(5x)
340(13.4 in)
340(13.4 in)
170(6.7 in)
680(26.8 in)
680(26.8 in)
730(28.7 in)
