CG Drives & Automation 01-7318-01r1 Mounting 19

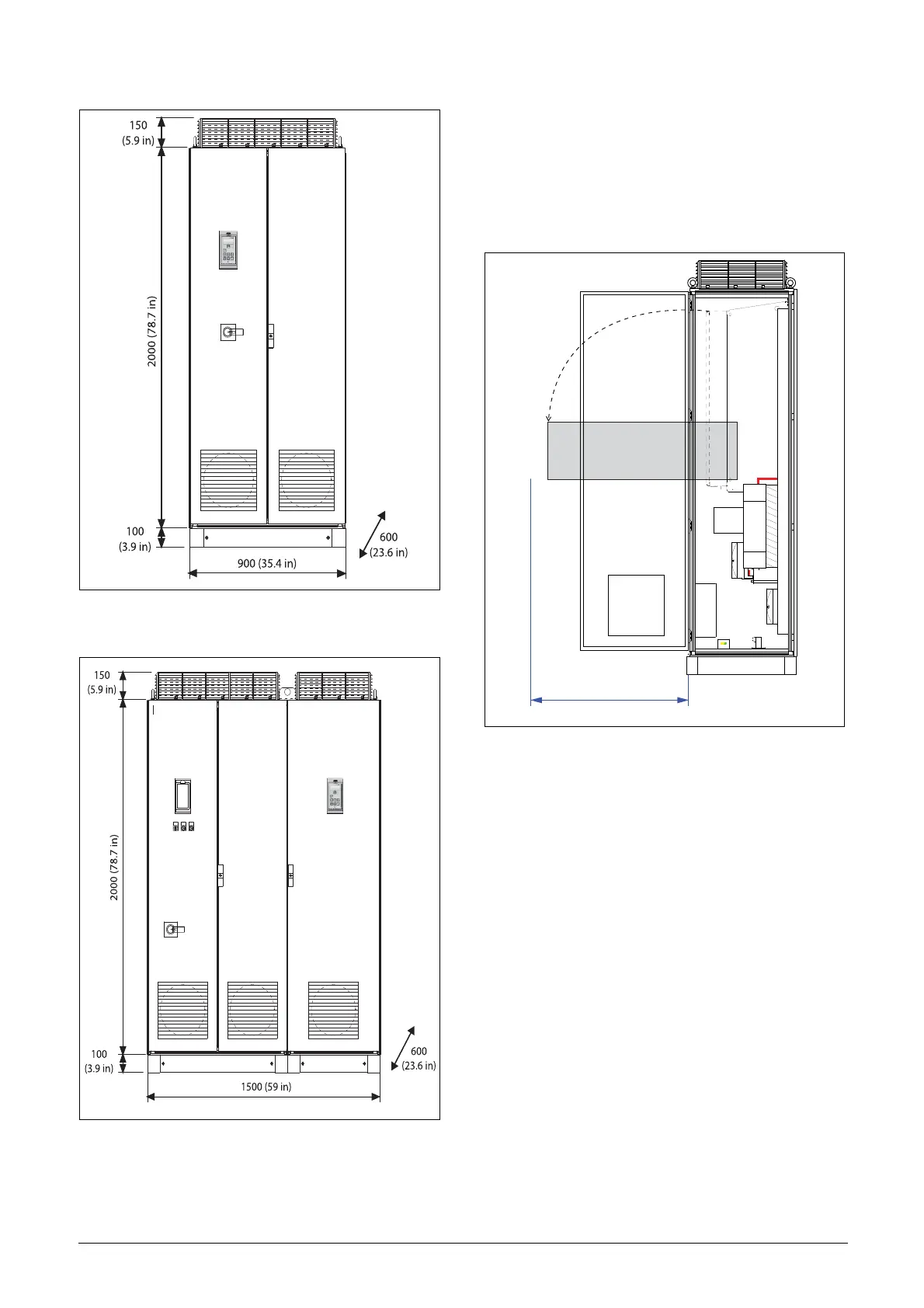

3.2.2 Mounting schemes
Fig. 11 FDUL/VFXR46, FDUG/VFXG46: Model 175 to 250
Fig. 12
FDUL/VFXR46, FDUG/VFXG46
: Model 375 to 500
3.2.3 Recommended free space in
front of cabinet
The cabinet mounted AC drives are designed in modules, so
called PEBBs. These PEBBs can be folded out to be
replaced. To be able to remove a PEBB in the future, we
recommend 1.30 meter (39.4 in) free space in front of the
cabinet, see Fig. 13.
Fig. 13 Recommended free space in front of the cabinet.
RITTAL
RITTAL
RITTAL
RITTAL
RITTAL
RITTAL
