Emotron VFX 2.0 User Manual

130 Functional Description Emotron AB 01-4429-01r2

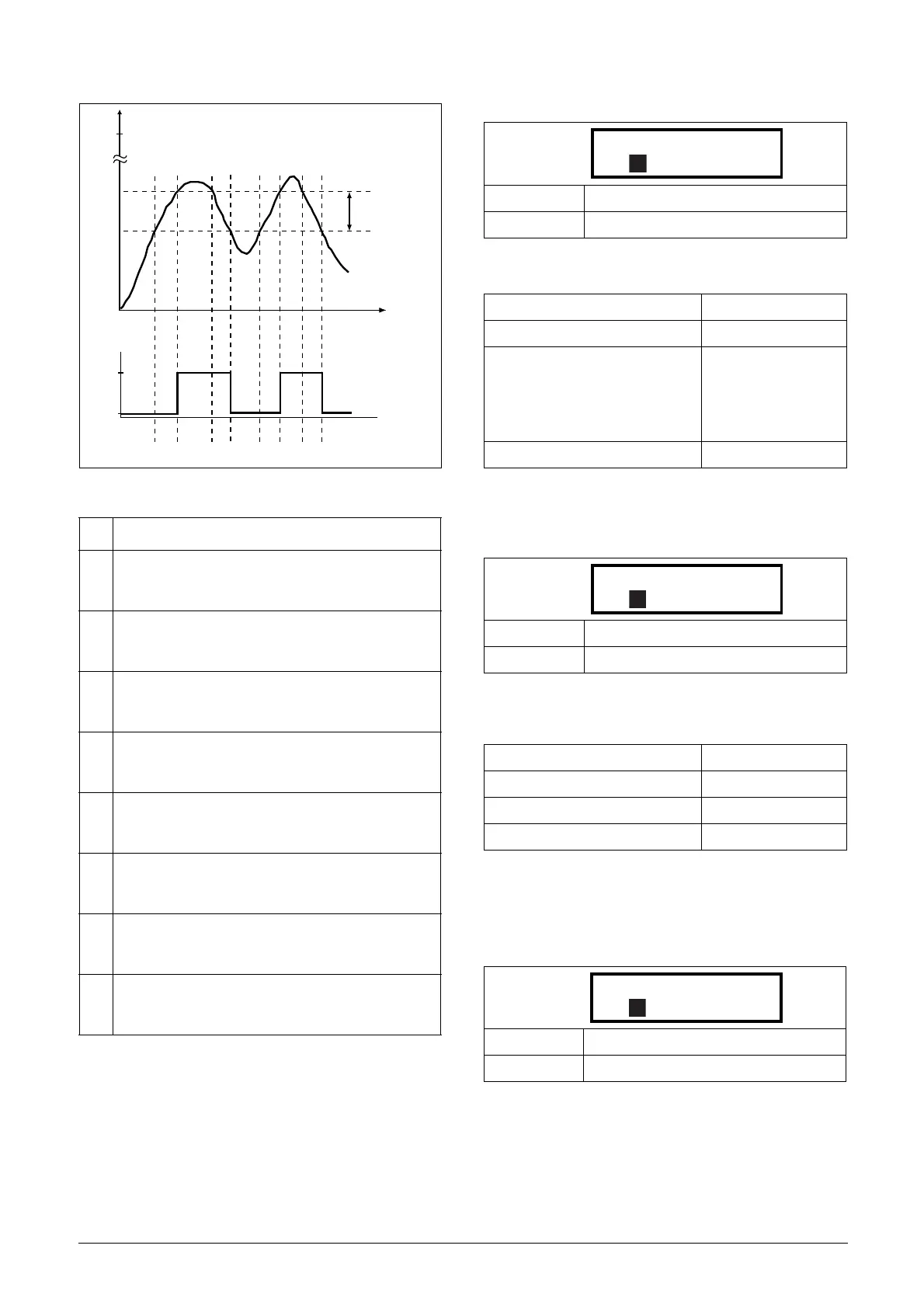

Fig. 97
Analogue Comparator 1 Level Low
[613]
Selects the analogue comparator constant low level accord-
ing to the selected value in menu [611].
For default value see selection table for menu [612].
Communication information
Analogue Comparator 2 Value [614]
Function is identical to analogue comparator 1 value.
Communication information
Analogue Comparator 2 Level High
[615]
Function is identical to analogue comparator 1 level high.
No. Description
1
The reference signal passes the Level LO value from
below (positive edge), the comparator CA1 does not
change, output stays low.
2
The reference signal passes the Level HI value from
below (positive edge), the comparator CA1 output is
set high.
3
The reference signal passes the Level HI value from
above (negative edge), the comparator CA1 does not
change, output stays high.
4
The reference signal passes the Level LO value from
above (negative edge), the comparator CA1 is reset,
output is set low.
5
The reference signal passes the Level LO value from
below (positive edge), the comparator CA1 does not
change, output stays low.
6
The reference signal passes the Level HI value from
below (positive edge), the comparator CA1 output is
set high.
7
The reference signal passes the Level HI value from
above (negative edge), the comparator CA1 does not
change, output stays high.
8
The reference signal passes the Level LO value from
above (negative edge), the comparator CA1 is reset,
output is set low.
1
2
3
4
5
6
7
8
t
MAX
speed
[343]
300
200
CA1 Level HI [612]
CA1 Level LO [613]
Hysteresis
Output
CA1
High
Low
Default: 200 rpm
Range: Enter a value for the low level.
Modbus Instance no/DeviceNet no: 43403
Profibus slot/index 170/52
Fieldbus format
Long,
1=1 W, 0.1 A, 0.1 V,
0.1 Hz, 0.1°C, 1 kWh,
1H, 1%, 1 rpm or 0.001
via process value
Modbus format EInt
Default: Torque
Selections: Same as in menu [611]
Modbus Instance no/DeviceNet no: 43404
Profibus slot/index 170/53
Fieldbus format UInt
Modbus format UInt
Default: 20%
Range: Enter a value for the high level.
613 CA1 Level LO
Stp 200rpm
A
614 CA2 Value
Stp Torque
A
615 CA2 Level HI
Stp 20%
A
