Emotron VFX 2.0 User Manual

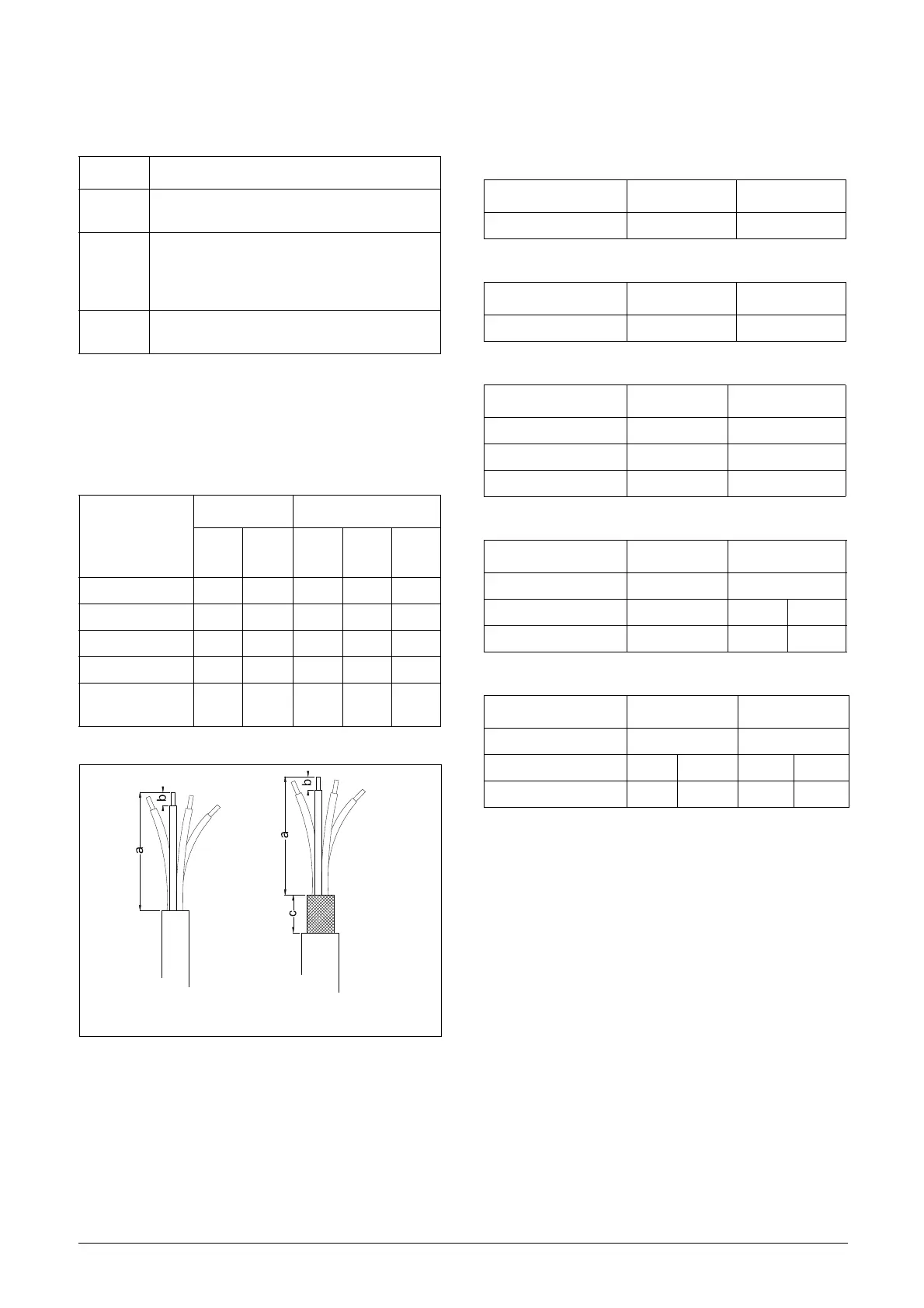

Emotron AB 01-4429-01r2 Installation 19
3.4 Cable specifications
3.5 Stripping lengths
Fig. 27 indicates the recommended stripping lengths for
motor and mains cables.
Fig. 27 Stripping lengths for cables
3.5.1 Dimension of cables and fuses
Please refer to the chapter Technical data, section 14.6, page
167.
3.5.2 Tightening torque for mains
and motor cables
Table 7 Cable specifications
Cable Cable specification
Mains
Power cable suitable for fixed installation for the
voltage used.
Motor
Symmetrical three conductor cable with concen-
tric protection (PE) wire or a four conductor cable
with compact low-impedance concentric shield
for the voltage used.
Control
Control cable with low-impedance shield,
screened.
Table 8 Stripping lengths for mains and motor cables
Model
Mains cable Motor cable
a
(mm)
b
(mm)
a
(mm)
b
(mm)
c
(mm)
003-018 90 10 90 10 20
026–046 150 14 150 14 20
060–073 130 11 130 11 34
090-175 160 16 160 16 41
VFX48-210–250
VFX69-090-175
170 24 170 24 46
(06-F45-cables only)
MotorMains
Table 9 Model VFX48/52 003 to 046
Brake chopper Mains/motor
Tightening torque, Nm 1.2-1.4 1.2-1.4
Table 10 Model VFX40/50 060 to 073
All cables 60 A All cables 73 A
Tightening torque, Nm 1.5 3.2
Table 11 Model VFX48 090 to 109
Brake chopper Mains/motor
Block, mm
2
95 95
Cable diameter, mm
2
16-95 16-95
Tightening torque, Nm 14 14
Table 12 Model VFX48 146 to 175
Brake chopper Mains/motor
Block, mm
2
95 150
Cable diameter, mm
2
16-95 35-95 120-150
Tightening torque, Nm 14 14 24
Table 13 Model VFX48 210 to 250 and VFX69 090 to 175
Brake chopper Mains/motor
Block, mm
2
150 240
Cable diameter, mm
2
35-95 120-150 35-70 95-240
Tightening torque, Nm 14 24 14 24
