24 Control Connections Emotron AB 01-4429-01r2
4.5 Connecting the Control
Signals
4.5.1 Cables
The standard control signal connections are suitable for
stranded flexible wire up to 1.5 mm
2
and for solid wire up to
2.5 mm
2
.

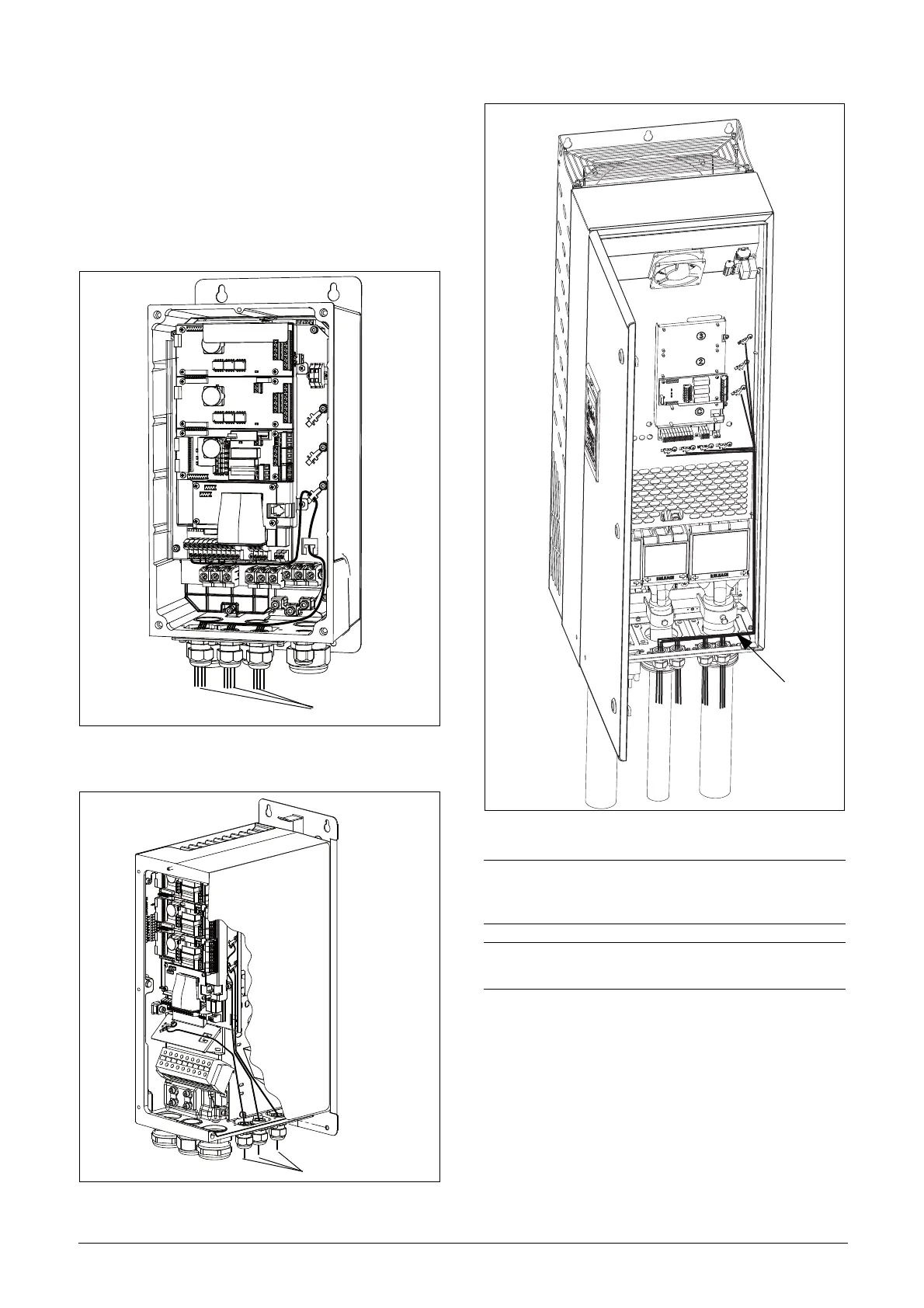

Fig. 30 Connecting the control signals 003 to 018
Fig. 31 Connecting the control signals 026 to 046
Fig. 32 Connecting the control signals 060 to 175
NOTE: The screening of control signal cables is
necessary to comply with the immunity levels given in
the EMC Directive (it reduces the noise level).
NOTE: Control cables must be separated from motor and
mains cables.
