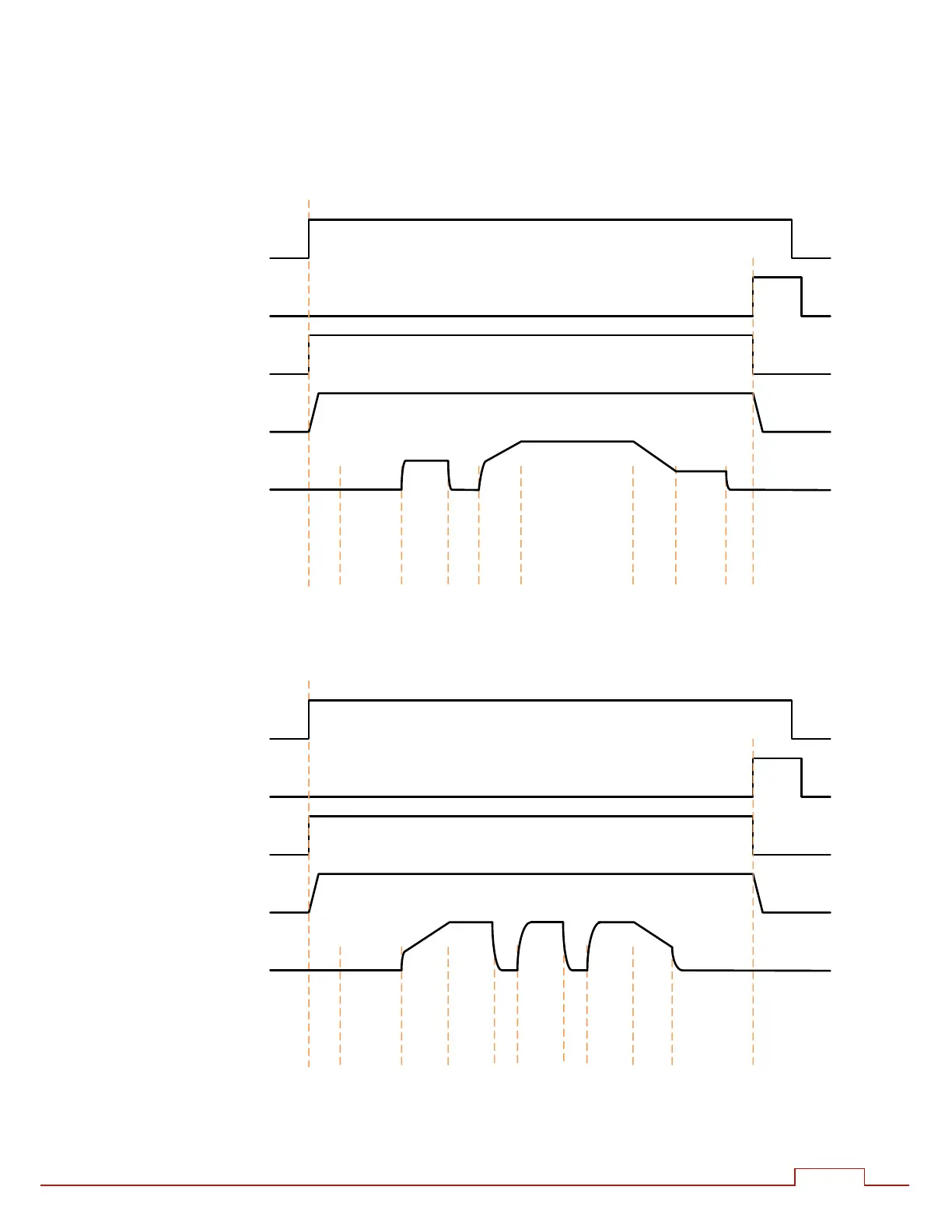

2.4. Timing diagrams
2.4.1. Spot weld
Pulsations = 1, Force profile = Off.
EOSO/P
WAVO/P
ForceO/P
Current
Presqueeze
Squeeze
Mainheat
Hold
Cool1
Pre‐heat
Upslope
Downslope
STARTI/P
Post‐heat
2.4.2. Spot pulsation
Pre-heat = 0, Cool1 = 0, Post-heat = 0, Pulsations = 3, Force profile = off.
EOSO/P
WAVO/P
ForceO/P
Current
Presqueeze
Squeeze
Mainheat
Hold
Upslope
Downslope
STARTI/P
Mainheat
Mainheat
Cool2
Cool2
