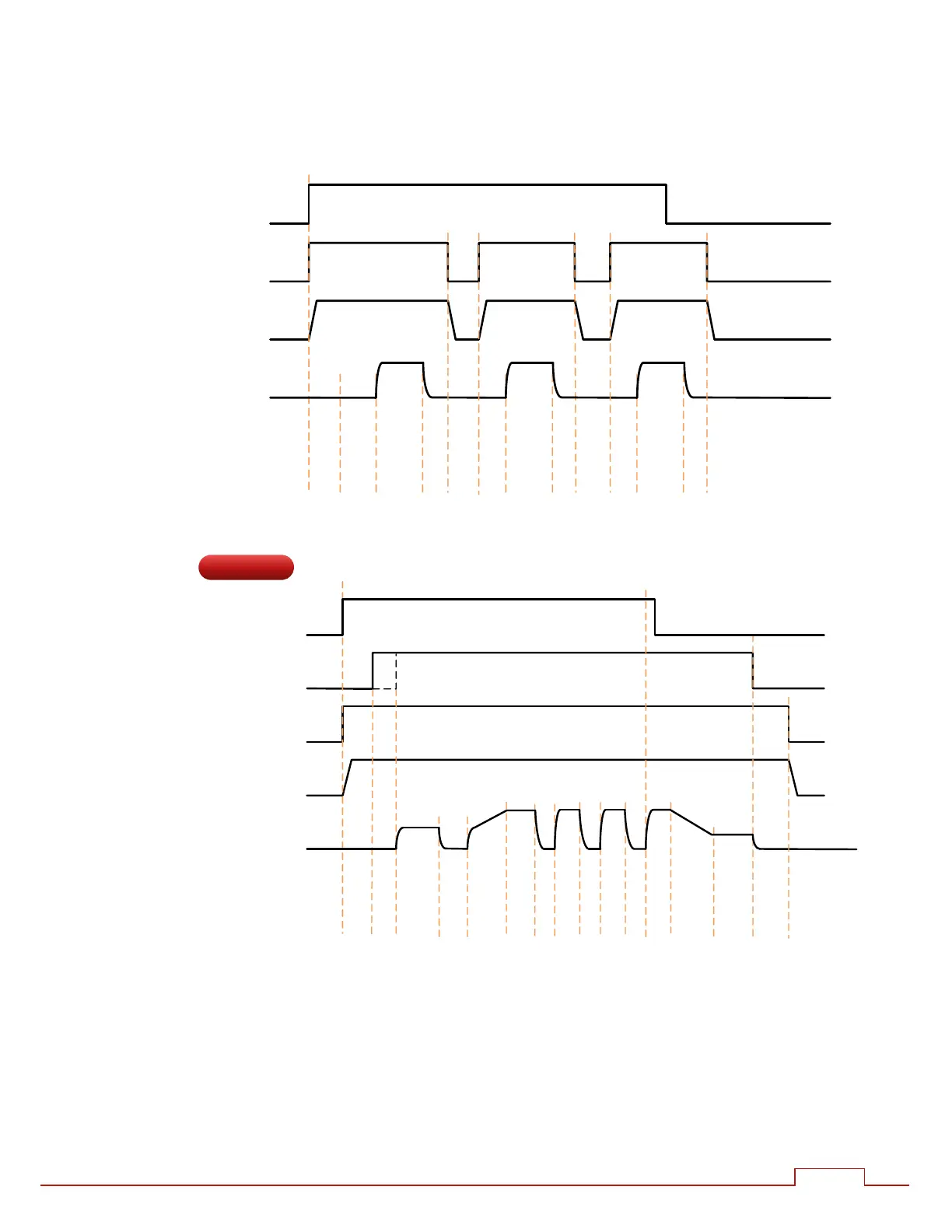

2.4.3. Spot repeat
Pre-heat = 0, Cool1 = 0, Upslope = 0, Downslope = 0, Post-heat = 0, Pulsations = 1, Force
profile = Off.
WAVO/P
ForceO/P
Current
Presqueeze
Squeeze
Hold
STARTI/P
Mainheat
Off
Hold
Off
Squeeze
Hold
Squeeze
Mainheat Mainheat
2.4.4. Seam
MOTORO/P
WAVO/P
ForceO/P
Current
Presqueeze
Squeeze
Mainheat
Hold
Cool1
Pre‐heat
Upslope
Downslope
STARTI/P
Post‐heat
Mainheat
Mainheat Mainheat
Cool2 Cool2 Cool2
The position of rising edge of the MOTOR output depends on the selection of the
Second Stage configuration parameter.
Continuous seam operation is obtained when Cool 2 = 0.
A spot weld (in Seam mode) can be produced by using the pre-heat with
Main heat = 0.
