Entron iPAK2

iPAK2 User Guide
21
2.4.6. Second stage
The second stage configuration parameter allows the user to select where in the sequence
the second-stage test is to be performed.
Second Stage = Off
The input is not used. The MOTOR output will not be driven.

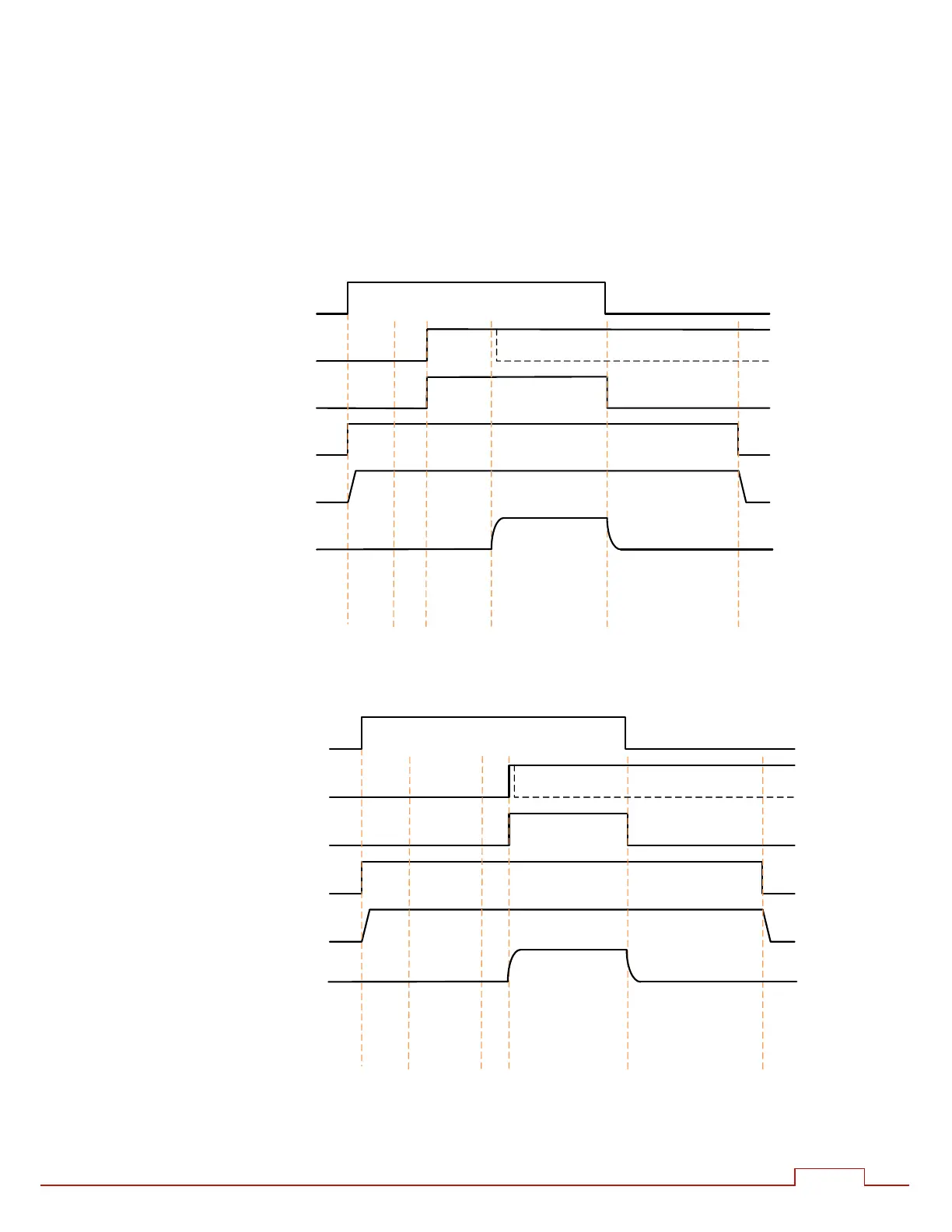

Second Stage = Before Squeeze
The input is checked before the squeeze time runs.
MOTORO/P
WAVO/P
ForceO/P
Current
Presqueeze
Squeeze
Hold
STARTI/P
2
nd
StageI/P
Second Stage = After Squeeze
The input is checked after the squeeze time runs.
MOTORO/P
WAVO/P
ForceO/P
Current
Presqueeze
Squeeze
Hold
STARTI/P
2
nd
StageI/P
