AcuLaser C2800/C2800D/C3800/C3800D Revision C
DISASSEMBLY/REASSEMBLY Disassembly/Reassembly 218
Confidential

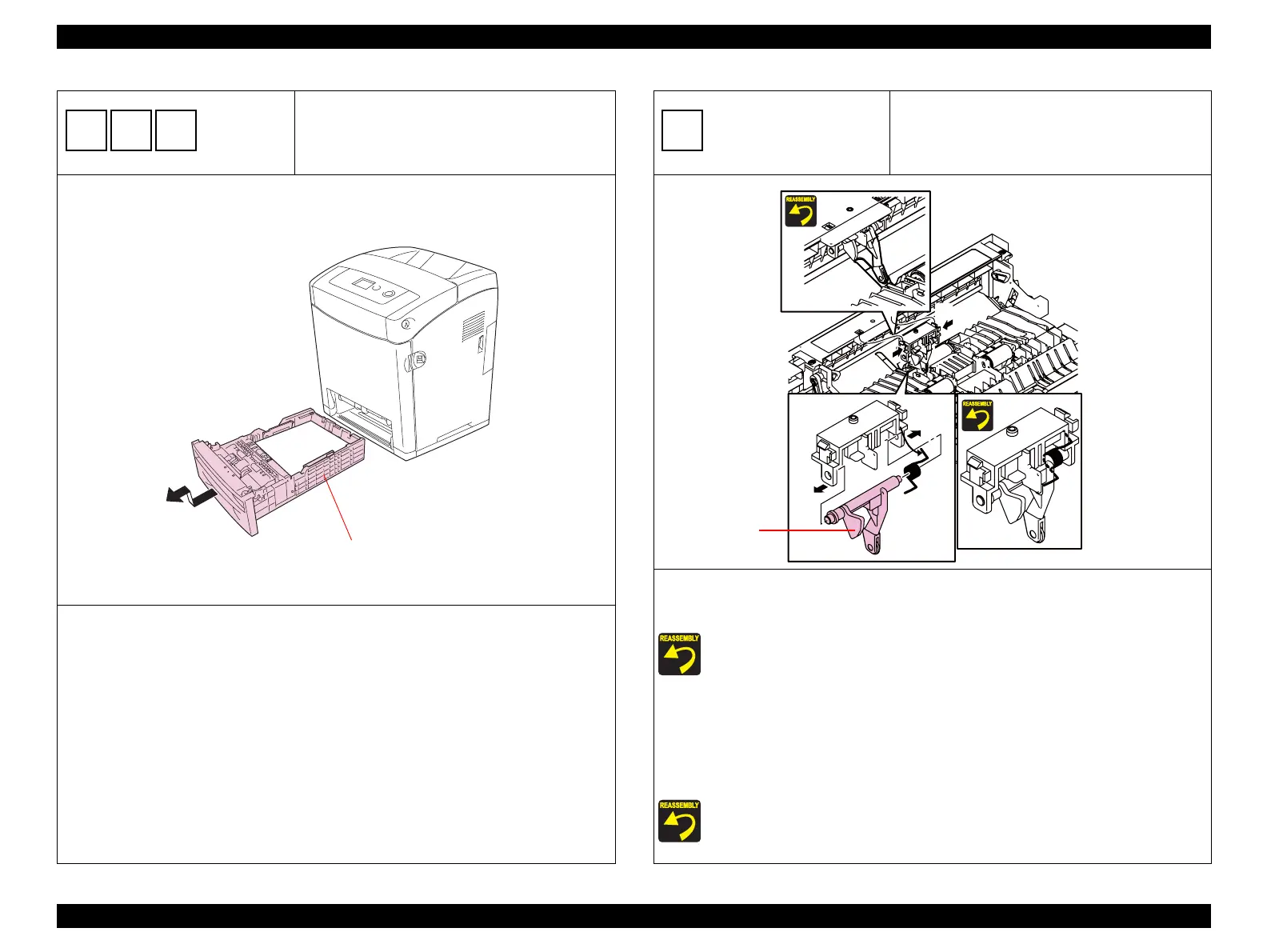

CASSETTE ASSY 550 IOT
1. Pull the CASSETTE ASSY 550 IOT out.
A
B
C
CASSETTE ASSY 550 IOT
ACTUATOR NO PAPER MSI
1. Pinch the ACTUATOR ASSY MSI as shown in the figure to release the tabs, and remove the
ACTUATOR ASSY MSI from the HANDLE CST.
Install the ACTUATOR NO PAPER MSI so that it is inserted into the hole of the PLATE
ASSY BOTTOM.
2. Release the SPRING NO PAPER from the HOLDER ACTUATOR.
3. Expand the left and right edges of the HOLDER ACTUATOR as shown in the figure, pull out the
shaft of the ACTUATOR NO PAPER MSI, and remove the ACTUATOR NO PAPER MSI together
with the SPRING NO PAPER.
4. Remove the SPRING NO PAPER from the shaft of the ACTUATOR NO PAPER MSI.
Be sure to hitch the SPRING REGI SNSR A, B on the ACTUATOR A, B, and CHUTE
REGI securely.
A
Kmy03205E
A
1)
2)
4)
3)
3)
ACTUATOR NO
PAPER MSI
