COVER FRONT MSI

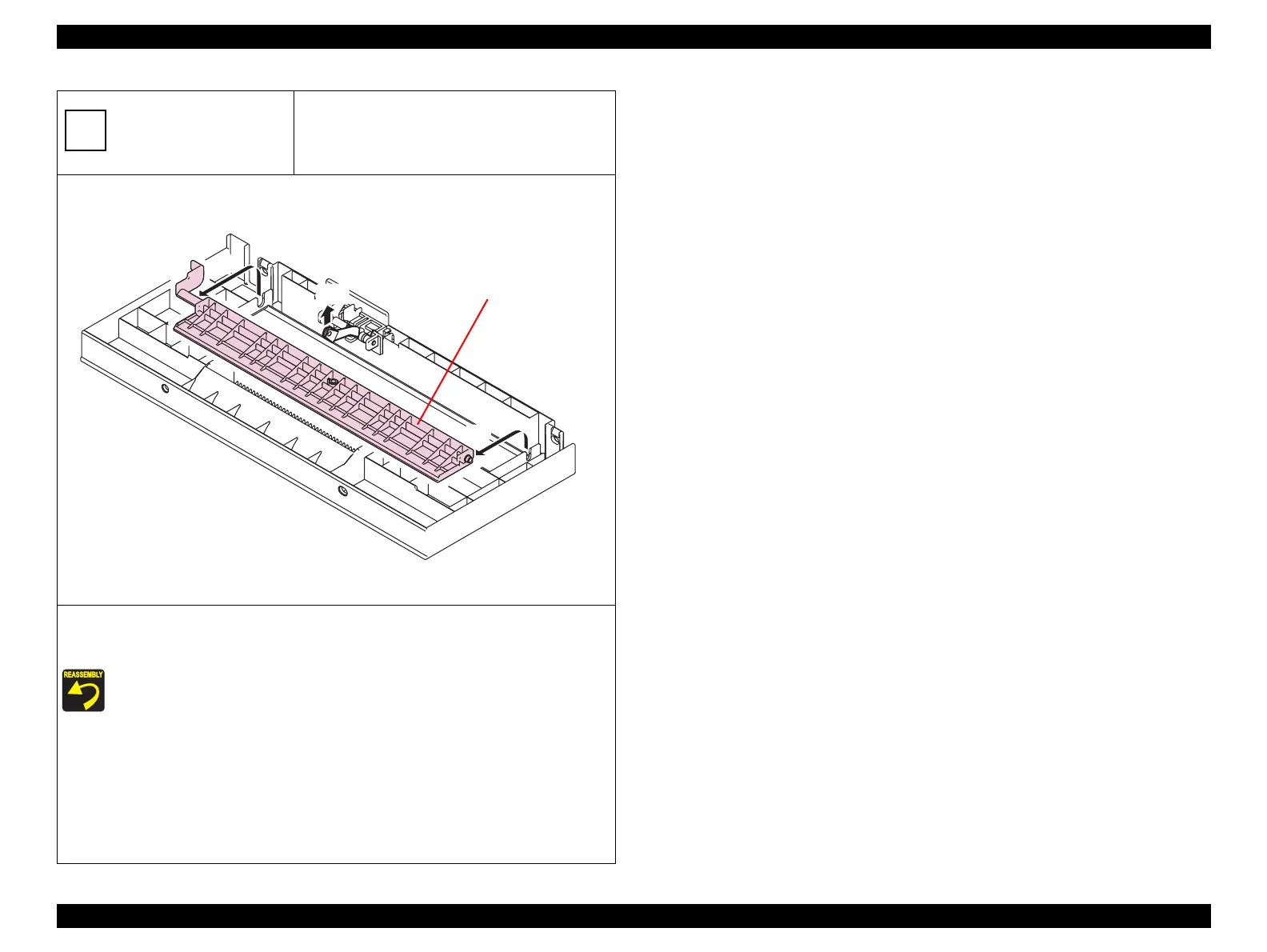

1. While lifting up the ACTUATOR NO PAPER MSI, pull out the shaft on both ends of the COVER
FRONT MSI from the HANDLE CST, and remove the COVER FRONT MSI.
Install the COVER FRONT MSI so that the ACTUATOR NO PAPER MSI is placed on the
COVER FRONT MSI.
C
Kmy03203E
A
1)-1
1)-2
1)-2
COVER FRONT MSI
