SENSOR PHOTO:TONER CARTRIDGE
C H E C K
P O I N T
There are four SENSOR PHOTO:TONER CARTRIDGEs and they can be removed in the
same manner.

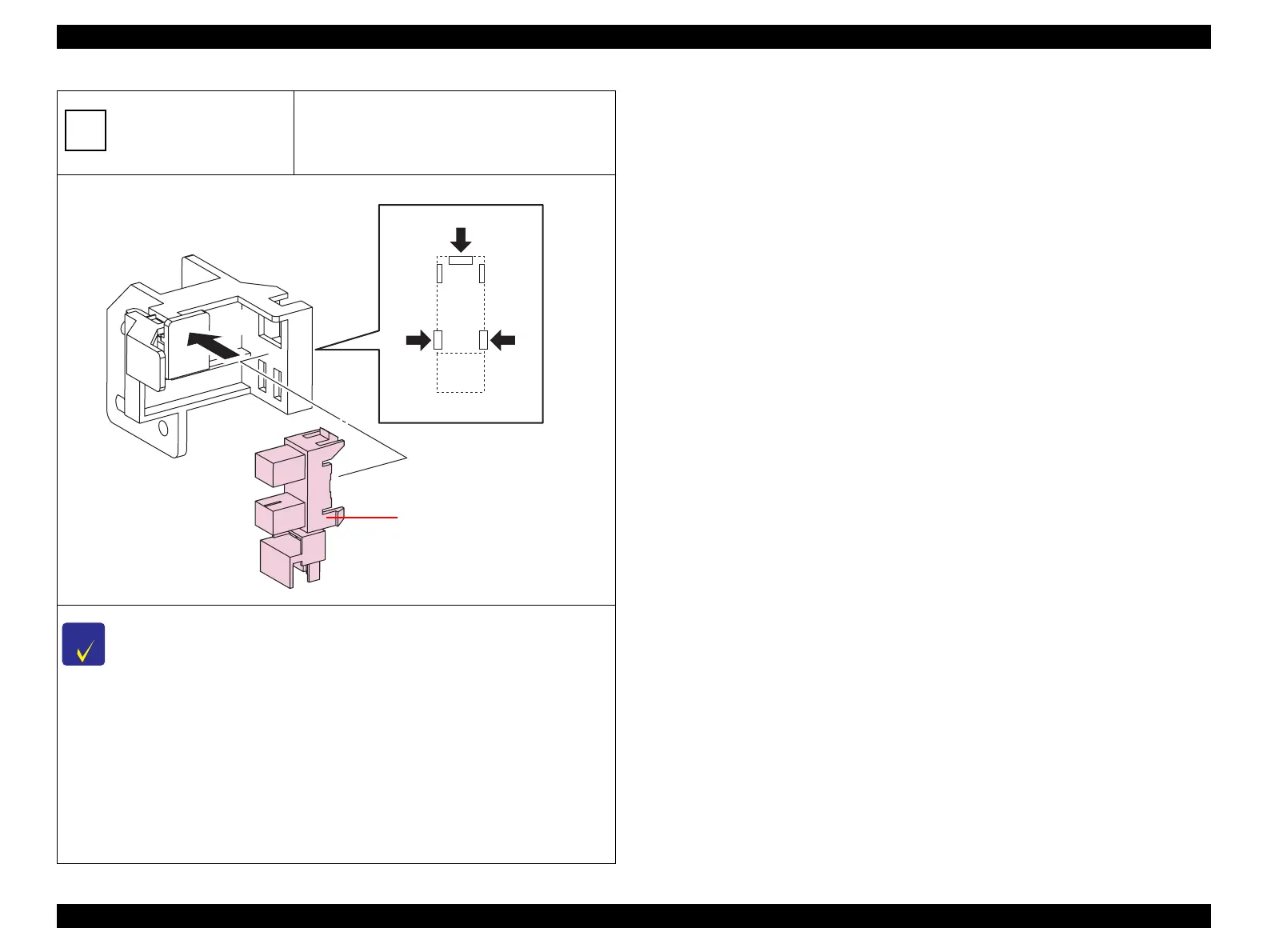

1. While holding down the ACTUATOR SENSOR CRU, release the three tabs that secure the SENSOR
PHOTO:TONER CARTRIDGE to the BRACKET SENSOR CRU, and remove the SENSOR
PHOTO:TONER CARTRIDGE.
D
Kmy03037EA
1)-1
1)-2
1)-3
SENSOR PHOTO:
TONER CARTRIDGE
To Next Page
