COVER REAR

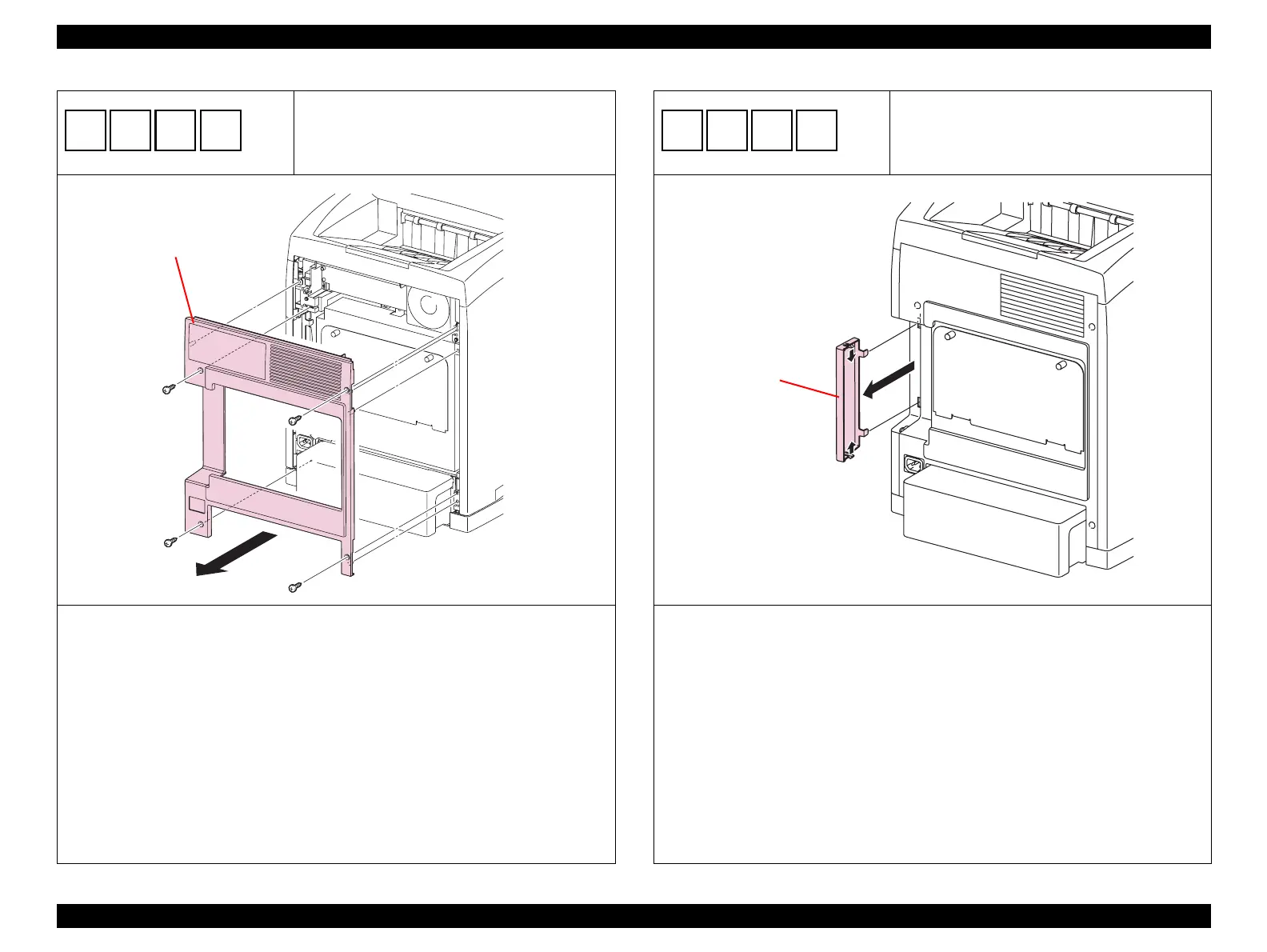

1. Remove the four screws (silver, self-tapping, 10 mm) that secure the COVER REAR to the main unit.
2. Remove the COVER REAR from the main unit.
A
B
C
D
1)
1)
1)
1)
2)
Kmy03003E
A
COVER REAR
COVER SIDE IF
1. Release the two tabs on the COVER SIDE IF, and remove the COVER SIDE IF.
A
B
C
D
Kmy03008E
A
1)-1
1)-1
1)-2
COVER SIDE IF
