Epson DFX 9000 Revision B
Disassembly and Assembly CARRIER UNIT 194
15. Slowly feed the CARRIER CABLE UNIT inward toward the Carrier
Unit through the holes of the SIDE FRAME, RIGHT. (2 places)
16. Remove the CARRIER UNIT together with the CARRIER CABLE
UNIT and the SP BELT.

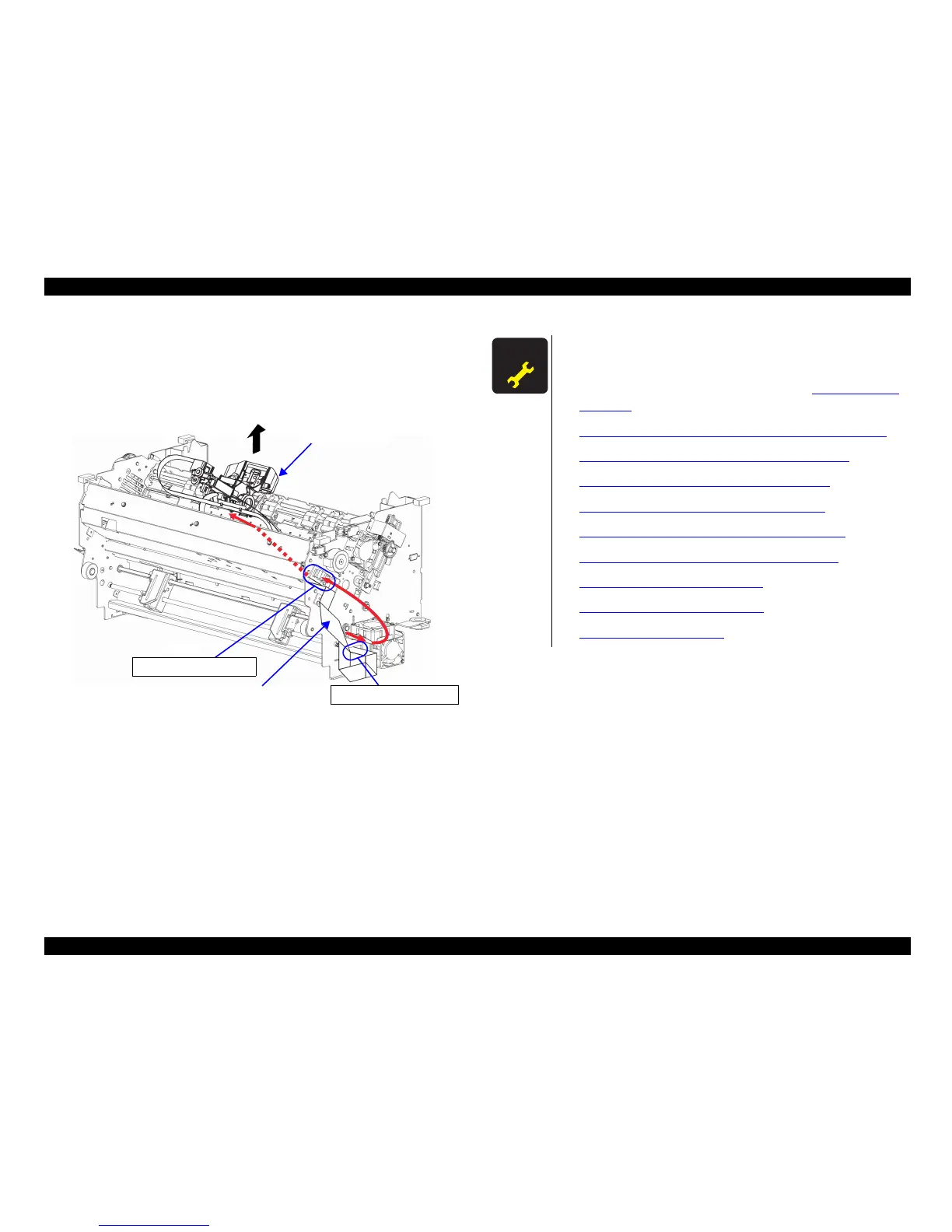

Figure 4-78. CARRIER UNIT Removal (2)
Pull out of the printer.
Feed to the inside.
CARRIER CABLE UNIT
15)-1
15)-2
CARRIER UNIT
16)
A D J U S T M E N T
R E Q U I R E D
After removing or replacing the CARRIER UNIT, be sure
to perform the following maintenance and adjustments.
1. Lubricate the oil felt on the Carrier Unit, Figure 6-10 on
page 267
2. CR drive belt (SP BELT) tension adjustment (p. 220).
3. Card guide mount position adjustment (p. 227)
4. LF Drive Belt Tension Adjustment (p. 222)
5. TOF sensor sensitivity adjustment (p. 235)
6. APTC thickness detection adjustment (p. 238)
7. APTC detection position adjustment (p. 241)
8. Top margin adjustment (p. 245)
9. Left margin adjustment (p. 247)
10. Bi-D adjustment (p. 250)
