Epson Expression 10000XL Service Manual

Expression 10000XL Revision A
PRODUCT DESCRIPTION Interface Specifications 15
1.3 Interface Specifications
1.3.1 Overview

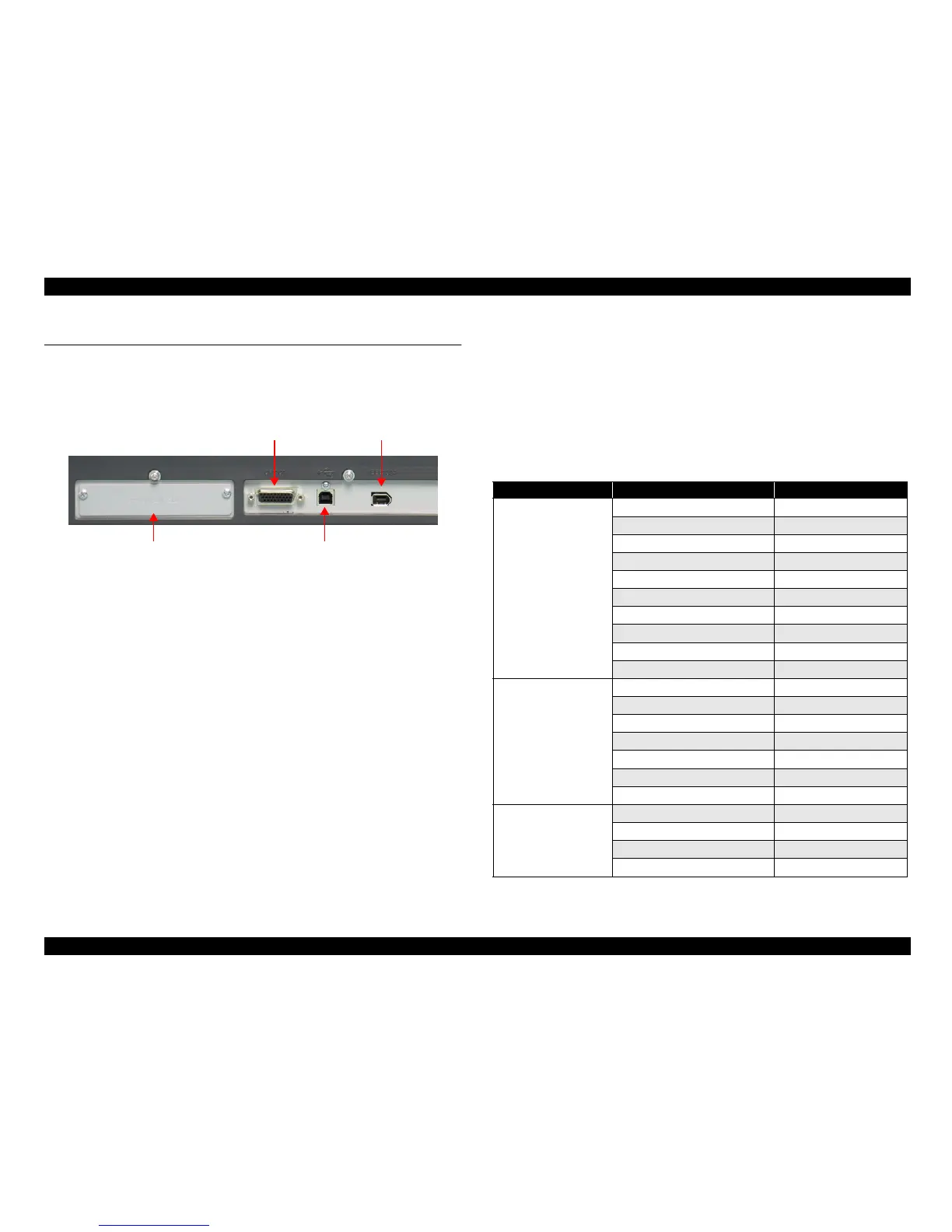

The interface layout of this scanner is shown below.
Figure 1-3. Interface Layout of ES-10000G
1.3.2 IEEE1394

IIEEE1394a-2000 compliant (400Mbps)

ANSI X3T10 Serial Bus Protocol 2 Revision 4L (SBP-2) compliant

One 6-pin connector
1.3.3 USB2.0

Universal Serial Bus Specification Revision 2.0 compliant

Hi-Speed device (480Mbps) (Full speed capable (12Mbps))

Self-power supply

One standard B receptacle connector
1.3.4 Multi Interface Compatibility
This scanner has the USB2.0 and IEEE1394 serial bus I/F as standard, Three interfaces
are available by installing an I/F for network into the option slot.
In this case, we do not guarantee simultaneous connection to and simultaneous use of
the above three interfaces basically.
1.3.5 Control Code List
USB2.0
IEEE1394
Option
Extended slot
Table 1-2. Control Code List
Category Name Code
Execution command
ID request ESC I
Status request ESC F
Extended status request ESC f
Status setting request ESC S
Scan start ESC G
Push Button status request ESC !
Extended ID request FS I
Scanner status request FS F
Scan parameter request FS S
New scan start FS G
Data form designation
Data format setting ESC D i
Resolution setting ESC R n1 n2
Zoom setting ESC H i1 i2
Scanning range setting ESC A n1 n2 n3 n4
Color setting ESC C i
Mirror image inversion setting ESC K i
Scan parameter setting FS W
Correction processing
Lightness correction setting ESC L i
Gamma correction setting ESC Z i
Gamma correction table setting ESC z i d[256]
Edge enhancement setting ESC Q i

Epson Expression 10000XL Specifications

Resolution

optical resolution	2400 dpi
maximum resolution with Micro Step Drive technology	2400 x 4800 dpi
interpolated resolution	12, 800 x 12, 800 dpi

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without optional unit	45W
power consumption operating with optional unit	55W
power consumption sleep mode without optional unit	6W

Operating Environment

operating temperature	41ºF to 95ºF (5ºC to 35ºC)
operating humidity	10% to 80% (no condensation)
storage humidity	10% to 85% (no condensation)

Interface and Connectivity

interface	USB 1.1/2.0, IEEE 1394 (FireWire), optional Ethernet
system compatibility	Windows 98SE, 2000 Me, XP; Macintosh OS 9.1 or later

Weight and Dimensions

maximum scan area	12.2" x 17.2" (310mm x 437mm)
width	25.8" (656mm)
depth	18.0" (458mm)
height	6.2" (158mm)
weight	28.7 lb (13 kg approx.)
