Epson Expression 10000XL Service Manual

Expression 10000XL Revision A
PRODUCT DESCRIPTION Operational Specifications 16
1.4 Operational Specifications
1.4.1 Operation Switches

OPERATE Switch

Used to switch power ON/OFF.

When powered ON, the scanner performs initialization operation.

Scan Navigation Button

Scanning start (for network connection)

Startup of scanner application software (for local connection)

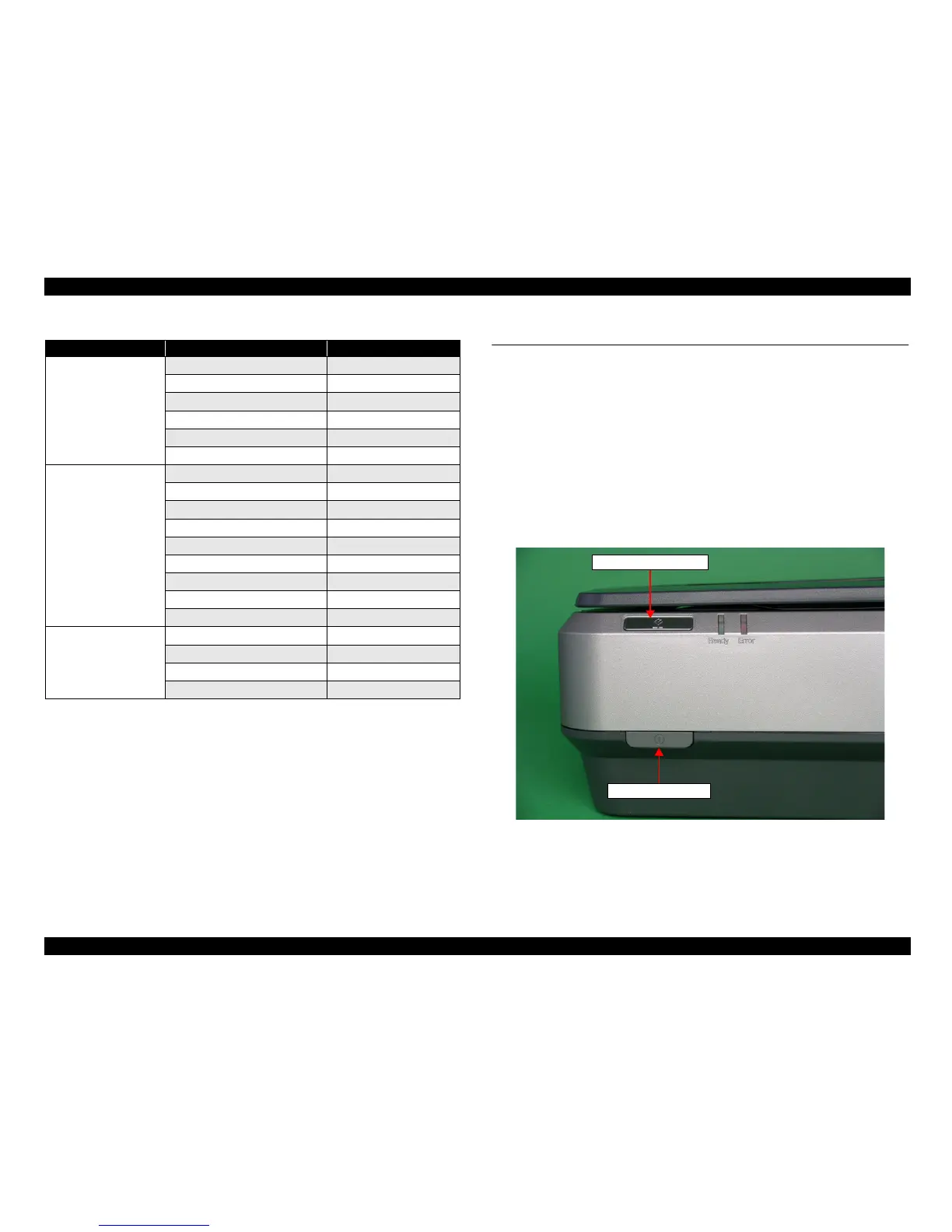

Figure 1-4. OPERATE Switch and Scan Navigation Button
Image processing
Halftone processing setting ESC B i
Area judgement processing setting ESC s i
Dither pattern setting ESC b i j d[j^2]
Color correction setting ESC M i
Color correction factor setting ESC m d[9]
Threshold value setting ESC t i
Auxiliary, etc.
Scan mode setting ESC g i
Initialization ESC @
Line counter designation ESC d i
Option control ESC e i
Film type designation ESC Ni
Focus adjustment ESC pi
Focus position state request ESC q
Paper exit FF
Paper feed PF
Control
Normal response ACK
Abnormal response NACK
Scanning stop CAN
Header STX
Table 1-2. Control Code List
Category Name Code
Scan Navigation Button
OPERATE Switch

Epson Expression 10000XL Specifications

Resolution

optical resolution	2400 dpi
maximum resolution with Micro Step Drive technology	2400 x 4800 dpi
interpolated resolution	12, 800 x 12, 800 dpi

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without optional unit	45W
power consumption operating with optional unit	55W
power consumption sleep mode without optional unit	6W

Operating Environment

operating temperature	41ºF to 95ºF (5ºC to 35ºC)
operating humidity	10% to 80% (no condensation)
storage humidity	10% to 85% (no condensation)

Interface and Connectivity

interface	USB 1.1/2.0, IEEE 1394 (FireWire), optional Ethernet
system compatibility	Windows 98SE, 2000 Me, XP; Macintosh OS 9.1 or later

Weight and Dimensions

maximum scan area	12.2" x 17.2" (310mm x 437mm)
width	25.8" (656mm)
depth	18.0" (458mm)
height	6.2" (158mm)
weight	28.7 lb (13 kg approx.)
