Epson Expression 10000XL Service Manual

Expression 10000XL Revision A
DISASSEMBLY/ASSEMBLY Disassembly Procedure 39
4.2.4 Removal of Power Supply Board
1. Remove the Housing Upper. (Refer to 4.2.3 Removal of Housing Upper)
2. Remove the five screws (CP(S-P1), M3x5:2 pcs, CP(S-P1), M3X6:2 pcs, M3x5:1 pc)
that are securing the Shield Plate, and remove the Shield Plate.

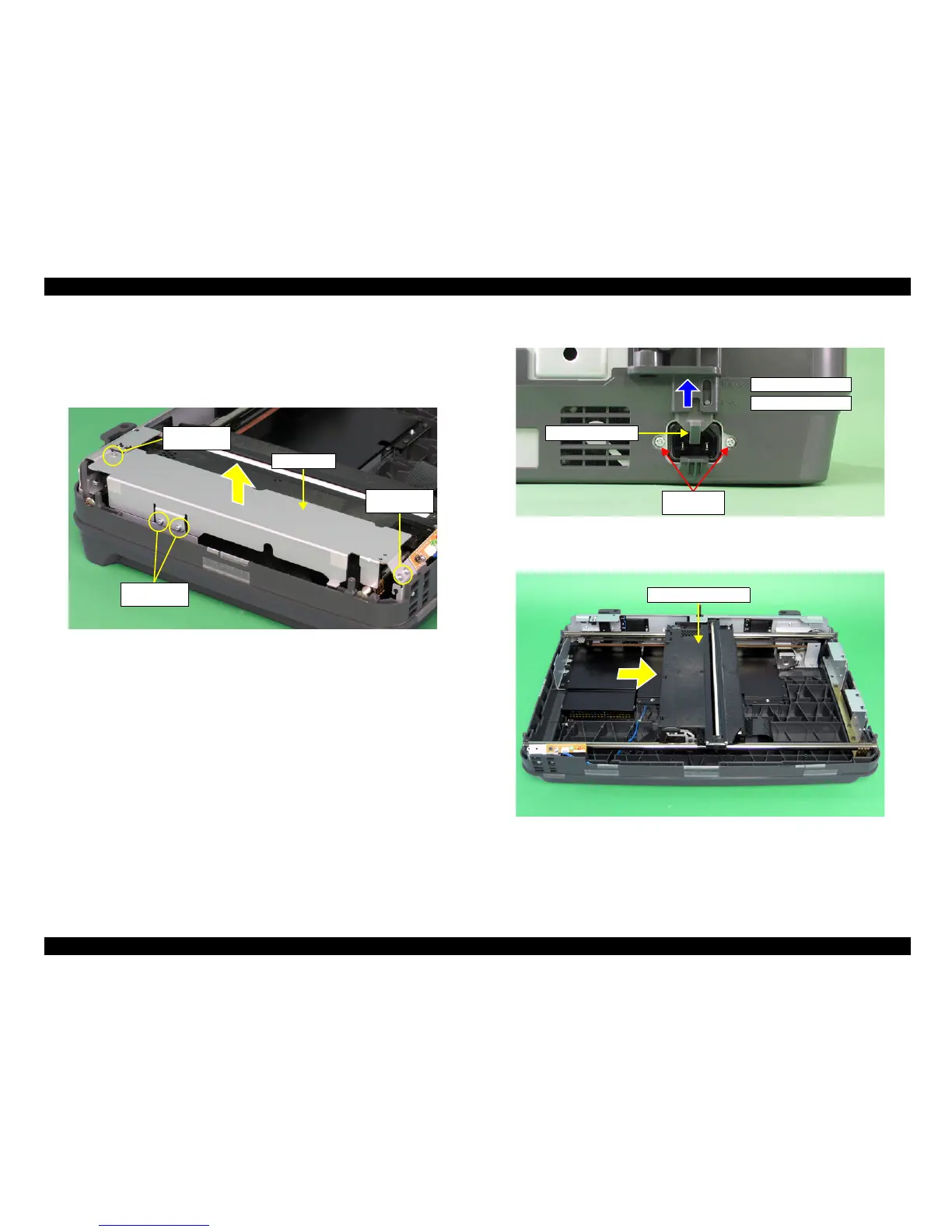

Figure 4-7. Removal of Shield Plate
3. Release the Carriage Lock.
Figure 4-8. Unlocking of Carriage Lock
4. Move the Carriage Unit to the center.
Figure 4-9. Movement of Carriage Unit
Shield Plate
M3x5
(100±20Ncm)
M3x5
(100±20Ncm)
M3x6
(100±20Ncm)
M3x8
(70±10Ncm)
Locking position
Unlocking position
Carriage Lock
Carriage Unit

Epson Expression 10000XL Specifications

Resolution

optical resolution	2400 dpi
maximum resolution with Micro Step Drive technology	2400 x 4800 dpi
interpolated resolution	12, 800 x 12, 800 dpi

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without optional unit	45W
power consumption operating with optional unit	55W
power consumption sleep mode without optional unit	6W

Operating Environment

operating temperature	41ºF to 95ºF (5ºC to 35ºC)
operating humidity	10% to 80% (no condensation)
storage humidity	10% to 85% (no condensation)

Interface and Connectivity

interface	USB 1.1/2.0, IEEE 1394 (FireWire), optional Ethernet
system compatibility	Windows 98SE, 2000 Me, XP; Macintosh OS 9.1 or later

Weight and Dimensions

maximum scan area	12.2" x 17.2" (310mm x 437mm)
width	25.8" (656mm)
depth	18.0" (458mm)
height	6.2" (158mm)
weight	28.7 lb (13 kg approx.)
