Epson Expression 10000XL Service Manual

Expression 10000XL Revision A
DISASSEMBLY/ASSEMBLY Overview 35

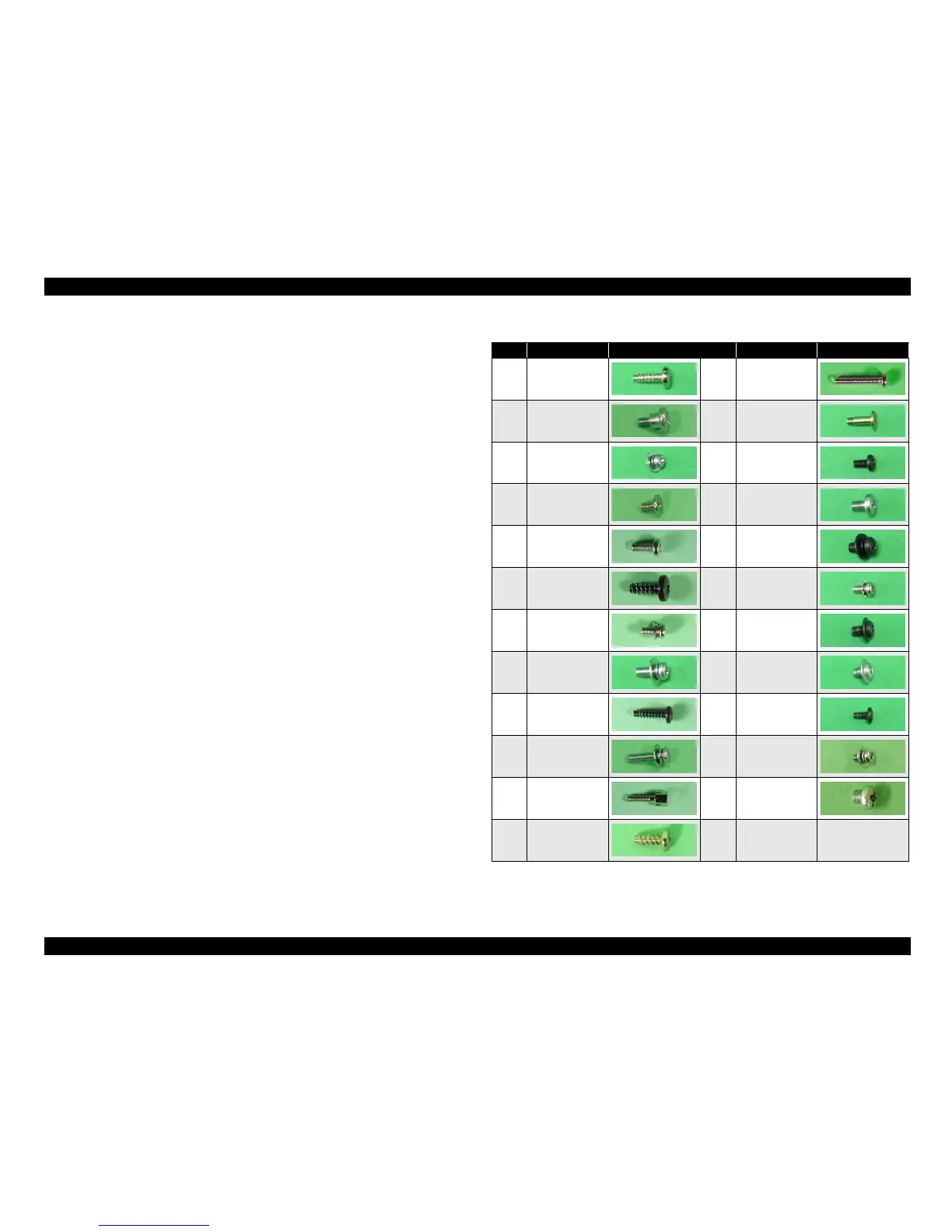

4.1.3 Screws Used in Disassembly and Reassembly
The screws used in this chapter are indicated below.When reassembling this product,
do the work after fully confirming the screw types and the number of screws to be used
in each section.(Refer to 4-2)
Table 4-2. List of Screws
No. Standard Outline No. Standard
1 CBP, M4x12
13
CB SCREW,
M3x18
2 M3x4
14
M3x10
3 CP (S-P1), M3x5
15
CB SCREW,
M3x6
4 M3x5
16
CB SCREW,
M4x6
5
CB SCREW,
M3x8
17
CP (S-P2), M4x8
6 CBP, M4x10
18
CP (O), M3x6
7 CP (S-P1), M3x6
19
CC SCREW,
M4x6
8
CP (S-P2),
M4x10
20
CC SCREW,
M4x5
9
CBP, M3x10
21
CBP, M3x6
10
CP (S-P2),
M3x12
22
CP (SP-1), M4x6
11
SCREW HSH,
M3x10
23
CP, M3x4
12
CBP, M3x8

Epson Expression 10000XL Specifications

Resolution

optical resolution	2400 dpi
maximum resolution with Micro Step Drive technology	2400 x 4800 dpi
interpolated resolution	12, 800 x 12, 800 dpi

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without optional unit	45W
power consumption operating with optional unit	55W
power consumption sleep mode without optional unit	6W

Operating Environment

operating temperature	41ºF to 95ºF (5ºC to 35ºC)
operating humidity	10% to 80% (no condensation)
storage humidity	10% to 85% (no condensation)

Interface and Connectivity

interface	USB 1.1/2.0, IEEE 1394 (FireWire), optional Ethernet
system compatibility	Windows 98SE, 2000 Me, XP; Macintosh OS 9.1 or later

Weight and Dimensions

maximum scan area	12.2" x 17.2" (310mm x 437mm)
width	25.8" (656mm)
depth	18.0" (458mm)
height	6.2" (158mm)
weight	28.7 lb (13 kg approx.)
