Epson Expression 10000XL Service Manual

Expression 10000XL Revision A
DISASSEMBLY/ASSEMBLY Disassembly Procedure 52
4.2.12 Disassembly of TPU
4.2.12.1 Removal of TPU Lower Housing
1. Release the TPU Carriage lock.

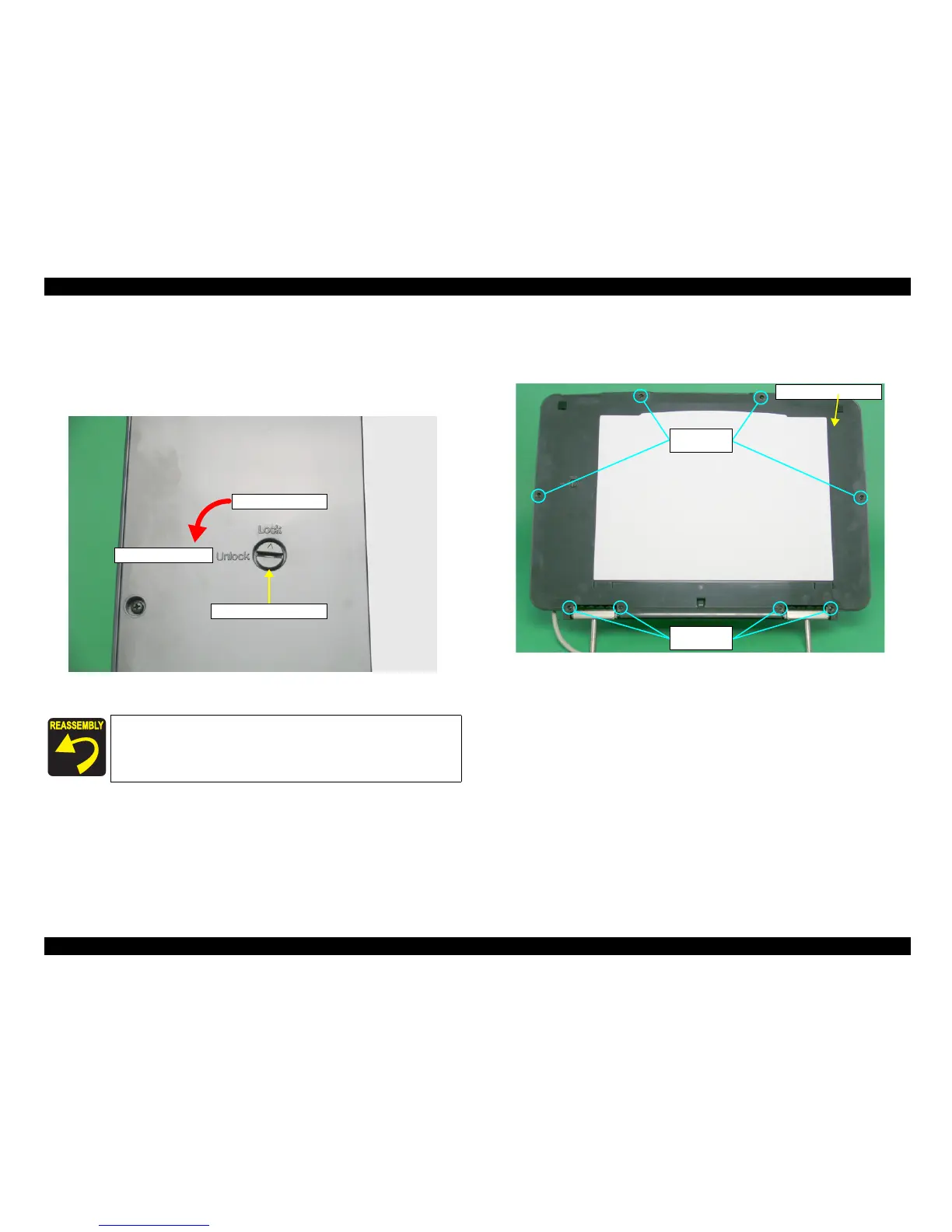

Figure 4-36. Release of TPU Carriage Lock
2. Remove the eight screws (CB SCREW, M3x6:4 pcs, CBP, M3x10:4 pcs) that are
securing the TPU Lower Housing.
3. Lift and remove the TPU Lower Housing.
Figure 4-37. Removal of TPU Lower Housing
After reinstalling the TPU Lower Housing, be sure to lock the TPU
Carriage Lock.
Locking position
Unlocking position
TPU Carriage Lock
M3x10
(50±10Ncm)
M3x6
(50±10Ncm)
TPU Lower Housing

Epson Expression 10000XL Specifications

Resolution

optical resolution	2400 dpi
maximum resolution with Micro Step Drive technology	2400 x 4800 dpi
interpolated resolution	12, 800 x 12, 800 dpi

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without optional unit	45W
power consumption operating with optional unit	55W
power consumption sleep mode without optional unit	6W

Operating Environment

operating temperature	41ºF to 95ºF (5ºC to 35ºC)
operating humidity	10% to 80% (no condensation)
storage humidity	10% to 85% (no condensation)

Interface and Connectivity

interface	USB 1.1/2.0, IEEE 1394 (FireWire), optional Ethernet
system compatibility	Windows 98SE, 2000 Me, XP; Macintosh OS 9.1 or later

Weight and Dimensions

maximum scan area	12.2" x 17.2" (310mm x 437mm)
width	25.8" (656mm)
depth	18.0" (458mm)
height	6.2" (158mm)
weight	28.7 lb (13 kg approx.)
