DISASSEMBLY/ASSEMBLY Disassembly Procedure 51
C A U T I O N

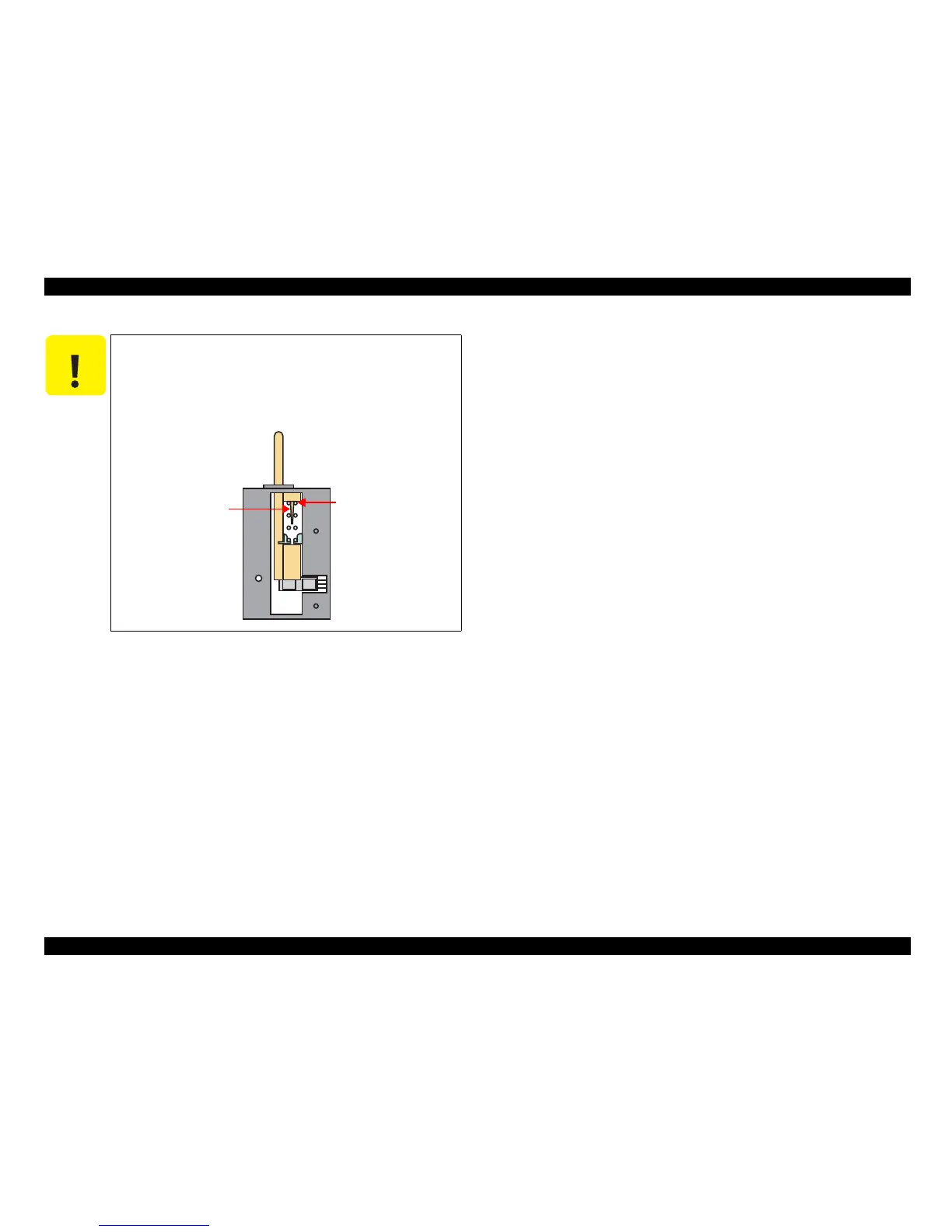

There is a compression spring behind the Open/Close Sensor Unit.
The compression spring may come off when operating the lever while
the Open/Close Sensor is removed from the frame. If this happens,
attach the compression spring correctly with reference to the figure
below.
Compression spring
Protrusion
