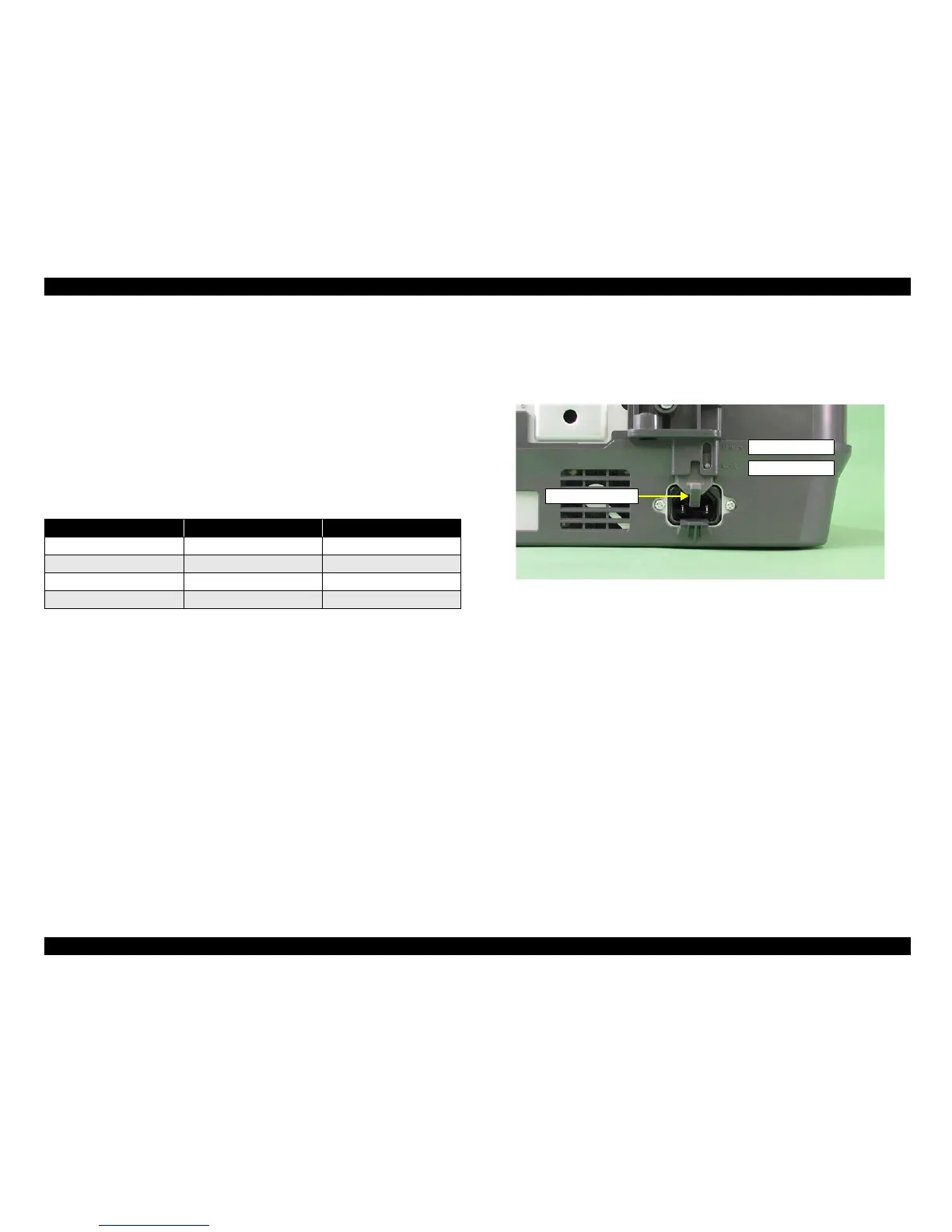

Expression 10000XL Revision A
PRODUCT DESCRIPTION Operational Specifications 18
1.4.3 Displays Specifications
The scanner has two LED lamps, each of which has the following functions.
READY (Green LED)
This LED is lit to indicate that a command or data can be sent or received. (During
Image scanning, the LED flashes as it is lit and extinguished alternatively according to
data transfer.)
At error, this LED flashes in conjunction with the ERROR LED.
ERROR (Red LED)
Lit, flashes or extinguished to indicate the error state of the scanner.
NOTE: Refer to Chapter 3 on how to recover from errors.
1.4.4 Carriage Lock
The Carriage Lock is built in the rear of the main unit to protect the Carriage Unit from
impacts during transportation or movement. This scanner requires the Carriage Lock to
be in the “UNLOCK” position to insert the Power Cable.
Figure 1-7. Carriage Lock
Table 1-3. Definitions of LED Indications
READY LED (Green) ERROR LED (Red) Error Definition
On On Command error
Off Flashing Communication error
Flashing Flashing Fatal error
On Off Option error
Unlock position
Carriage Lock
Lock position
