Epson Expression 10000XL Service Manual

Expression 10000XL Revision A
MAINTENANCE Overview 69
6.1.2 Lubrication
Lubrication is required when any part of the Carriage Unit of the scanner has been
replaced or the Carriage moves with noticeably large operation noise. The specified
grease is indicated in Table 6-1, and the lubrication points are shown in Figure 6-1.
Table 6-1. Specified Grease

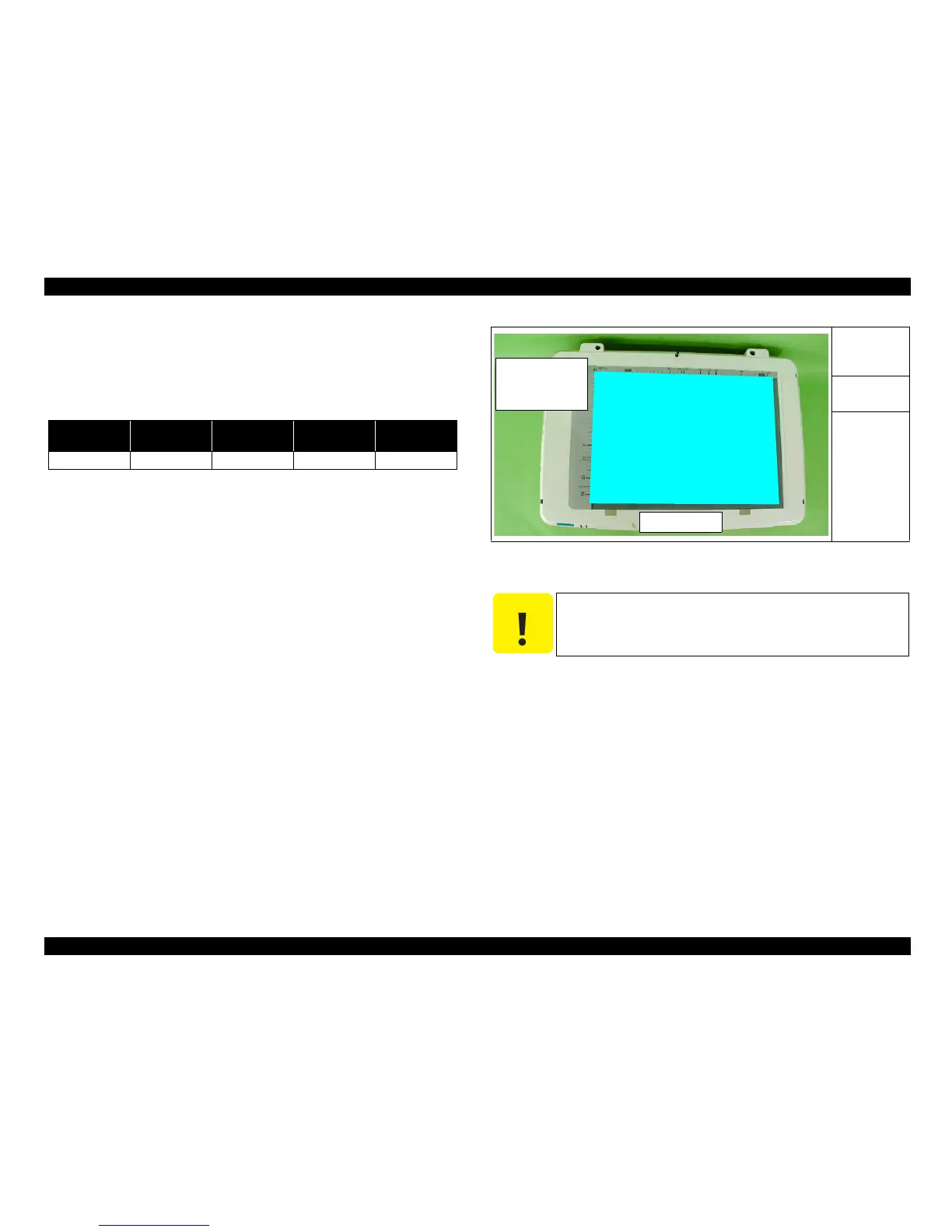

Figure 6-1. Lubrication Points
Type Name Part Number
Registration
Code
Supplier
Antifriction G-46 PD910 1039172 EPSON
<Lubrication
point>
Glass surface
<Oil type>
G-46
C A U T I O N
Note that a failure to strictly observe the specified amount of
application will contaminate the mechanisms or lead to a malfunction.
Dampen cotton
with G-46 and
apply it.
Glass surface

Epson Expression 10000XL Specifications

Resolution

optical resolution	2400 dpi
maximum resolution with Micro Step Drive technology	2400 x 4800 dpi
interpolated resolution	12, 800 x 12, 800 dpi

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption operating without optional unit	45W
power consumption operating with optional unit	55W
power consumption sleep mode without optional unit	6W

Operating Environment

operating temperature	41ºF to 95ºF (5ºC to 35ºC)
operating humidity	10% to 80% (no condensation)
storage humidity	10% to 85% (no condensation)

Interface and Connectivity

interface	USB 1.1/2.0, IEEE 1394 (FireWire), optional Ethernet
system compatibility	Windows 98SE, 2000 Me, XP; Macintosh OS 9.1 or later

Weight and Dimensions

maximum scan area	12.2" x 17.2" (310mm x 437mm)
width	25.8" (656mm)
depth	18.0" (458mm)
height	6.2" (158mm)
weight	28.7 lb (13 kg approx.)
