Epson Expression 10000XL

Expression 10000XL Revision A
DISASSEMBLY/ASSEMBLY Disassembly Procedure 37
4.2.1 Removal of Document Cover
1. Open the Document Cover.
2. Pull off and remove the Document Cover upward.

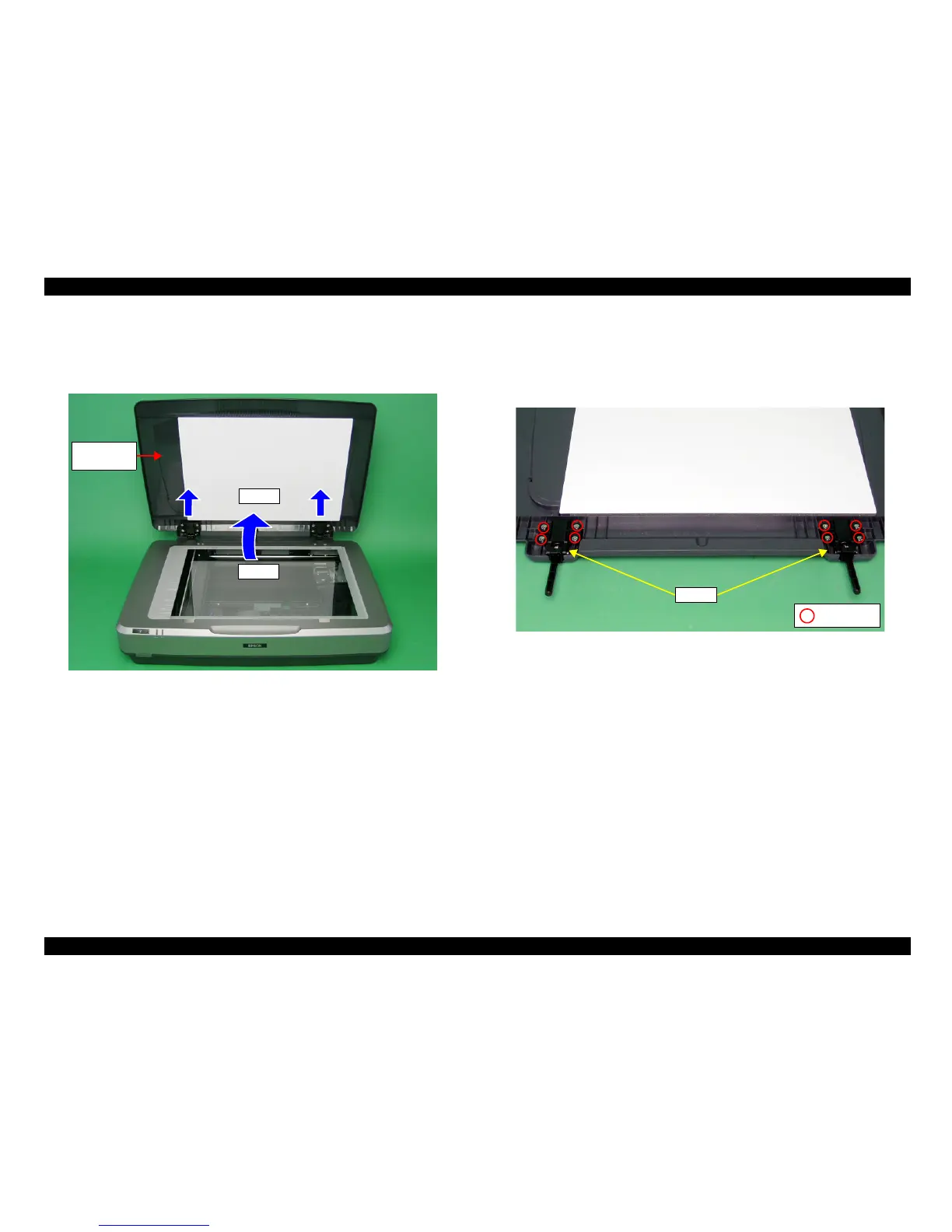

Figure 4-3. Removal of Document Cover
4.2.2 Removal of Hinges
1. Remove the Document Cover. (Refer to 4.2.1 Removal of Document Cover)
2. Remove the four screws (CBP M4 x 12) that are securing each of the Hinges, and
remove both Hinges.
Figure 4-4. Removal of Hinges
Document
Cover
Step 2
Step 1
Hinges
M4x12
(50±10Ncm)
